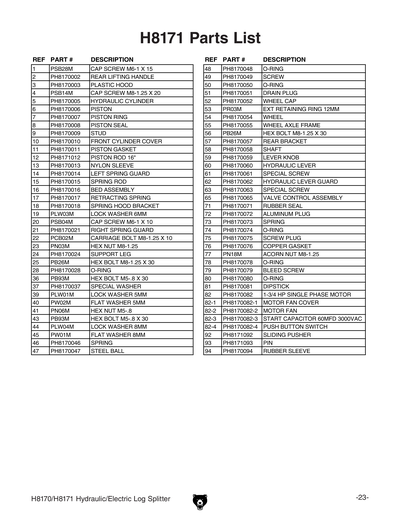

Parts for H8171 Hydraulic / Electric Log Splitter

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CAP SCREW M6-1 X 15
Price
N/A
2
*DISCD*REAR LIFTING HANDLE
Price
N/A
3
*DISCD*PLASTIC HOOD
Price
N/A
4
CAP SCREW M8-1.25 X 20
Price
N/A
5
*DISCD*HYDRAULIC CYLINDER
Price
N/A
5-1
*DISCD*PUMP REBUILD KIT H8170 AND H8171
Price
N/A
6
*DISCD*PISTON
Price
N/A
7
*DISCD*PISTON RING 5.5MM
Price
N/A
8
*DISCD*PISTON SEAL 25 X 3.55MM
Price
N/A
9
*DISCD*STUD-DE M10-1.5 X 383 34/34
Price
N/A
10
*DISCD*FRONT CYLINDER COVER
Price
N/A
11
*DISCD*PISTON GASKET
Price
N/A
12
*DISCD*PISTON ROD 16"
13
*DISCD*NYLON SLEEVE
Price
N/A
14
*DISCD*LEFT SPRING GUARD
Item is no longer available
Price
N/A
15
*DISCD*SPRING ROD
Price
N/A
16
*DISCD*BED ASSEMBLY
Item is no longer available
Price
N/A
17
*DISCD*RETRACTING SPRING
Item is no longer available
Price
N/A
18
*DISCD*SPRING HOOD BRACKET
Price
N/A
19
LOCK WASHER 6MM
Price
N/A
20
CAP SCREW M6-1 X 10
Price
N/A
21
*DISCD*RIGHT SPRING GUARD
Price
N/A
22
CARRIAGE BOLT M8-1.25 X 10
Price
N/A
23
Now: PN03M
HEX NUT M8-1.25
Price
N/A
24
*DISCD*SUPPORT LEG
Price
N/A
25
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
26
*DISCD*COMPLETE GEAR PUMP ASSEMBLY
Price
N/A
28
*DISCD*O-RING
Price
N/A
36
Now: PB93M
HEX BOLT M5-.8 X 30
Price
N/A
37
*DISCD*SEAL
Price
N/A
39
LOCK WASHER 5MM
Price
N/A
40
Now: PW02M
FLAT WASHER 5MM
Price
N/A
41
Now: PN06M
HEX NUT M5-.8
Price
N/A
43
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
44
LOCK WASHER 8MM
Price
N/A
45
Now: PW01M
FLAT WASHER 8MM
Price
N/A
46
*DISCD*COMPRESSION SPRING
Price
N/A
47
STEEL BALL 6MM
Price
N/A
48
*DISCD*O-RING
Price
N/A
49
*DISCD*SCREW
Price
N/A
50
*DISCD*O-RING
Price
N/A
51
*DISCD*DRAIN PLUG
Price
N/A
52
*DISCD*WHEEL CAP
Price
N/A
53
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
54
*DISCD*WHEEL
Price
N/A
55
*DISCD*WHEEL AXLE FRAME
Price
N/A
56
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
57
*DISCD*REAR BRACKET
Price
N/A
58
*DISCD*SHAFT
Price
N/A
59
*DISCD*LEVER KNOB
Price
N/A
60
*DISCD*HYDRAULIC LEVER
Price
N/A
61
*DISCD*HYDRAULIC LEVER SCREW
Price
N/A
62
*DISCD*HYDRAULIC LEVER GUARD
Price
N/A
63
*DISCD*LEVER GUARD SCREW
Price
N/A
65
*DISCD*VALVE CONTROL ASSEMBLY
Price
N/A
71
*DISCD*RUBBER SEAL
Price
N/A
72
*DISCD*ALUMINUM COVER
Price
N/A
73
*DISCD*COMPRESSION SPRING
Price
N/A
74
*DISCD*O-RING
Price
N/A
75
*DISCD*SCREW PLUG
Price
N/A
76
*DISCD*COPPER GASKET
Price
N/A
77
Now: PN18M
ACORN NUT M8-1.25
Price
N/A
78
*DISCD*O-RING
Price
N/A
79
*DISCD*BLEED SCREW
Price
N/A
80
*DISCD*O-RING
Price
N/A
81
*DISCD*DIPSTICK
Price
N/A
82

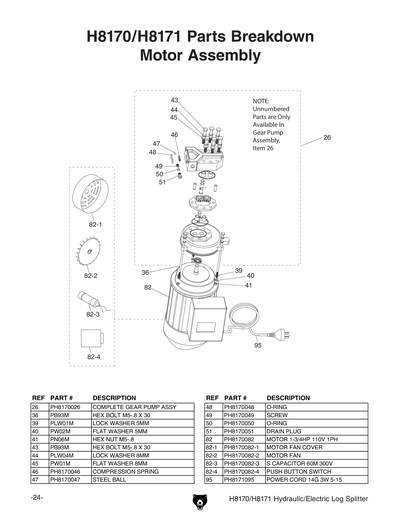

*DISCD*MOTOR 1-3/4HP 110V 1-HP
Price
N/A
82-1
*DISCD*MOTOR FAN COVER
Price
N/A
82-2
*DISCD*MOTOR FAN
Price
N/A
82-3
*DISCD*S CAPACITOR 60M 300V
Price
N/A
82-4
*DISCD*PUSH BUTTON SWITCH
Price
N/A
83

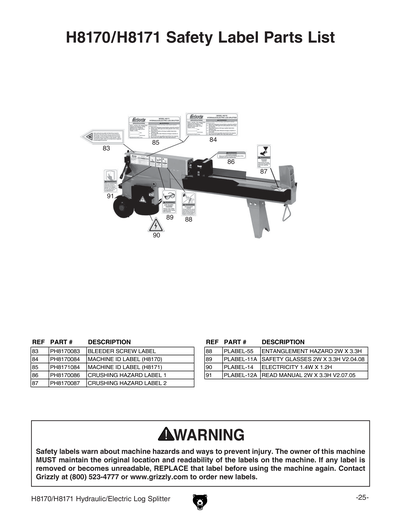

*DISCD*BLEEDER SCREW LABEL
Price
N/A
85
MACHINE ID LABEL
Item is no longer available
Price
N/A
86
*DISCD*CRUSHING HAZARD LABEL 1
Price
N/A
87
*DISCD*CRUSHING HAZARD LABEL 2
Price
N/A
88
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
89
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
90
ELECTRICITY 1.4W X 1.2H
Price
N/A
91
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
92
*DISCD*PIN
93
*DISCD*SLIDING PUSHER
94
*DISCD*RUBBER SLEEVE
Price
N/A
MAN
MANUAL FOR H8171 05/09
Item is no longer available
Price
N/A
