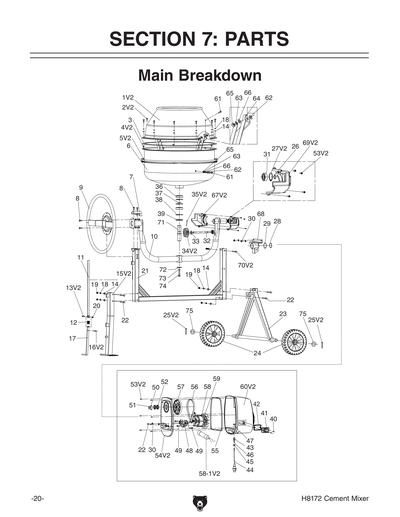

Parts for H8172 47-Gallon Heavy-Duty Cement Mixer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*UPPER DRUM V1
1V2
*DISCD*UPPER DRUM V2.05.12
2
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
2V2
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
3
*DISCD*RUBBER GASKET
4
FLAT HD SCR M8-1.25 X 10
Price
N/A
4V2
FLAT HD SCR M8-1.25 X 12
Price
N/A
5
*DISCD*BIG COGWHEEL V1
Item is no longer available
Price
N/A
5V2
*DISCD*BIG COGWHEEL V2.05.12
6
*DISCD*LOWER DRUM
7
*DISCD*UPPER BRACKET
8
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
9
*DISCD*TIPPING WHEEL
10
*DISCD*SUPPORT ARM
Item is no longer available
Price
N/A
11
*DISCD*UPPER PLUNGER ROD
12
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
13
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
13V2
Now: PB29M
HEX BOLT M6-1 X 30
Price
N/A
14
Now: PW01M
FLAT WASHER 8MM
Price
N/A
15
*DISCD*SUPPORT LEG V1
Item is no longer available
Price
N/A
15V2
*DISCD*SUPPORT LEG V2.05.12
16
*DISCD*COTTER PIN 4 X 20 V1
16V2
*DISCD*COTTER PIN 4 X 25 V2.05.12
17
*DISCD*LOWER PLUNGER ROD
18
LOCK WASHER 8MM
Price
N/A
19
Now: PN03M
HEX NUT M8-1.25
Price
N/A
20
LOCK NUT M6-1
Price
N/A
21
*DISCD*FRAME
22
HEX BOLT M8-1.25 X 70
Price
N/A
23
*DISCD*AXLE BRACKET
24
*DISCD*WHEEL
25
*DISCD*HAIR PIN COTTER PIN 3MM V1
25V2
COTTER PIN 5 X 40MM STANDARD
Price
N/A
26
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
27
Now: PR62M
EXT RETAINING RING 42MM
Price
N/A
27V2
Now: PR94M
EXT RETAINING RING 47MM
Price
N/A
28
*DISCD*CIRCLIP 42MM
Item is no longer available
Price
N/A
29
*DISCD*O-RING 42 X 2.65
30
LOCK NUT M8-1.25
Price
N/A
31
BALL BEARING 6202ZZ
Price
N/A
32
DRIVE SHAFT
32A
*DISCD*DRIVE SHAFT ASSEMBLY
33
*DISCD*SLEEVE
Item is no longer available
Price
N/A
34
*DISCD*DRIVE PINION V1
Item is no longer available
Price
N/A
34V2
*DISCD*DRIVE SHAFT ASSEMBLY
Price
N/A
35
*DISCD*LOCK PIN 6 X 30 V1
Item is no longer available
Price
N/A
35V2
LOCK PIN 5 X 40 V2.05.12
36
BALL BEARING 6206ZZ
Price
N/A
37
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
38
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
39
*DISCD*DUSTPROOF COVER
40
TAP SCREW M3.5 X 16
Price
N/A
41
*DISCD*SWITCH
Item is no longer available
Price
N/A
43
*DISCD*STRAIN RELIEF BOLT
Item is no longer available
Price
N/A
44
*DISCD*POWER CORD
Item is no longer available
Price
N/A
45
*DISCD*STRAIN RELIEF NUT
Item is no longer available
Price
N/A
46
*DISCD*STRAIN RELIEF RUBBER
Item is no longer available
Price
N/A
47
*DISCD*STRAIN RELIEF NUT
Item is no longer available
Price
N/A
48
*DISCD*MOTOR MOUNT BRACKET
49
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
50
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
51
*DISCD*CIRCLIP 30MM
Item is no longer available
Price
N/A
52
BALL BEARING 6906ZZ
Price
N/A
53
TAP SCREW M5 X 16
Price
N/A
53V2
TAP SCREW M4 X 16
Price
N/A
54
*DISCD*END PLATE V1
54V2
*DISCD*END PLATE V2.05.12
55
*DISCD*GASKET
Item is no longer available
Price
N/A
56
*DISCD*V-BELT 6PJ630
Item is no longer available
Price
N/A
57
*DISCD*IDLE PULLEY
58
*DISCD*MOTOR 1HP 110V 1-PH
Item is no longer available
Price
N/A
58-1
*DISCD*R CAP 30M 250V 1-3/8 X 3 -1/16
Item is no longer available
Price
N/A
58-1V2
*DISCD*R CAP 30M 250V 1-3/8 X 3 -1/16
Price
N/A
58-1V3
*DISCD*R CAP 30M 300V 1-3/8 X 3 V3.10.16
59
*DISCD*MOTOR FAN
60
*DISCD*MOTOR COVER V1
Item is no longer available
Price
N/A
60V2
*DISCD*MOTOR COVER V2.05.12
61
Now: PS35M
PHLP HD SCR M10-1.5 X 20
Price
N/A
62
*DISCD*PVC WASHER 10MM
63
LOCK WASHER 10MM
Price
N/A
64
*DISCD*MIXING BLADE
65
Now: PN02M
HEX NUT M10-1.5
Price
N/A
66
Now: PW04M
FLAT WASHER 10MM
Price
N/A
67
*DISCD*SHORT GEAR GUARD V1
Item is no longer available
Price
N/A
67V2
*DISCD*SHORT GEAR GUARD V2.05.12
Item is no longer available
Price
N/A
68
*DISCD*BEARING BLOCK
69
*DISCD*GEAR GUARD V1
Item is no longer available
Price
N/A
69V2
*DISCD*GEAR GUARD V2.05.12
Item is no longer available
Price
N/A
70
HEX BOLT M8-1.25 X 70
Price
N/A
70V2
Now: PB86M
HEX BOLT M8-1.25 X 65
Price
N/A
71
*DISCD*FIXED SHAFT
Item is no longer available
Price
N/A
72
Now: PW28M
FLAT WASHER 13MM
Price
N/A
73
LOCK WASHER 12MM
Price
N/A
74
Now: PB75M
HEX BOLT M12-1.75 X 35
Price
N/A
75
*DISCD*FLAT WASHER 26MM
Item is no longer available
Price
N/A

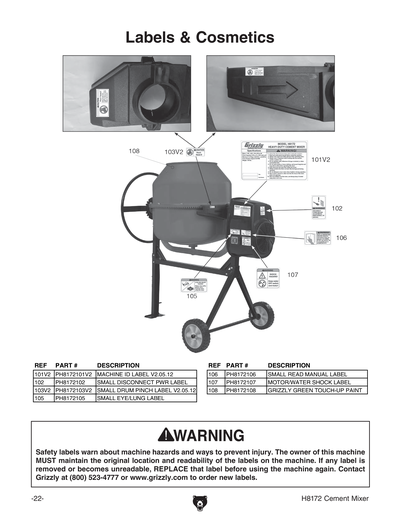

101
MACHINE ID LABEL V1
Item is no longer available
Price
N/A
101V2
MACHINE ID LABEL V2.05.12
102
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
103
*DISCD*SMALL DRUM PINCH LABEL V1
Item is no longer available
Price
N/A
103V2
*DISCD*SMALL DRUM PINCH LABEL V2.05.12
Item is no longer available
Price
N/A
104
*DISCD*LARGE DRUM PINCH LABEL
Item is no longer available
Price
N/A
105
GLASSES/RESPIRATOR 2.8W X 1.5H
Price
N/A
106
READ MANUAL 2.8W X 1.5H
Price
N/A
107
MOTOR/WATER SHOCK LABEL
108
N/S GRIZZLY GREEN G1023S
Price
N/A
