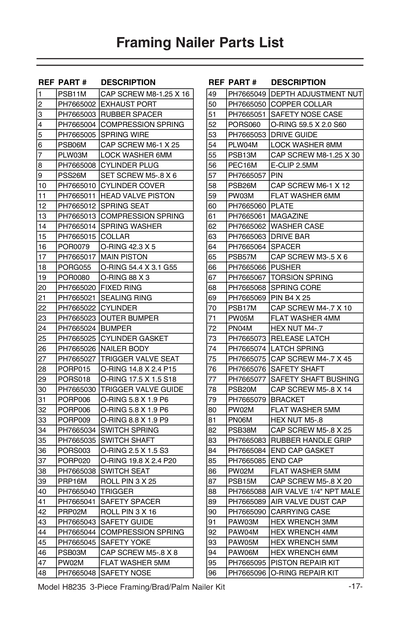

Parts for H8235 - Framing, Brad and Palm Nailer Kit

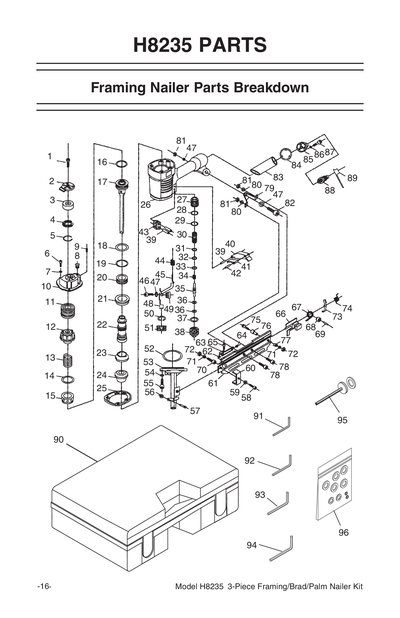

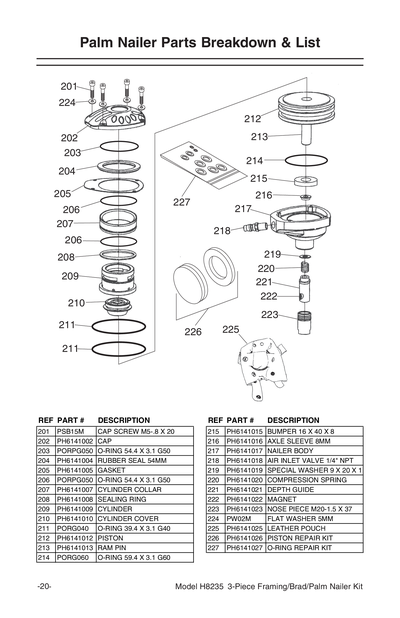

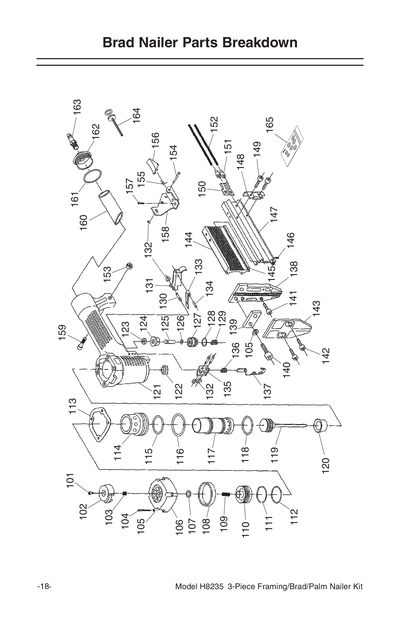

Part Diagram for H8235
Part Diagram for H8235
Part Diagram for H8235
Part Diagram for H8235
Part Diagram for H8235
Part Diagram for H8235
Part Diagram for H8235
Part Diagram for H8235
Part Diagram for H8235
Part Diagram for H8235

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
CAP SCREW M8-1.25 X 16
Price
N/A
2
*DISCD* AIR DEFLECTOR
Price
N/A
3
*DISCD* DEFLECTOR RUBBER
Price
N/A
4
*DISCD* COMPRESSION SPRING
Price
N/A
5
*DISCD* SPRING WIRE
Price
N/A
6
CAP SCREW M6-1 X 25
Price
N/A
7
LOCK WASHER 6MM
Price
N/A
8
*DISCD* CYLINDER CORE
Price
N/A
9
SET SCREW M5-.8 X 6
Price
N/A
10
*DISCD* CYLINDER COVER
Price
N/A
11
*DISCD* HEAD VALVE PISTON
Price
N/A
12
*DISCD* SPRING SEAT
Price
N/A
13
*DISCD* COMPRESSION SPRING
Price
N/A
14
*DISCD* HEAD VALVE PISTON
Price
N/A
15
*DISCD* COLLAR
Price
N/A
16
O-RING 42.3 X 5
Price
N/A
17
*DISCD* MAIN PISTON
Price
N/A
18
O-RING 49.4 X 3.1 G50
Price
N/A
19
O-RING 88 X 3
Price
N/A
20
*DISCD* FIXED RING
Price
N/A
21
*DISCD* SEALING RING
Price
N/A
22
*DISCD* CYLINDER
Price
N/A
23
*DISCD* BUMPER OUTER LANE
Price
N/A
24
*DISCD* BUMPER
Price
N/A
25
*DISCD* CYLINDER WASHER
Price
N/A
26
*DISCD* GUN BODY
Price
N/A
27
*DISCD* TRIGGER VALVE SEAT
Price
N/A
28
O-RING 14.8 X 2.4 P15
Price
N/A
29
O-RING 17.5 X 1.5 S18
Price
N/A
30
*DISCD* TRIGGER VALVE GUIDE
Price
N/A
31
O-RING 5.8 X 1.9 P6
Price
N/A
32
O-RING 5.8 X 1.9 P6
Price
N/A
33
O-RING 8.8 X 1.9 P9
Price
N/A
34
*DISCD* SWITCH SPRING
Price
N/A
35
*DISCD* SWITCH PIPE
Price
N/A
36
O-RING 2.5 X 1.5 S3
Price
N/A
37
O-RING 19.8 X 2.4 P20
Price
N/A
38
*DISCD* SWITCH SEAT
Price
N/A
39
ROLL PIN 3 X 25
Price
N/A
40
*DISCD* TRIGGER
Price
N/A
41
*DISCD* SAFETY SPACER
Price
N/A
42
ROLL PIN 3 X 16
Price
N/A
43
*DISCD* SAFETY GUIDE
Price
N/A
44
*DISCD* COMPRESSION SPRING
Price
N/A
45
*DISCD* SAFETY YOKE
Price
N/A
46
CAP SCREW M5-.8 X 8
Price
N/A
47
FLAT WASHER 5MM
Price
N/A
48
*DISCD* SAFETY NOSE
Price
N/A
49
*DISCD* DEPTH ADJUSTMENT NUT
Price
N/A
50
*DISCD* COLLAR
Price
N/A
51
*DISCD* SAFETY NOSE CASE
Price
N/A
52
O-RING 59.5 X 2.0 S60
Price
N/A
53
*DISCD* DRIVE GUIDE
Price
N/A
54
LOCK WASHER 8MM
Price
N/A
55
CAP SCREW M8-1.25 X 30
Price
N/A
56
E-CLIP 2.5MM
Price
N/A
57
*DISCD* PIN
Price
N/A
58
CAP SCREW M6-1 X 12
Price
N/A
59
FLAT WASHER 6MM
Price
N/A
60
*DISCD* PLATE
Price
N/A
61
*DISCD* MAGAZINE
Price
N/A
62
*DISCD*WASHER CASE
Price
N/A
63
*DISCD* DRIVE NAIL BAR
Price
N/A
64
*DISCD* SPACER
Price
N/A
65
CAP SCREW M3-.5 X 6
Price
N/A
66
*DISCD* PUSHER
Price
N/A
67
*DISCD* TORSION SPRING
Price
N/A
68
*DISCD* SPRING CORE
Price
N/A
69
*DISCD* PIN B4 X 25
Price
N/A
70
CAP SCREW M4-.7 X 10
Price
N/A
71
FLAT WASHER 4MM
Price
N/A
72
HEX NUT M4-.7
Price
N/A
73
*DISCD* RELEASE LATCH
Price
N/A
74
*DISCD* LATCH SPRING
Price
N/A
75
CAP SCREW M4-.7 X 40
Price
N/A
76
*DISCD* SAFETY PIPE
Price
N/A
77
*DISCD* SAFETY PIPE CASE
Price
N/A
78
CAP SCREW M5-.8 X 14
Price
N/A
79
*DISCD* FIXED SEAT
Price
N/A
80
FLAT WASHER 5MM
Price
N/A
81
HEX NUT M5-.8
Price
N/A
82
CAP SCREW M5-.8 X 25
Price
N/A
83
*DISCD* RUBBER HANDLE CASE
Price
N/A
84
*DISCD* END CAP WASHER
Price
N/A
85
*DISCD* END CAP
Price
N/A
86
FLAT WASHER 5MM
Price
N/A
87
CAP SCREW M5-.8 X 20
Price
N/A
88
*DISCD* AIR PLUG 1/4" NPT MALE
Price
N/A
89
*DISCD* AIR PLUG DUST CAP
Price
N/A
90
*DISCD* CARRYING CASE
Price
N/A
91
HEX WRENCH 3MM
Price
N/A
92
HEX WRENCH 4MM
Price
N/A
93
HEX WRENCH 5MM
Price
N/A
94
HEX WRENCH 6MM
Price
N/A
95
*DISCD* PISTON REPAIR KIT
Price
N/A
96
*DISCD*O-RING REPAIR KIT
Item is no longer available
Price
N/A
101
*DISCD*EXHAUST PORT BOLT
Price
$1.49
102
*DISCD*EXHAUST PORT
Item is no longer available
Price
N/A
103
*DISCD*COMPRESSION SPRING
Price
$1.49
104
HEX BOLT M5-.8 X 20
Price
N/A
105
LOCK WASHER 5MM
Price
N/A
106
*DISCD*CYLINDER CAP
Price
$2.05
107
O-RING 13.8 X 2.4 P14
Price
N/A
108
*DISCD*SEALING RING
Item is no longer available
Price
N/A
109
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
110
*DISCD*PLUNGER
Price
$1.49
111
O-RING 31.0 X 2.0 S31.5
Price
N/A
112
O-RING 24.7 X 3.5 P25
Price
N/A
113
*DISCD*CYLINDER CAP GASKET
Item is no longer available
Price
N/A
114
*DISCD*CYINDER SLEEVE
Item is no longer available
Price
N/A
115
O-RING 29.2 X 3.5 P29.5
Price
N/A
116
O-RING 2.0 X 41.5 S42
Price
N/A
117
*DISCD*CYLINDER
Item is no longer available
Price
N/A
118
O-RING 21.8 X 2.4 P22
Price
N/A
119
*DISCD*PISTON W/DRIVER
Item is no longer available
Price
N/A
120
*DISCD*BUMPER
Item is no longer available
Price
N/A
121
*DISCD*NAILER BODY
Item is no longer available
Price
N/A
122
*DISCD*RUBBER WASHER
Item is no longer available
Price
N/A
123
*DISCD*SEAL
Item is no longer available
Price
N/A
124
*DISCD*INNER VALVE SEAT
Item is no longer available
Price
N/A
125
*DISCD*TRIGGER VALVE
Item is no longer available
Price
N/A
126
O-RING 11 X 2.4 P11.2
Price
N/A
127
*DISCD*TRIGGER VALVE GUIDE
Item is no longer available
Price
N/A
128
O-RING 11 X 2.4 P11.2
Price
N/A
129
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
130
*DISCD*STEP PIN
Item is no longer available
Price
N/A
131
*DISCD*TRIGGER
Item is no longer available
Price
N/A
132
E-CLIP 3MM
Price
N/A
133
*DISCD*SAFETY PLATE
Item is no longer available
Price
N/A
134
*DISCD*PIN
Item is no longer available
Price
N/A
135
*DISCD*BRACKET
Item is no longer available
Price
N/A
136
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
137
*DISCD*SAFETY NOSE
Item is no longer available
Price
N/A
138
*DISCD*DRIVER GUIDE
Item is no longer available
Price
N/A
139
*DISCD*SPACER
Item is no longer available
Price
N/A
140
CAP SCREW M5-.8 X 20
Price
N/A
141
CAP SCREW M4-.7 X 12
Price
N/A
142
CAP SCREW M4-.7 X 10
Price
N/A
143
*DISCD*DRIVER GUIDE COVER
Item is no longer available
Price
N/A
144
*DISCD*NAIL GUIDE LINER
Item is no longer available
Price
N/A
145
*DISCD*MAGAZINE SEAT
Item is no longer available
Price
N/A
146
SET SCREW M4-.7 X 16
Price
N/A
147
*DISCD*MAGAZINE CAP
Item is no longer available
Price
N/A
148
*DISCD*BRACKET
Item is no longer available
Price
N/A
149
CAP SCREW M4-.7 X 14
Price
N/A
150
*DISCD*PUSHER
Item is no longer available
Price
N/A
151
*DISCD*PUSHER SHAFT
Item is no longer available
Price
N/A
152
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
153
LOCK NUT M4-.7
Price
N/A
154
*DISCD*PIN
Item is no longer available
Price
N/A
155
*DISCD*LATCH TORSION SPRING
Item is no longer available
Price
N/A
156
*DISCD*LATCH
Item is no longer available
Price
N/A
157
CAP SCREW M4-.7 X 8
Price
N/A
158
*DISCD*LATCH BRACKET
Item is no longer available
Price
N/A
159
CAP SCREW M4-.7 X 16
Price
N/A
160
*DISCD*RUBBER HAND GRIP
Item is no longer available
Price
N/A
161
O-RING 35.7 X 3.5 P36
Price
N/A
162
*DISCD*CAP
Price
$2.25
163
*DISCD*AIR VALVE 1/4 NPT
Item is no longer available
Price
N/A
164
*DISCD*PISTON REPAIR KIT
Item is no longer available
Price
N/A
165
*DISCD*O-RING REPAIR KIT
Price
$3.45
201
CAP SCREW M5-.8 X 20
Price
N/A
202
CAP
Price
N/A
203
O-RING 49.4 X 3.1 G50
Price
N/A
204
*DISCD* RUBBER SEAL 54MM
Price
N/A
205
*DISCD* GASKET
Price
N/A
206
O-RING 49.4 X 3.1 G50
Price
N/A
207
*DISCD* CYLINDER COLLAR
Price
N/A
208
*DISCD* SEALING RING
Price
N/A
209
*DISCD* CYLINDER
Price
N/A
210
*DISCD*CYLINDER COVER
Price
N/A
211
O-RING 39.4 X 3.1 G40
Price
N/A
212
PISTON
Price
N/A
213
*DISCD* PISTION/RAM PIN
Price
N/A
214
O-RING 59.4 X 3.1 G60
Price
N/A
215
*DISCD* BUMPER 16 X 40 X 2.6
Price
N/A
216
*DISCD* AXLE SLEEVE 8MM
Price
N/A
217
HOUSING
Price
N/A
218
AIR INLET PLUG 1/4" NPT
Price
N/A
219
FLAT WASHER 8MM
Price
N/A
220
COMPRESSION SPRING
Price
N/A
221
DEPTH GUIDE
Price
N/A
222
*DISCD* MAGNET
Price
N/A
223
*DISCD* NOSE PIECE M20-1.5 X 37
Price
N/A
224
FLAT WASHER 5MM
Price
N/A
225
*DISCD*LEATHER POUCH
Price
N/A
226
PISTON REPAIR KIT
Price
N/A
227
O-RING REPAIR KIT
Price
N/A
