Parts for H8236 Brad Nailer / Stapler Kit

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

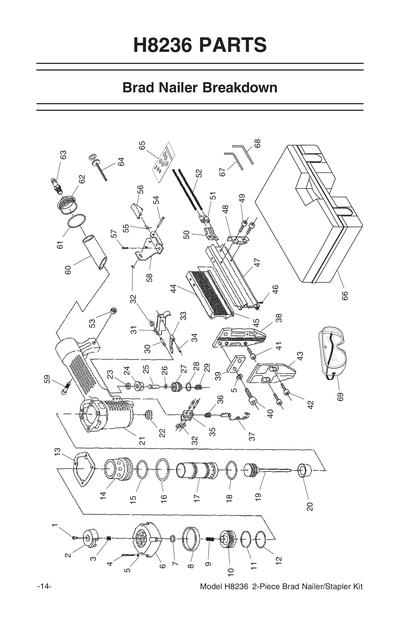

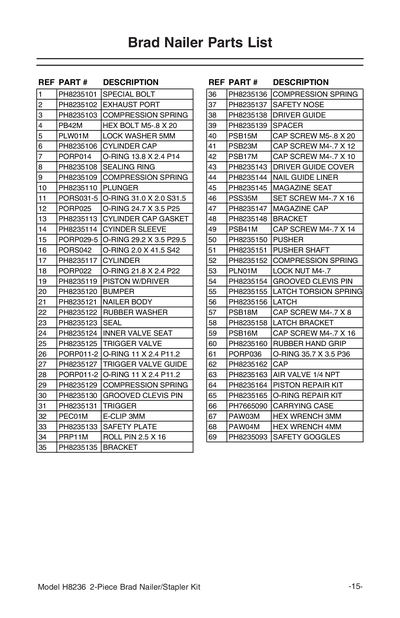

1
*DISCD*EXHAUST PORT BOLT
Price
N/A
2
*DISCD*EXHAUST PORT
Price
N/A
3
*DISCD*COMPRESSION SPRING
Price
N/A
4
Now: PB42M
HEX BOLT M5-.8 X 20
Price
N/A
5
LOCK WASHER 5MM
Price
N/A
6
*DISCD*CYLINDER CAP
Price
N/A
7
O-RING 13.8 X 2.4 P14
Price
N/A
8
*DISCD*SEALING RING
Price
N/A
9
*DISCD*COMPRESSION SPRING
Price
N/A
10
*DISCD*PLUNGER
Price
N/A
11
O-RING 31.0 X 2.0 S31.5
Price
N/A
12
O-RING 24.7 X 3.5 P25
Price
N/A
13
*DISCD*CYLINDER CAP GASKET
Price
N/A
14
*DISCD*CYINDER SLEEVE
Price
N/A
15
O-RING 29.2 X 3.5 P29.5
Price
N/A
16
O-RING 2.0 X 41.5 S42
Price
N/A
17
*DISCD*CYLINDER
Price
N/A
18
O-RING 21.8 X 2.4 P22
Price
N/A
19
*DISCD*PISTON W/DRIVER
Price
N/A
20
*DISCD*BUMPER
Price
N/A
21
*DISCD*NAILER BODY
Price
N/A
22
*DISCD*RUBBER WASHER
Price
N/A
23
*DISCD*SEAL
Price
N/A
24
*DISCD*INNER VALVE SEAT
Price
N/A
25
*DISCD*TRIGGER VALVE
Price
N/A
26
O-RING 11 X 2.4 P11.2
Price
N/A
27
*DISCD*TRIGGER VALVE GUIDE
Price
N/A
28
O-RING 11 X 2.4 P11.2
Price
N/A
29
*DISCD*COMPRESSION SPRING
Price
N/A
30
*DISCD*STEP PIN
Price
N/A
31
*DISCD*TRIGGER
Price
N/A
32
E-CLIP 3MM
Price
N/A
33
*DISCD*SAFETY PLATE
Price
N/A
34
ROLL PIN 2.5 X 16
Price
N/A
35
*DISCD*BRACKET
Price
N/A
36
*DISCD*COMPRESSION SPRING
Price
N/A
37
*DISCD*SAFETY NOSE
Price
N/A
38
*DISCD*DRIVER GUIDE
Price
N/A
39
*DISCD*SPACER
Price
N/A
40
CAP SCREW M5-.8 X 20
Price
N/A
41
CAP SCREW M4-.7 X 12
Price
N/A
42
CAP SCREW M4-.7 X 10
Price
N/A
43
*DISCD*DRIVER GUIDE COVER
Price
N/A
44
*DISCD*NAIL GUIDE LINER
Price
N/A
45
*DISCD*MAGAZINE SEAT
Price
N/A
46
SET SCREW M4-.7 X 16
Price
N/A
47
*DISCD*MAGAZINE CAP
Price
N/A
48
*DISCD*BRACKET
Price
N/A
49
CAP SCREW M4-.7 X 14
Price
N/A
50
*DISCD*PUSHER
Price
N/A
51
*DISCD*PUSHER SHAFT
Price
N/A
52
*DISCD*COMPRESSION SPRING
Price
N/A
53
LOCK NUT M4-.7
Price
N/A
54
*DISCD*PIN
Price
N/A
55
*DISCD*LATCH TORSION SPRING
Price
N/A
56
*DISCD*LATCH
Price
N/A
57
CAP SCREW M4-.7 X 8
Price
N/A
58
*DISCD*LATCH BRACKET
Price
N/A
59
CAP SCREW M4-.7 X 16
Price
N/A
60
*DISCD*RUBBER HAND GRIP
Price
N/A
61
O-RING 35.7 X 3.5 P36
Price
N/A
62
*DISCD*CAP
Price
N/A
63
*DISCD*AIR VALVE 1/4 NPT
Price
N/A
64
*DISCD*PISTON REPAIR KIT
Price
N/A
65
*DISCD*O-RING REPAIR KIT
Price
N/A
66
*DISCD* CARRYING CASE
Price
N/A
67
HEX WRENCH 3MM
Price
N/A
68
HEX WRENCH 4MM
Price
N/A
69
HEX WRENCH 5MM
Price
N/A

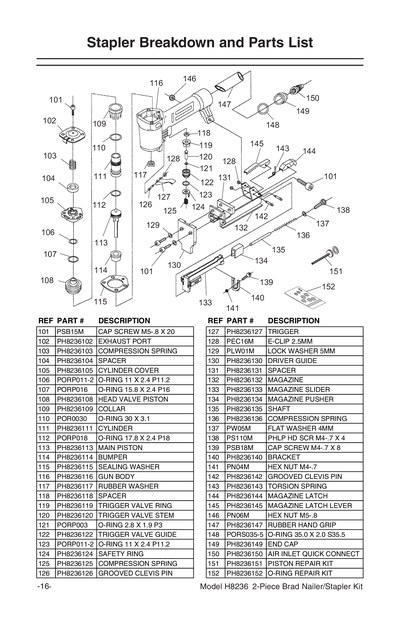

101
CAP SCREW M5-.8 X 20
Price
N/A
102
EXHAUST PORT
Item is no longer available
Price
N/A
103
COMPRESSION SPRING
Item is no longer available
Price
N/A
104
SPACER
Item is no longer available
Price
N/A
105
CYLINDER COVER
Item is no longer available
Price
N/A
106
O-RING 11 X 2.4 P11.2
Price
N/A
107
O-RING 15.8 X 2.4 P16
Price
N/A
108
HEAD VALVE PISTON
Item is no longer available
Price
N/A
109
*DISCD* COLLAR
110
O-RING 30 X 3.1
Price
N/A
111
CYLINDER
Item is no longer available
Price
N/A
112
O-RING 17.8 X 2.4 P18
Price
N/A
113
MAIN PISTON
114
*DISCD* BUMPER
115
SEALING WASHER
Item is no longer available
Price
N/A
116
GUN BODY
Item is no longer available
Price
N/A
117
RUBBER WASHER
Item is no longer available
Price
N/A
118
SPACER
Item is no longer available
Price
N/A
119
TRIGGER VALVE RING
Item is no longer available
Price
N/A
120
TRIGGER VALVE STEM
Item is no longer available
Price
N/A
121
O-RING 2.8 X 1.9 P3
Price
N/A
122
TRIGGER VALVE GUIDE
Item is no longer available
Price
N/A
123
O-RING 11 X 2.4 P11.2
Price
N/A
124
SAFETY RING
Item is no longer available
Price
N/A
125
COMPRESSION SPRING
Item is no longer available
Price
N/A
126
GROOVED CLEVIS PIN
Item is no longer available
Price
N/A
127
*DISCD* TRIGGER
128
E-CLIP 2.5MM
Price
N/A
129
LOCK WASHER 5MM
Price
N/A
130
DRIVER GUIDE
Item is no longer available
Price
N/A
131
SPACER
Item is no longer available
Price
N/A
132
MAGAZINE
Item is no longer available
Price
N/A
133
MAGAZINE SLIDER
Item is no longer available
Price
N/A
134
MAGAZINE PUSHER
Item is no longer available
Price
N/A
135
SHAFT
Item is no longer available
Price
N/A
136
COMPRESSION SPRING
Item is no longer available
Price
N/A
137
Now: PW05M
FLAT WASHER 4MM
Price
N/A
138
PHLP HD SCR M4-.7 X 4
Price
N/A
139
CAP SCREW M4-.7 X 8
Price
N/A
140
BRACKET
Item is no longer available
Price
N/A
141
Now: PN04M
HEX NUT M4-.7
Price
N/A
142
GROOVED CLEVIS PIN
Item is no longer available
Price
N/A
143
TORSION SPRING
Item is no longer available
Price
N/A
144
MAGAZINE LATCH
Item is no longer available
Price
N/A
145
MAGAZINE LATCH LEVER
Item is no longer available
Price
N/A
146
Now: PN06M
HEX NUT M5-.8
Price
N/A
147
RUBBER HAND GRIP
Item is no longer available
Price
N/A
148
O-RING 35.0 X 2.0 S35.5
Price
N/A
149
END CAP
Item is no longer available
Price
N/A
150
AIR INLET QUICK CONNECT
Item is no longer available
Price
N/A
151
PISTON REPAIR KIT
Item is no longer available
Price
N/A
152
*DISCD* O-RING REPAIR KIT
