Parts for H8259 10" x 18" Benchtop Wood Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

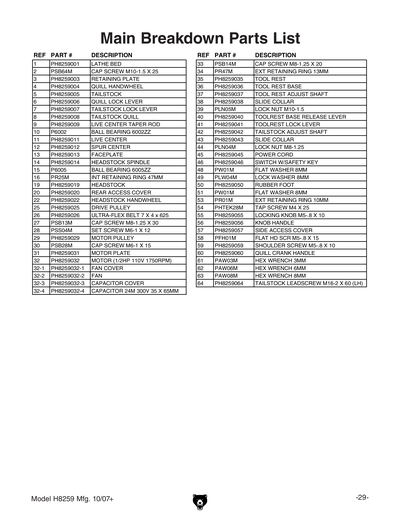

1

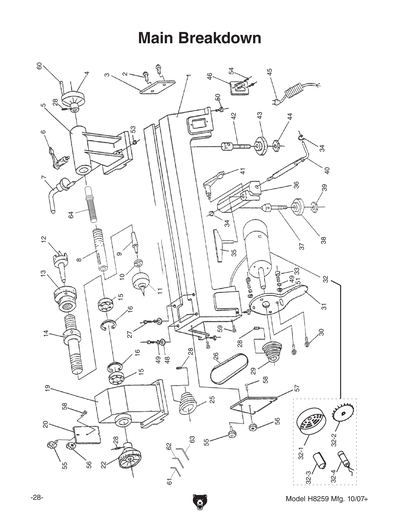

LATHE BED
2
CAP SCREW M10-1.5 X 25
Price
N/A
3
RETAINING PLATE
Item is no longer available
Price
N/A
4
QUILL HANDWHEEL
5
TAILSTOCK
6
QUILL LOCK LEVER
7
TAILSTOCK LOCK LEVER
8
TAILSTOCK QUILL
9
LIVE CENTER TAPER ROD
10
BALL BEARING 6002ZZ
Price
N/A
11
LIVE CENTER
12
SPUR CENTER
13
FACEPLATE
14
HEADSTOCK SPINDLE
15
BALL BEARING 6005ZZ
Price
N/A
16
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
19
HEADSTOCK
20
REAR ACCESS COVER
22
HEADSTOCK HANDWHEEL
25
DRIVE PULLEY
26
ULTRA-FLEX BELT 7 X 4 X 625
27
CAP SCREW M8-1.25 X 30
Price
N/A
28
SET SCREW M6-1 X 12
Price
N/A
29
MOTOR PULLEY
30
CAP SCREW M6-1 X 15
Price
N/A
31
MOTOR PLATE
32
MOTOR 1/2HP 110V 1-PH
32-1
FAN COVER
32-2
FAN
32-3
CAPACITOR COVER
32-4
R CAPACITOR 24M 300V 1-3/8 X 2-9/16
33
CAP SCREW M8-1.25 X 20
Price
N/A
34
Now: PR47M
EXT RETAINING RING 13MM
Price
N/A
35
TOOL REST
36
TOOL REST BASE
37
TOOL REST ADJUST SHAFT
38
SLIDE COLLAR
39
LOCK NUT M10-1.5
Price
N/A
40
TOOLREST BASE RELEASE LEVER
41
TOOLREST LOCK LEVER
42
TAILSTOCK ADJUST SHAFT
43
SLIDE COLLAR
44
LOCK NUT M8-1.25
Price
N/A
45
POWER CORD
Item is no longer available
Price
N/A
46
SWITCH W/SAFETY KEY
48
Now: PW01M
FLAT WASHER 8MM
Price
N/A
49
LOCK WASHER 8MM
Price
N/A
50
RUBBER FOOT
51
Now: PW01M
FLAT WASHER 8MM
Price
N/A
53
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
54
TAP SCREW M4 X 25
Price
N/A
55
LOCK KNOB M5-.8 X 10
56
KNOB HANDLE
57
SIDE ACCESS COVER
58
FLAT HD SCR M5-.8 X 15
Price
N/A
59
SHOULDER SCREW M5-.8 X 10
60
QUILL CRANK HANDLE
61
HEX WRENCH 3MM
Price
N/A
62
HEX WRENCH 6MM
Price
N/A
63
HEX WRENCH 8MM
Price
N/A
64
TAILSTOCK LEADSCREW M16-2 X 60 (LH)
101

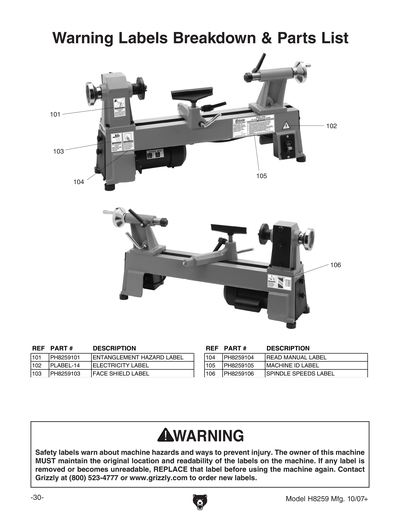

ENTANGLEMENT HAZARD LABEL
Item is no longer available
Price
N/A
102
ELECTRICITY 1.4W X 1.2H
Price
N/A
103
FACE SHIELD LABEL
Item is no longer available
Price
N/A
104
READ MANUAL LABEL
Item is no longer available
Price
N/A
105
MACHINE ID LABEL
Item is no longer available
Price
N/A
106
SPINDLE SPEEDS LABEL
MAN
MANUAL FOR H8259 07/09
