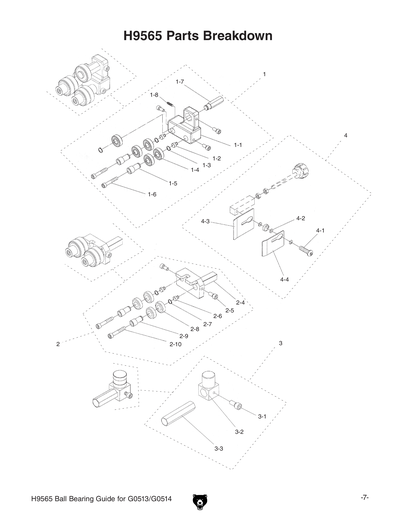

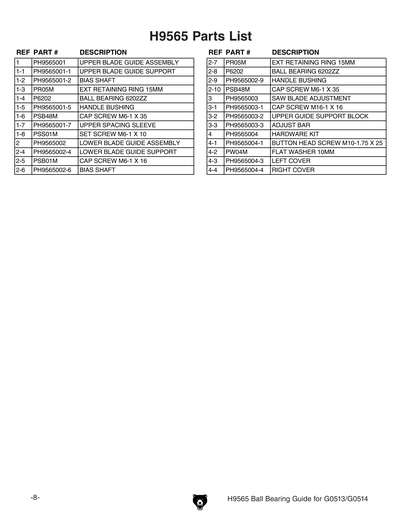

Parts for H9565 Bandsaw Ball Bearing Guides

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
UPPER BLADE GUIDE ASSEMBLY
1-1
UPPER BLADE GUIDE SUPPORT
1-2
BIAS SHAFT
1-3
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
1-4
BALL BEARING 6202ZZ
Price
N/A
1-5
HANDLE BUSHING
1-6
CAP SCREW M6-1 X 35
Price
N/A
1-7
UPPER SPACING SLEEVE
1-8
SET SCREW M6-1 X 10
Price
N/A
2
BLADE LOWER GUIDE ASSY
2-10
CAP SCREW M6-1 X 35
Price
N/A
2-4
BLADE LOWER GUIDE SUPPORT
2-5
CAP SCREW M6-1 X 16
Price
N/A
2-6
BIAS SHAFT
2-7
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
2-8
BALL BEARING 6202ZZ
Price
N/A
2-9
HANDLE BUSHING
3
SAW BLADE ADJUSTMENT
3-1
CAP SCREW M16-1 X 16
3-2
UPPER GUIDE SUPPORT BLOCK
3-3
ADJUST BAR
4
HARDWARE KIT
4-1
BUTTON HD CAP SCR M10-1.75 X 25
4-2
Now: PW04M
FLAT WASHER 10MM
Price
N/A
4-3
COVER LEFT
4-4
COVER RIGHT
