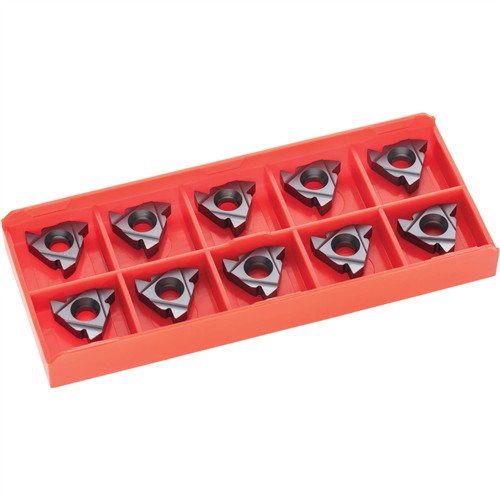

T34405 Harlingen® All-Purpose 16ER G60 Carbide Inserts, 10-Pk.

Specifically designed for left-hand external threading boring bars such as the H8300 and the H8301, these carbide inserts offer exceptional cutting across a broad range of materials, including steel, stainless-steel, and cast-iron.

Each insert features an advanced titanium aluminum nitride (TiAlN) coating. Engineered for higher heat applications, this superior coating delivers exceptional hardness, increased oxidation resistance, and strong thermal stability, allowing for higher cutting speeds and feeds. The result? Enhanced productivity and a significantly extended tool life.

With a 16mm inscribed circle (I.C.), these inserts are engineered for left-hand external threading toolholders. These all-purpose inserts provide a reliable and cost-effective solution, ensuring performance you can depend on.

SPECIFICATIONS:

• Designation: 16ER G60
• Manufacturer grade: TP04
• Insert shape: Threading insert
• Partial profile: 60°
• Insert size: 16mm I.C.
• Thread type: External
• Insert hand: Left hand
• Insert material: Carbide
• Insert coating: TiAlN
• Target materials: Steel, stainless steel, and cast iron
• Quantity: 10

Upgrade your machining operations with these all-purpose 16ER G60 carbide inserts.
