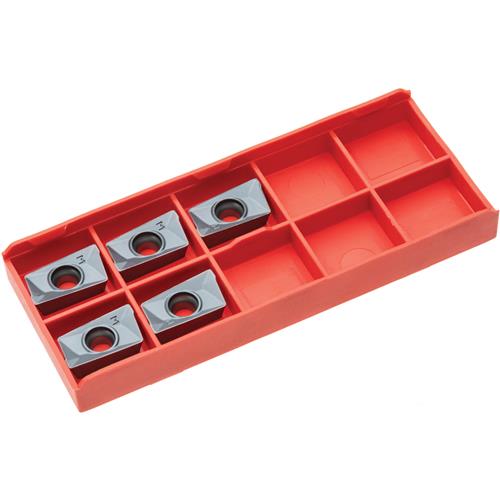

T34474 Harlingen® All-Purpose APKT Carbide Inserts , 10-Pk.

High-performance inserts engineered for efficient face and shoulder milling.

These APKT1604 carbide inserts are precision-ground for use in indexable end mills delivering superior performance and an excellent finish during demanding face and shoulder milling operations. Their premium coating ensures durability and stability.

FEATURES and BENEFITS:

• Advanced TiAlN Coating: The titanium aluminum nitride (TiAlN) coating provides exceptional hardness and superior wear resistance. This enables the cutting edge to maintain integrity at high temperatures, greatly extending tool life.
• High-Feed Geometry: The APKT geometry features a positive rake angle that minimizes cutting forces, improves chip evacuation, and is optimized for productive high-feed rates.
• Versatile Milling: Designed for general-purpose milling of demanding materials, including steel, stainless steel, and cast iron, ensuring consistent performance and stability.
• Economical Refill: Sold in a convenient 10 pack, these inserts provide a cost-effective way to refresh the performance of your indexable end mill set.

FITS:

• T10388 Milling Cutter
• T34461 Face Milling Cutter

SPECIFICATIONS:

• Designation: APKT1604
• Insert shape: Parallelogram
• Insert angle: 85°
• Clearance angle: 11° Positive
• Tolerance class: High precision
• Insert size: 9.525mm (3/8") I.C.
• Insert thickness: 4.76mm (3/16")
• Insert material: Carbide
• Insert coating: TiAlN
• Target materials: Steel, stainless steel, cast iron
• Quantity: 10

Upgrade your machining operations with these Carbide Inserts APKT carbide inserts.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.

Made in an ISO 9001 factory
