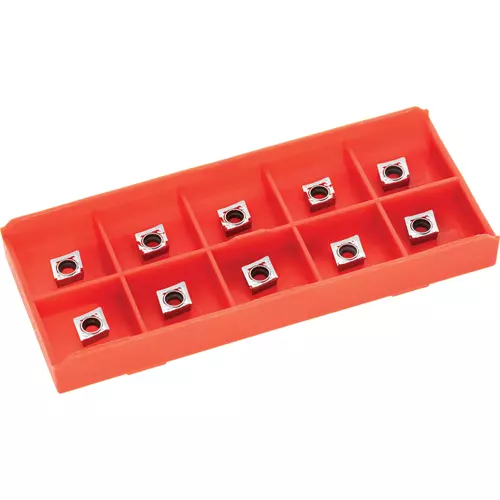

T34578 Harlingen® CCGX060204-NL Carbide Inserts for Aluminum, 10-Pk.

These CCGX 80° rhombic (diamond) carbide inserts are specifically engineered for optimal turning, facing, and boring operations on aluminum and other non-ferrous materials. Designed with a positive geometry and an exceptionally sharp cutting edge, they provide clean, precise cuts and offer two usable cutting edges for reliable material removal. They are compatible with standard tool holders designed for positive diamond inserts.

Being uncoated, these inserts maintain a critical sharp edge, which is essential for preventing material adhesion (built-up edge) and achieving a smooth, mirror-like finish when machining aluminum. This specialized design ensures maximum productivity and extended tool life in non-ferrous applications.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on.

SPECIFICATIONS:

• Designation: CCMT09T304-NTM
• Manufacturer grade: HK434
• Insert shape: Diamond (Rhombic)
• Insert angle: 80°
• Clearance angle: 7° Positive
• Tolerance class: G
• Insert size: 6.35mm (1/4") I.C.
• Insert thickness: 2.38mm (3/32")
• Nose radius: 0.4mm
• Chipbreaker: NL
• Insert material: Carbide
• Insert coating: Uncoated
• Target materials: Aluminum
• Quantity: 10

Upgrade your machining operations with these CCGX060204 carbide inserts.
