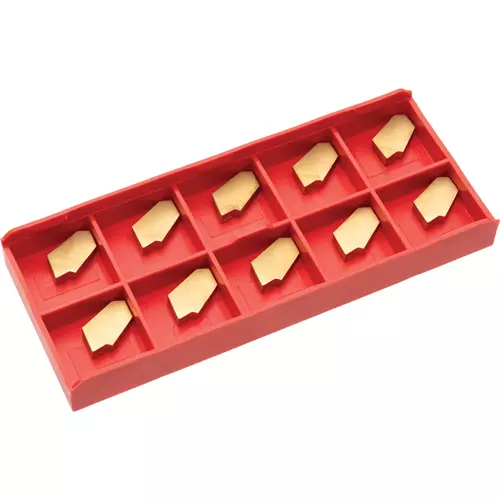

T34480 Harlingen® All-Purpose GTN-3 Carbide Inserts, 10-Pk.

Precision 3mm cut-off and grooving inserts for faster, cleaner cuts.

These GTN-3 carbide inserts are designed for increased strength and durability during heavy-duty cut-off and deep grooving applications on larger workpieces. The wide, neutral edge provides reliable performance and excellent stability at higher feed rates.

FEATURES and BENEFITS:

• Premium TiAlN Coating: The titanium aluminum nitride coating provides exceptional hardness and superior wear resistance. This enables the cutting edge to maintain integrity at high cutting speeds, greatly extending tool life.
• Precision 3mm Width: The 3mm cutting width provides greater stability and strength, making it ideal for deep grooving and parting larger diameter material.
• Versatile Material Range: Optimized for high performance across demanding materials, including steel, stainless steel, and cast iron.
• Self-Grip Design: Compatible with self-lock tool blocks (T34458, T34459), ensuring rigid clamping and chatter-free operation.

FITS:

• T34458 Self-Lock Tool Block
• T34459 Self-Lock Tool Block

SPECIFICATIONS:

• Designation: GTN-3
• Cutting width: 3mm
• Insert material: Carbide
• Insert coating: TiAlN
• Target materials: Steel, stainless steel, cast iron
• Quantity: 10

Upgrade your machining operations with these GTN-3 carbide inserts.
