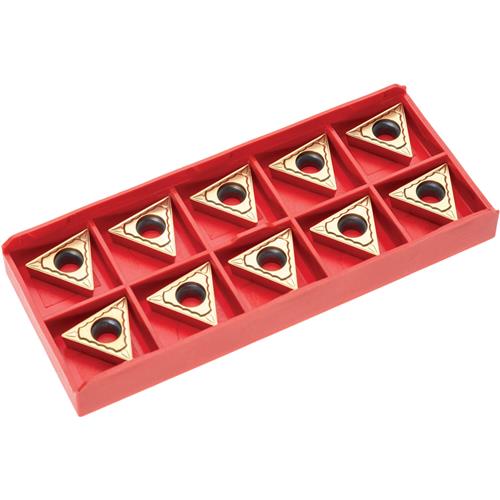

T34485 Harlingen® TCMT16T304 Carbide Inserts, 10-Pack

High-performance triangular inserts for smooth finishing and stable internal boring.

These TCMT16T304 carbide inserts provide a rugged and reliable solution for general-purpose machining. Their larger 16mm size and positive rake geometry excel in operations requiring deeper cuts and higher stability, making them a staple for both external turning and heavy-duty internal boring.

FEATURES and BENEFITS:

• Enhanced Rigidity and Depth: The 16-series footprint offers a larger surface area and increased thickness compared to smaller inserts. This extra mass allows the insert to withstand higher cutting forces and achieve deeper passes without sacrificing precision.
• Positive Rake Efficiency: Featuring a 7° positive clearance angle, these inserts slice through material with reduced resistance. This design minimizes heat generation and pressure on the workpiece, which is essential for maintaining accuracy during long boring cycles.
• Advanced TiAlN Coating: The titanium aluminum nitride (TiAlN) coating provides exceptional hardness and superior wear resistance. This enables the cutting edge to maintain integrity at high temperatures, greatly extending tool life.
• Multi-Material Performance: Optimized for high-performance cutting in stainless steel, steel, and cast iron. The specialized chipbreaker design ensures efficient chip evacuation and prevents "bird-nesting" during continuous cuts.
• Convenient 10-Pack: Sold in a protective 10-piece storage case, ensuring you have a steady supply of fresh edges for both production runs and one-off repair jobs.

SPECIFICATIONS:

• Designation: TCMT16T304
• Insert Shape: Triangular
• Clearance Angle: 7° (Positive)
• Insert size: 9.525mm I.C. (3/8")
• Insert thickness: 3.97mm (5/32")
• Nose radius: 0.4mm (1/64")
• Insert material: Carbide
• Insert coating: TiAlN
• Insert quantity: 10
• Target materials: Steel, stainless steel, cast iron

Upgrade your machining operations with these TCMT16T304 carbide inserts.
