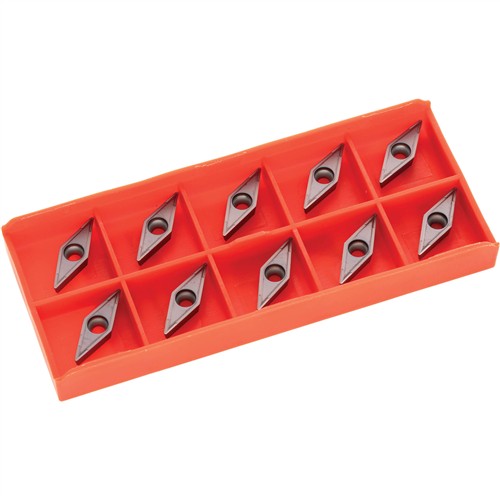

T34576 Harlingen® VCMT Carbide Inserts for Cast Iron, 10-Pk.

These VCMT 35° diamond carbide inserts are engineered for efficient turning, profiling, and boring operations on cast iron. Designed with a positive geometry, they provide a clean-cutting action and offer two usable cutting edges for reliable material removal.

Each insert features a high-performance aluminum titanium nitride (AlTiN) coating. With its high aluminum content, this advanced coating offers exceptional hardness and superior thermal stability, allowing for incredibly high cutting speeds and feeds. This translates directly into increased productivity and significantly extended tool life, particularly when machining cast iron.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on.

FITS:

• T10372 Profiling Tool Holder
• T10447 Profiling Tool Holder
• T10448 Profiling Tool Holder
• T10449 Profiling Tool Holder
• T10450 Profiling Tool Holder

SPECIFICATIONS:

• Designation: VCMT110304-SL1
• Manufacturer grade: HPC349-1B
• Insert shape: Diamond (Rhombic)
• Insert angle: 35°
• Clearance angle: 7° Positive
• Tolerance class: M
• Insert size: 6.35mm (1/4") I.C.
• Insert thickness: 3.18mm (1/8")
• Nose radius: 0.4mm
• Chipbreaker: S1L
• Insert material: Carbide
• Insert coating: AlTiN
• Target materials: Cast iron
• Quantity: 10

Upgrade your machining operations with these VCMT110304 carbide inserts.
