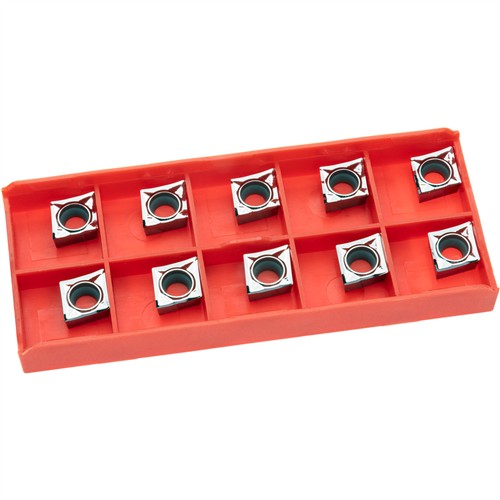

T34409 Harlingen® CCGX09T304-NL Carbide Inserts for Aluminum, 10-Pk.

Specifically designed for precise turning, facing, and boring of aluminum, these carbide inserts are engineered to deliver exceptional finishes and high performance. Their specialized geometry is crafted for optimal chip control and smooth cutting in challenging non-ferrous materials.

As uncoated carbide inserts, their inherent properties create an exceptionally sharp and free-cutting edge, specifically designed to handle aluminum's unique characteristics. This ensures outstanding chip evacuation, virtually eliminates built-up edge (BUE), and results in a pristine surface finish. You'll achieve higher accuracy and reduced rework, making them a cost-effective and highly effective solution for all your aluminum milling needs.

SPECIFICATIONS:

• Designation: CCGX09T304-NL
• Manufacturer grade: HK434
• Insert shape: Diamond (Rhombic)
• Insert angle: 80°
• Clearance angle: 7° Positive
• Tolerance class: G
• Insert size: 9.525mm (3/8") I.C.
• Insert thickness: 3.18mm (1/8")
• Nose radius: 0.4mm
• Insert material: Carbide
• Insert coating: Uncoated
• Target materials: Aluminum
• Quantity: 10

Upgrade your machining operations with these CCGX09T304 carbide inserts.
