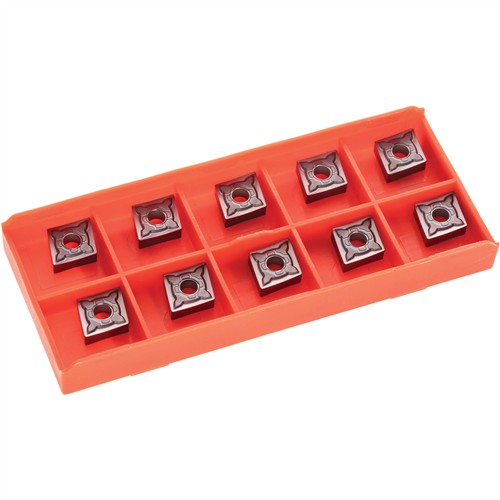

T34416 Harlingen® All-Purpose CNMG090304-MSF Carbide Inserts, 10-Pk.

Specifically designed for the H5680 and H5681 7-pc. Insert Turning Tool Sets and H5689 Indexable End Mill Set, these all-purpose carbide inserts offer exceptional cutting across a broad range of materials, including steel, stainless steel, and cast iron.

Each insert is engineered with a dual-layer defense of titanium aluminum nitride (TiAlN) and titanium silicon nitride (TiSiN) coatings. This powerful combination delivers a significant boost in overall hardness, alongside exceptional abrasion and heat resistance. That translates directly into a longer cutting lifespan, less downtime, and ultimately, a more productive and cost-effective machining process.

SPECIFICATIONS:

• Designation: CNMG090304-MSF
• Manufacturer grade: HP1215
• Insert shape: Diamond (Rhombic)
• Insert angle: 80°
• Clearance angle: 0° Negative
• Tolerance class: M
• Insert size: 9.525mm (3/8") I.C.
• Insert thickness: 3.18mm (3/32")
• Nose radius: 0.4mm
• Chipbreaker: MSF
• Insert material: Carbide
• Insert coating: TiAlN, TiSiN
• Target materials: Steel, stainless steel, cast iron
• Quantity: 10

Upgrade your machining operations with these CNMG090304 carbide inserts.
