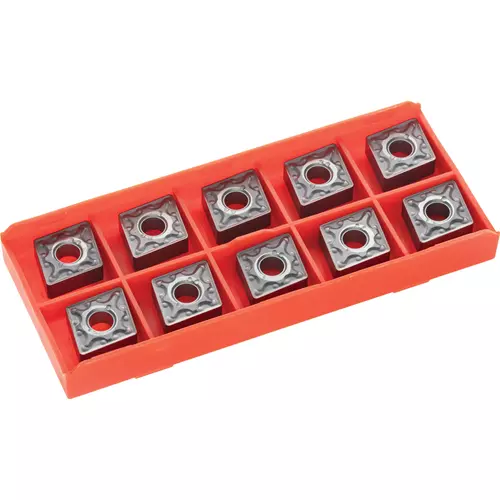

T34418 Harlingen® CNMG120408-MAL Carbide Inserts for Stainless Steel, 10-Pk.

Specifically designed for facing, turning, and contouring lathe tool holders, these carbide inserts offer exceptional stainless-steel cutting.

Each insert features a cutting-edge aluminum titanium nitride (AlTiN) coating. With its high aluminum content, this advanced coating offers exceptional hardness and superior thermal stability, allowing for incredibly high cutting speeds and feeds. This translates to maximum productivity and extended tool life, particularly when machining very hard or heat-intensive materials like stainless steel.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on.

FITS:

• H8283 Lathe Tool Holder
• H8284 Lathe Tool Holder

SPECIFICATIONS:

• Designation: CNMG120408-MAL
• Manufacturer grade: HPC349-1B
• Insert shape: Diamond (Rhombic)
• Insert angle: 80°
• Clearance angle: 0° Negative
• Tolerance class: M
• Insert size: 12.7mm (1/2") I.C.
• Insert thickness: 4.76mm (3/16")
• Nose radius: 0.8mm
• Chipbreaker: K-1
• Insert material: Carbide
• Insert coating: AlTiN
• Target materials: Stainless steel
• Quantity: 10

Upgrade your machining operations with these CNMG120408 carbide inserts.
