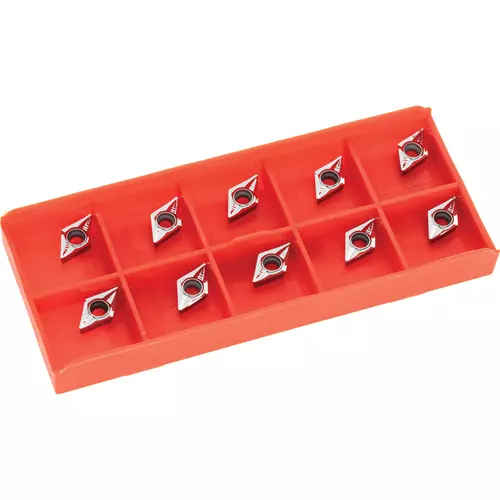

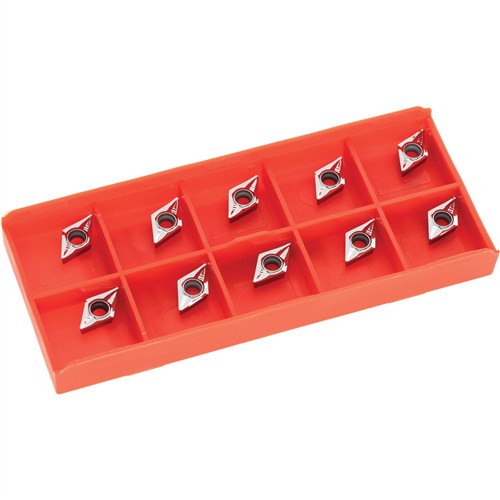

T34419 Harlingen® DCGX070204-NL Carbide Inserts for Aluminum, 10-Pk.

Specifically designed for precise turning, facing, and boring with the H8278, H8279, and H8281 Boring Bars, these carbide inserts are exceptional finishing tools. They offer outstanding accuracy and a smooth surface finish of aluminum.

Experience precise and efficient aluminum machining with these uncoated carbide inserts. Their geometry combined with the lack of a coating creates an exceptionally sharp and free-cutting edge to handle aluminum's unique properties. This ensures excellent chip control and a pristine surface finish, making these inserts a cost-effective and highly effective solution for all your aluminum cutting needs.

SPECIFICATIONS:

• Designation: DCGX070204-NL
• Manufacturer grade: HK434
• Shape: Diamond (Rhombic)
• Angle: 55°
• Clearance angle: 7° Positive
• Tolerance class: Medium
• Insert size: 6.35mm (1/4") I.C.
• Insert thickness: 2.38mm (3/32")
• Nose radius: 0.4mm
• Chipbreaker: NL
• Material: Carbide
• Coating: Uncoated
• Target materials: Aluminum
• Quantity: 10

Upgrade your machining operations with these DCGX070204 carbide inserts.
