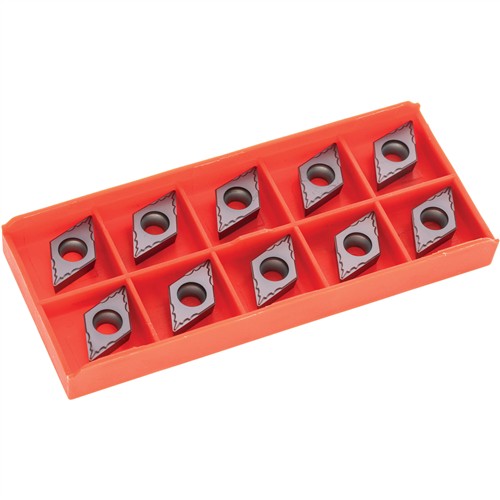

T34421 Harlingen® All-Purpose DCMT Carbide Inserts, 10-Pk.

Specifically designed for precise turning, facing, and boring, these carbide inserts provide exceptional finishing. They offer outstanding accuracy and a smooth surface finish across a broad range of materials, including steel, stainless steel, and cast iron.

Each insert features a cutting-edge aluminum titanium nitride (AlTiN) coating. With its high aluminum content, this advanced coating offers exceptional hardness and superior thermal stability, allowing for incredibly high cutting speeds and feeds. This translates to maximum productivity and extended tool life, particularly when machining very hard or heat-intensive materials.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on.

FITS:

• H8278 Boring Bar
• H8279 Boring Bar
• H8281 Boring Bar

SPECIFICATIONS:

• Designation: DCMT070204-MVL
• Manufacturer grade: HPC349-1B
• Insert shape: Diamond (Rhombic)
• Insert angle: 55°
• Clearance angle: 7° Positive
• Tolerance class: M
• Insert size: 6.35mm (1/4") I.C.
• Insert thickness: 2.38mm (3/32")
• Nose radius: 0.4mm
• Chipbreaker: MVL
• Insert material: Carbide
• Insert coating: AlTiN
• Target materials: Steel, stainless steel, cast iron
• Quantity: 10

Upgrade your machining operations with these DCMT070204 carbide inserts.
