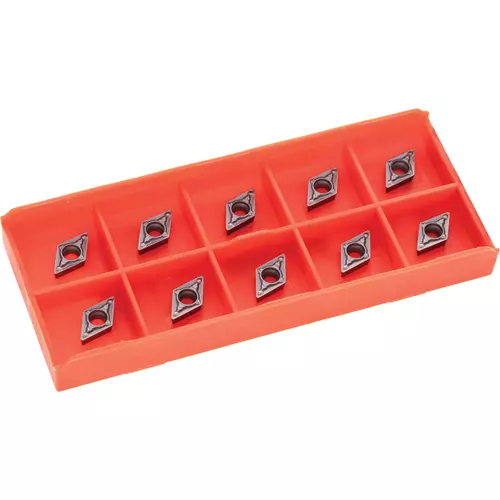

T34423 Harlingen® DCMT Carbide Inserts for Stainless Steel, 10-Pk.

Specifically designed for facing, turning, and contouring boring bars, these carbide inserts offer exceptional stainless-steel cutting.

Each insert is engineered with a dual-layer defense of titanium aluminum nitride (TiAlN) and titanium silicon nitride (TiSiN) coatings. This powerful combination delivers a significant boost in overall hardness, alongside exceptional abrasion and heat resistance. That translates directly into a longer cutting lifespan, less downtime, and ultimately, a more productive and cost-effective machining process.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on.

FITS:

• T10679 Boring Bar
• T10680 Boring Bar
• T10681 Boring Bar
• T10682 Boring Bar
• T10683 Boring Bar
• T10684 Boring Bar

SPECIFICATIONS:

• Designation: DCMT070204-MSF
• Manufacturer grade: HP1215
• Insert shape: Diamond (Rhombic)
• Insert angle: 55°
• Clearance angle: 7° Positive
• Tolerance class: M
• Insert size: 6.35mm (1/4") I.C.
• Insert thickness: 2.38mm (3/32")
• Nose radius: 0.4mm
• Chipbreaker: MSF
• Insert material: Carbide
• Insert coating: TiAlN, TiSiN
• Target materials: Stainless steel
• Quantity: 10

Upgrade your machining operations with these DCMT070204 carbide inserts.
