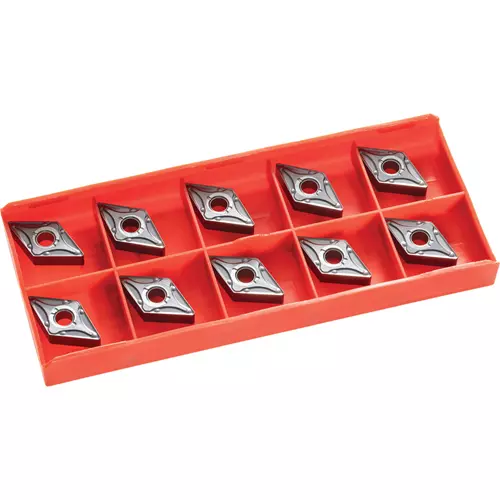

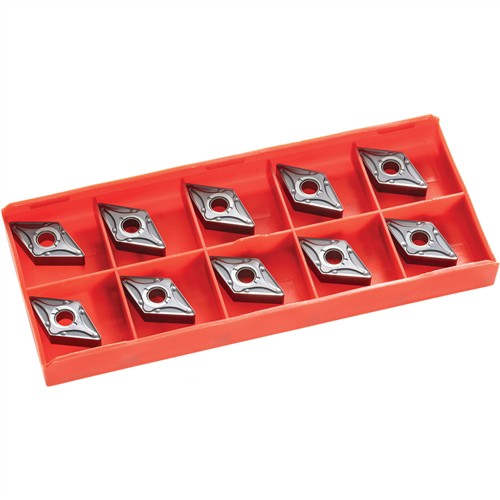

T34425 Harlingen® All-Purpose DNMG150408-MAL Carbide Inserts, 10-Pk.

These carbide inserts are designed for general-purpose turning and facing operations across a broad range of ferrous materials, including steel, stainless steel, and cast iron. Their strong, negative geometry makes them ideal for demanding applications and offers four usable cutting edges per insert, maximizing tool life and efficiency. They are compatible with standard negative rake tool holders.

Each insert features a cutting-edge aluminum titanium nitride (AlTiN) coating. With its high aluminum content, this advanced coating offers exceptional hardness and superior thermal stability, allowing for incredibly high cutting speeds and feeds. This translates to maximum productivity and extended tool life, particularly when machining very hard or heat-intensive materials like stainless steel.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on.

SPECIFICATIONS:

• Designation: DNMG150408-MAL
• Manufacturer grade: HPC349-1B
• Insert shape: Diamond (Rhombic)
• Insert angle: 55°
• Clearance angle: 0° Negative
• Tolerance class: M
• Insert size: 12.7mm (1/2") I.C.
• Insert thickness: 4.76mm (3/16")
• Nose radius: 0.8mm
• Chipbreaker: MAL
• Insert material: Carbide
• Insert coating: AlTiN
• Target materials: Steel, stainless steel, cast iron
• Quantity: 10

Upgrade your machining operations with these CDNMG150408 carbide inserts.
