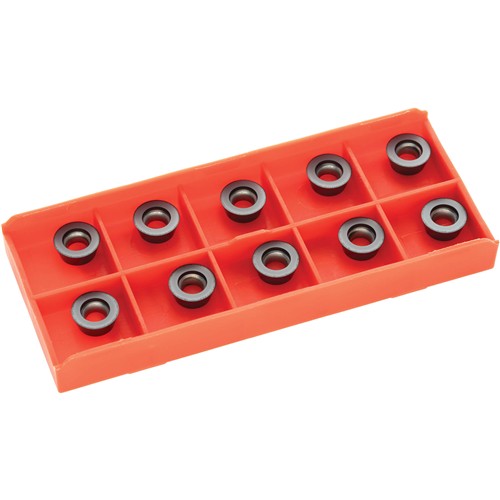

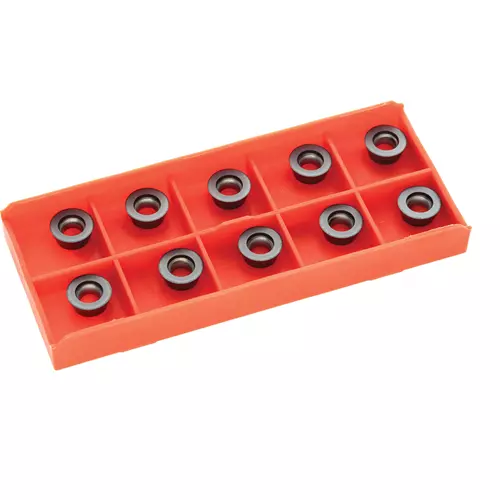

T34426 Harlingen® RDKW10T3MO-QBG Carbide Inserts, 10-Pk.

These RDKW round carbide inserts are engineered for versatile and demanding milling operations, excelling in shoulder milling, slotting, and profiling across a range spectrum of ferrous materials, including steel, stainless steel, and cast iron. Their inherent round geometry provides exceptional cutting edge strength and enables a smooth cutting action. Compatible with standard round insert milling cutters.

Each insert features an aluminum titanium nitride (AlTiN) coating. With its high aluminum content, this advanced coating offers exceptional hardness and superior thermal stability, allowing for incredibly high cutting speeds and feeds. This translates to maximum productivity and extended tool life, particularly when machining very hard or heat-intensive materials like steel and stainless steel.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on.

SPECIFICATIONS:

• Designation: RDKW10T3MO-QBG
• Manufacturer grade: HP1650
• Insert shape: Round
• Insert size: 10mm I.C.
• Insert thickness: 3.18mm (1/8")
• Clearance angle: Positive
• Tolerance class: K
• Chipbreaker: QBG
• Insert material: Carbide
• Insert coating: AlTiN
• Target materials: Steel, stainless steel, cast iron
• Quantity: 10

Upgrade your machining operations with these RDKW10T3MO carbide inserts.
