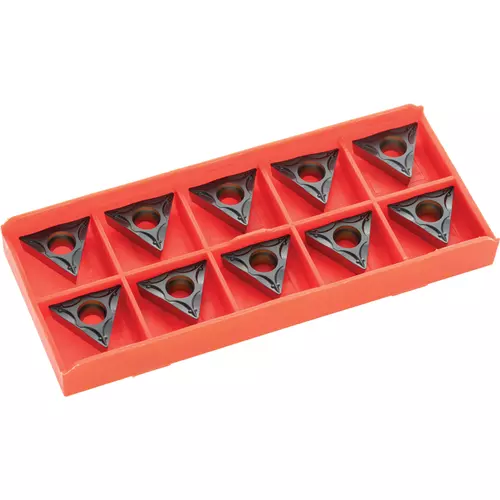

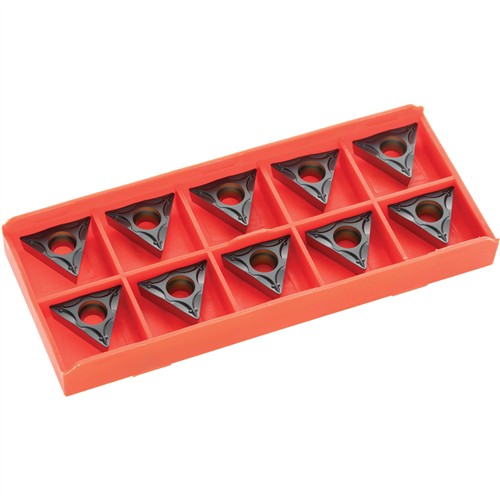

T34427 Harlingen® All-Purpose TCMT16T304-NTM Carbide Inserts, 10-Pk.

These versatile TCMT triangular carbide inserts are designed for general-purpose turning, facing, and boring operations, offering exceptional cutting across a broad range of materials, including steel, stainless steel, and cast iron. They are compatible with standard positive rake tool holders, including our T10374 Chamfering Tool Holder.

Each insert features an advanced multi-layer defense of titanium carbonitride (TiCN), aluminum oxide (Al2O3), and titanium nitride (TiN) coatings. This powerful combination delivers superior hardness, alongside exceptional abrasion and heat resistance. That translates directly into increased productivity and a significantly extended tool life, even in demanding applications.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on.

SPECIFICATIONS:

• Designation: TCMT16T304-NTM
• Manufacturer grade: HP2415
• Insert shape: Triangular
• Insert angle: 60°
• Clearance angle: 7° Positive
• Tolerance class: M
• Insert size: 15.875mm (5/8") I.C.
• Insert thickness: 3.18mm (1/8")
• Nose radius: 0.4mm
• Chipbreaker: NTM
• Insert material: Carbide
• Insert coating: TiCN, Al2O3, TiN
• Target materials: Steel, stainless steel, cast iron
• Quantity: 10

Upgrade your machining operations with these TCMT16T304 carbide inserts.
