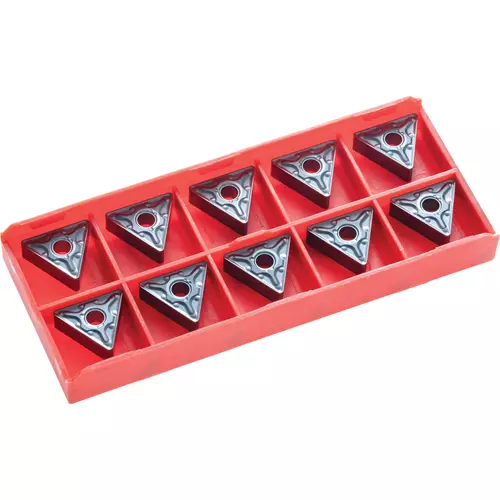

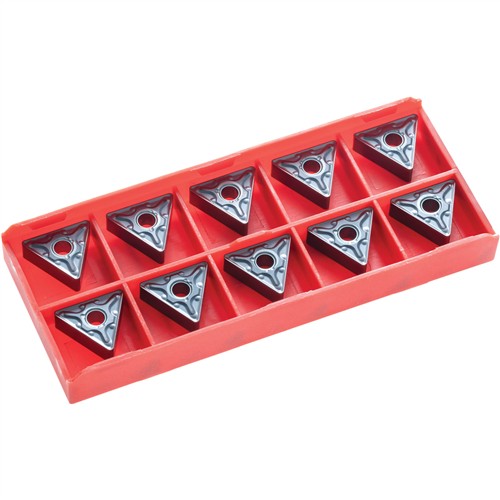

T34429 Harlingen® TNMG160408-MAL Carbide Inserts for Cast Iron, 10-Pk.

These TNMG triangular carbide inserts are for turning and facing operations on cast iron, delivering exceptional performance in demanding applications. Their strong, negative geometry makes them highly durable and provides six usable cutting edges per insert (three on each side), maximizing tool life and efficiency. They are perfectly compatible with our H8285 through H8290 Tool Holders.

Each insert features a cutting-edge aluminum titanium nitride (AlTiN) coating. With its high aluminum content, this advanced coating offers exceptional hardness and superior thermal stability, allowing for incredibly high cutting speeds and feeds. This translates to maximum productivity and extended tool life, particularly when machining very hard or heat-intensive cast iron.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on.

SPECIFICATIONS:

• Designation: TNMG160408-MAL
• Manufacturer grade: HPC349-1A
• Insert shape: Triangular
• Insert angle: 60°
• Clearance angle: 0° Negative
• Tolerance class: M
• Insert size: 15.875mm (5/8") I.C.
• Insert thickness: 4.76mm (3/16")
• Nose radius: 0.8mm
• Chipbreaker: MAL
• Insert material: Carbide
• Insert coating: AlTiN
• Target materials: Cast iron
• Quantity: 10

Upgrade your machining operations with these TNMG160408 carbide inserts.
