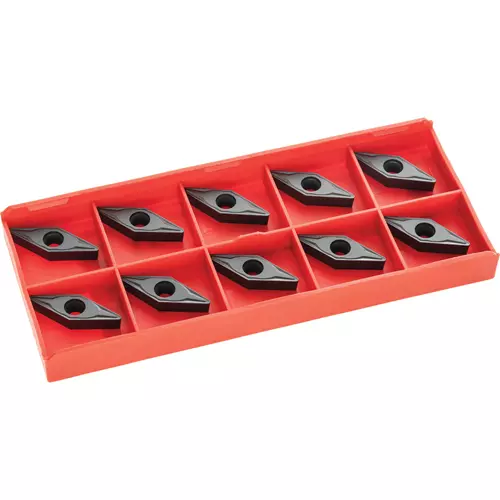

T34432 Harlingen® All-Purpose VBMT160408-NTR Carbide Inserts, 10-Pk.

These versatile VBMT 35° diamond carbide inserts are engineered for general-purpose turning and profiling operations across a broad range of materials, including steel, stainless steel, and cast iron. Designed with a positive geometry, they are perfectly compatible with our T10851 Turning/Profiling Tool Holders.

Each insert is enhanced with titanium carbonitride (TiCN) and aluminum oxide (Al2O3) ceramic coatings. These advanced, multi-layer coatings significantly boost overall hardness and provide exceptional abrasion and heat resistance, translating directly to increased productivity and a longer tool lifespan, especially when machining hard and heat-intensive materials.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on.

SPECIFICATIONS:

• Designation: VBMT160408-NTR
• Manufacturer grade: HC2125
• Insert shape: Diamond (Rhombic)
• Insert angle: 35°
• Clearance angle: 5° Positive
• Tolerance class: M
• Insert size: 9.525mm (3/8") I.C.
• Insert thickness: 4.76mm (3/16")
• Nose radius: 0.8mm
• Chipbreaker: NTR
• Insert material: Carbide
• Insert coating: TiCN, Al2O3
• Target materials: Steel, stainless steel, cast iron
• Quantity: 10

Upgrade your machining operations with these VBMT160408 carbide inserts.
