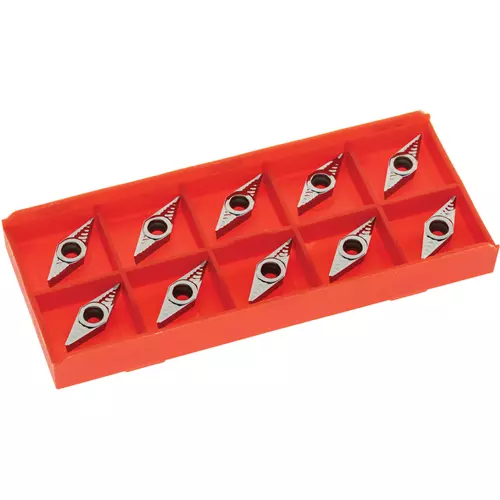

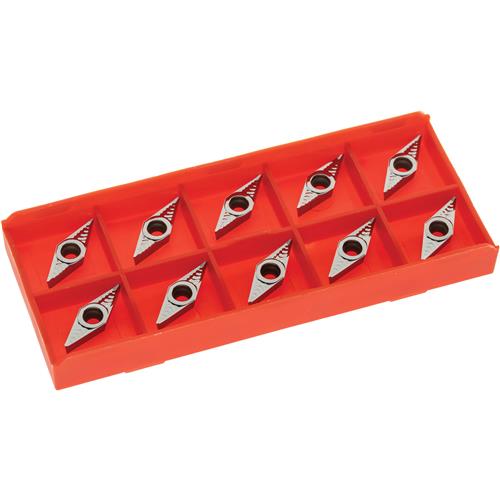

T34434 Harlingen® VCGT Carbide Inserts for Aluminum, 10-Pk.

These VCGT 35° diamond carbide inserts are specifically engineered for high-performance turning, profiling, and boring of aluminum and other non-ferrous materials. Their ultra-sharp cutting edge and specialized chipbreaker design promote excellent chip flow and prevent built-up edge, resulting in superior surface finishes.

Being uncoated, these inserts maintain an exceptionally sharp cutting edge critical for preventing material adhesion (built-up edge) and achieving a smooth, mirror-like finish when machining aluminum. This specialized design ensures maximum productivity and extended tool life in non-ferrous applications.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on.

FITS:

• T10372 Profiling Tool Holder
• T10347 Profiling Tool Holder
• T10348 Profiling Tool Holder
• T10349 Profiling Tool Holder
• T10350 Profiling Tool Holder

SPECIFICATIONS:

• Designation: VCGT110304-AK
• Manufacturer grade: HK434
• Insert shape: Diamond (Rhombic)
• Insert angle: 35°
• Clearance angle: 7° Positive
• Tolerance class: G
• Insert size: 6.35mm (1/4") I.C.
• Insert thickness: 3.18mm (1/8")
• Nose radius: 0.4mm
• Chipbreaker: AK
• Insert material: Carbide
• Insert coating: Uncoated
• Target materials: Aluminum
• Quantity: 10

Upgrade your machining operations with these VCGT110304 carbide inserts.
