Item: T28411 | Model: RR201ITR

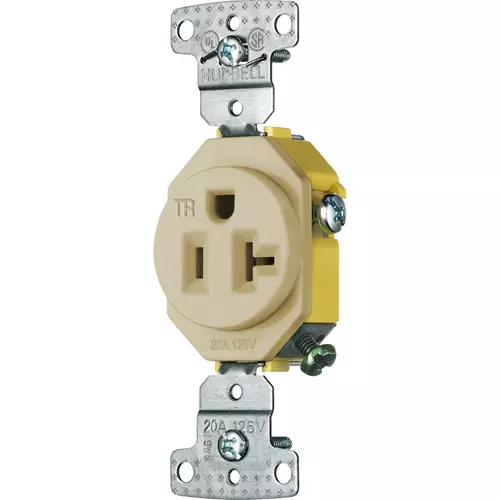

Image for Hubbell T28411 - 20 Amp 125V Single Receptacle

Hubbell T28411 - 20 Amp 125V Single Receptacle

Specifications:
  • Type: Single Receptacle
  • Standard: NEMA WD1 and WD5, UL498
  • Voltage rating: 125V
  • Connection: Side wired
  • Material: thermoplastic
  • Amperage Rating: 20A
  • Number of Poles: 2
  • Number of Wires: 3
  • Wire size: #14 AWG to #12 AWG
  • Wattage: 2500W
  • NEMA Rating: 5-20R
  • Size: Standard
  • Mounting: Screw Mount
  • Environmental Conditions: Indoor dry unless protected by additional means
  • Application: Trade select residential series
  • Special features: Tamper resistant and self grounding
  • Color: Ivory
