Item# T28426 Model# L530P

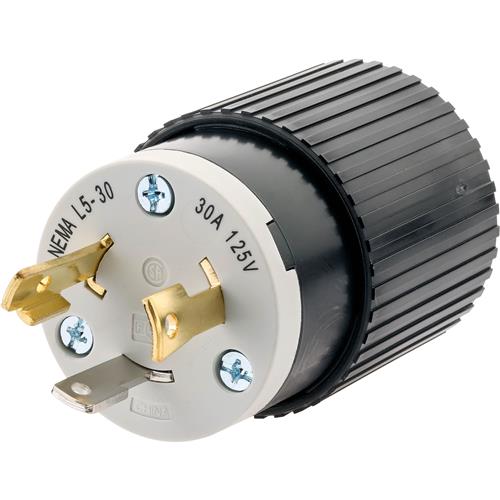

Hubbell T28426 - 30 Amp 125V NEMA L5-30 Twist Lock Plug

Be the First to Write a review

$15.95

+$0.00 Shipping

+$0.00 Oversize

Specifications:

Type: Male plug
Standard: UL/CSA
Voltage rating: 125V
Wattage: 3750W
Connection: Terminal screw
Material: Composite
Amperage Rating: 30A
Number of Poles: 2
Number of Wires: 3
Wire size: #10AWG to #8AWG
NEMA Rating: L5-30P
Size: Standard
Mounting: Cord Mounted
Environmental Conditions: Indoor dry unless protected by additional means
Application: Power connection
Color: Black

Features:

Visible NEMA ratings
Captive assembly screws
Super tough nylon body
Impact modified nylon blade/contact holder
Brass contacts/blade
Withstands 3500 V per UL498 dielectric voltage
600 VAC or 250 VDC maximum working voltage
Certified for current interrupting at full rated current
Maximum 30° C temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL 498
Minimum 4.8 times rated current for 100 cycles overload
Terminals identified in accordance with UL 498 (Brass, White, Green)
18 to 8 AWG flexible cord
Ratings and NEMA identification are permanently marked on device

View More Details
