Item: T27463 | Model: 35-0918
Pricing Information
$28.95
Price: $28.95

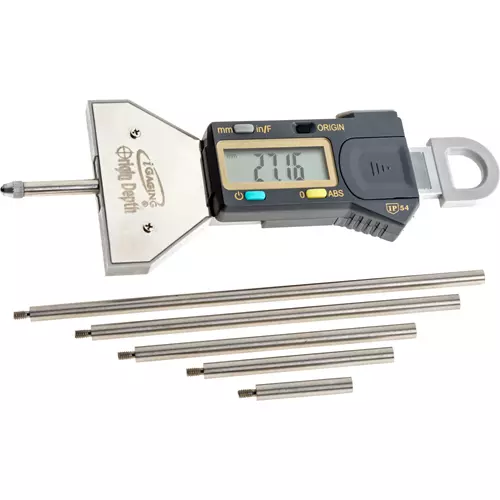

This Gauge serves two purposes for the price of one: it functions as an indicator or a depth gauge! The 5 included extension rods extend the measurement anywhere between 0 and 16" in 1" intervals to measure where you need. There's also a data output port so you can link your results directly to a computer with the optional T27465 kit.
Features:
Features:
- ABSOLUTE encoding technology
- Memorize Origin zero position
- Includes 5 interchangeable depth rods (1", 2", 3", 4" and 5")
- 3 way Reading functions: inch, metric, & fractional
- Spring loaded movement for easy use
- With lug back use as an indicator or depth gauge
- Large LCD display
- 4-48 Thread interchangeable carbide tipped point
- Resolution: 0.0005"/.01mm/1/128"
- Indicator travel: 1"
- Measure range: 0-16"/400mm
- Accuracy: 0.001"
- IP54 Protection from fluids and dust
Actions for Products including purchasing, availability and wishlist
Shipping
Delivery Options Loading...
Product detail tabs
Overview
This Gauge serves two purposes for the price of one: it functions as an indicator or a depth gauge! The 5 included extension rods extend the measurement anywhere between 0 and 16" in 1" intervals to measure where you need. There's also a data output port so you can link your results directly to a computer with the optional T27465 kit.
Features:
Features:
- ABSOLUTE encoding technology
- Memorize Origin zero position
- Includes 5 interchangeable depth rods (1", 2", 3", 4" and 5")
- 3 way Reading functions: inch, metric, & fractional
- Spring loaded movement for easy use
- With lug back use as an indicator or depth gauge
- Large LCD display
- 4-48 Thread interchangeable carbide tipped point
- Resolution: 0.0005"/.01mm/1/128"
- Indicator travel: 1"
- Measure range: 0-16"/400mm
- Accuracy: 0.001"
- IP54 Protection from fluids and dust
