Item# T24800 Model# 36-246

iGaging T24800 - 2-4-6 Block Set

$119.95
+$0.00  Shipping
+$0.00  Oversize

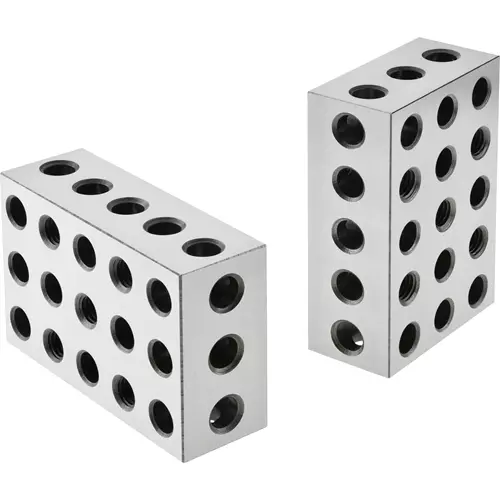

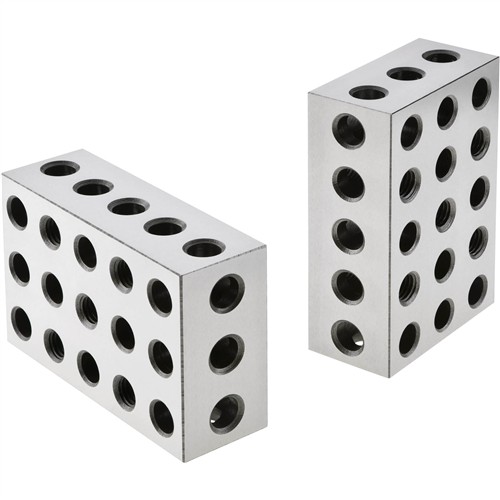

T24800 iGAGING 2-4-6 Block Set

Another must-have precision block set for machinists.

The six-sided T24800 iGAGING 2-4-6 Block Set is useful for layout or grinding work.

They can also be used for indexing, machining, and inspection jobs, as well as anchoring your elevated workpieces.

Conveniently named a 2-4-6 Block Set because the matched block pair individually measure 2" x 4" x 6".

The precision-ground steel has been hardened on all sides for durability.

Five 3/8"- 16 TPI tapped holes and eighteen plain holes are provided for clamping operations.

This block set comes with a protective case for safekeeping and transportation.

SPECIFICATIONS:

  • Holes: (23) 5 tapped @ 3/8"- 16 TPI, 18 plain
  • Overall dimensions: 2" x 4" x 6"
  • Approximate shipping weight: 18.4 lbs.

FEATURES:

  • Useful in layout or grinding work
  • Professional-quality matched pair
  • Matched accuracy of .0002"
  • Precision-ground and hardened steel
  • Surface finish from 6 to 16 microinches
  • Case hardened on all six sides
  • Squareness on all sides within 0.0003”
  • 23 holes for easy clamping
  • Accuracy of .0003" per inch
View More Details
Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Overview

T24800 iGAGING 2-4-6 Block Set

Another must-have precision block set for machinists.

The six-sided T24800 iGAGING 2-4-6 Block Set is useful for layout or grinding work.

They can also be used for indexing, machining, and inspection jobs, as well as anchoring your elevated workpieces.

Conveniently named a 2-4-6 Block Set because the matched block pair individually measure 2" x 4" x 6".

The precision-ground steel has been hardened on all sides for durability.

Five 3/8"- 16 TPI tapped holes and eighteen plain holes are provided for clamping operations.

This block set comes with a protective case for safekeeping and transportation.

SPECIFICATIONS:

  • Holes: (23) 5 tapped @ 3/8"- 16 TPI, 18 plain
  • Overall dimensions: 2" x 4" x 6"
  • Approximate shipping weight: 18.4 lbs.

FEATURES:

  • Useful in layout or grinding work
  • Professional-quality matched pair
  • Matched accuracy of .0002"
  • Precision-ground and hardened steel
  • Surface finish from 6 to 16 microinches
  • Case hardened on all six sides
  • Squareness on all sides within 0.0003”
  • 23 holes for easy clamping
  • Accuracy of .0003" per inch
