Item: T32265 | Model: 34-212-26
1 Product Photos
$62.95

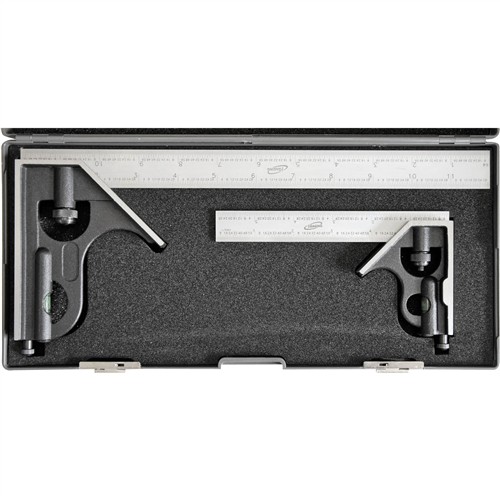

These combination Squares feature hardened and tempered steel blades with a satin chrome finish to reduce glare and resist rust.
Features:
Heads are machined cast iron with a black wrinkle finish
Moveable heads are set for readings at 45° and 90°
Blades are machine etched with graduations at 1/8", 1/16", 1/32" and 1/64"
Blade straightness and parallelism is 0.0006" /12"
End sureness: +/-0.03°
Head sureness: 0.0005" /12"
Miter sureness: 0.005"/12"
Heads include a level vial and a hardened steel scribe that screws into the tool body
Both tools are fitted into a single foam lined storage case with spring catches
