Item# T24359 Model# 35-0906

iGaging T24359 - 6" Digital Router Depth Gauge with 3 in 1 Height, Depth and Angle Gauge

$14.95
+$0.00  Shipping
+$0.00  Oversize

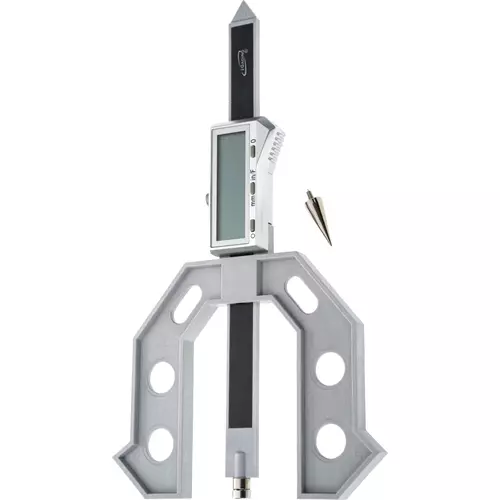

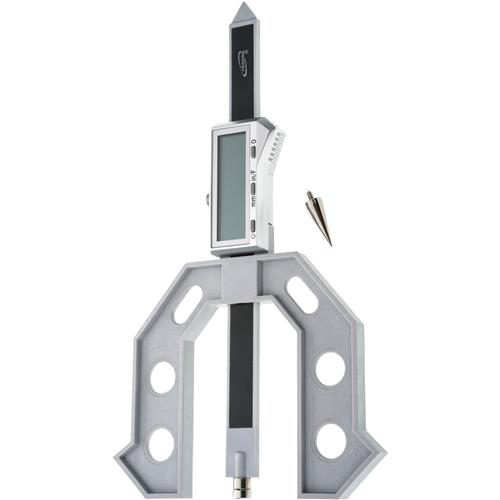

Set the heights of router bits and saw blades with greater accuracy! This 3-in-1 digital router combines the functions of three tools: a depth gauge, height gauge and thickness gauge. It is a metal rule with a Super Large LCD display, housed in a heavy-duty polycarbonate frame which allows it to stand freely. The frame allows the tool to be set at 70, 80 or 90 degrees as well as horizontally for accurate measuring. It features buttons for on/off as well as zero set functions, and it easily switches readings from inches to metric to fractions at a touch. Two hardened steel measuring anvils (flat and point) are included. Supplied with a 3V CR2032 battery and packaged in a protective plastic case.

Specifications:

  • Measuring Range: 0-6"
  • Router Depth:0-3. 10"(The beam goes up from surface)
  • Slot Depth:0-2. 90"(The beam goes down from surface)
  • Resolution: 0.005", 0.04mm 64th
  • Accuracy: 0.001"/ per 1"
  • Battery: 3V CR2032 (included)

    Product Features:

  • 0-6" Full Range Digital Height, Depth, & Welding Thickness
  • 3-Way Meausre: Horizontal, Vertical, 90 degree angle
  • 3-Way Reading: Inch, Inch Fractional, Metric
  • EZ View: Super Large LCD Display
  • 3 Angles on Gauge body: 70, 80, 90
  • Heavy Duty Polycarbonate Frame for Self Starting
  • 2 Hardened Steel Measure Anvil: Flat & Point (included)
  • Strong Lock.
