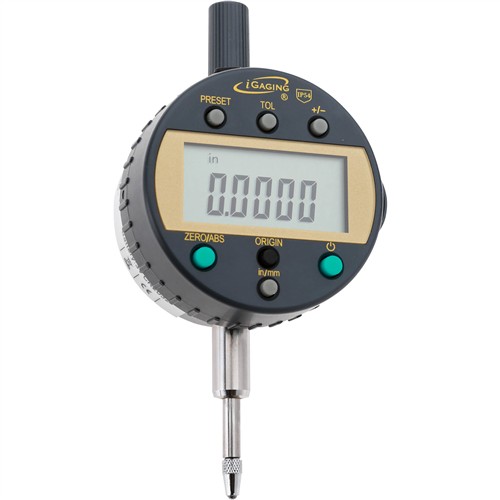

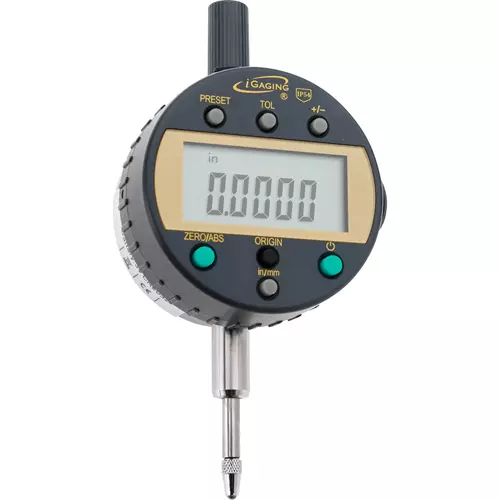

T26679 Absolute Electric Indicator

An accurate setup tool is essential for keeping your machines running true.

The T26679 iGaging Absolute Electric Indicator gives an absolute origin setting at any position.

Absolute encoder sensor always remembers and traces absolute origin zero or preset data.

To make it easier on the user, the T26679 has a large, easy-to-read LED display and can be rotated up to 330°.

Changing the measuring direction is as easy as adjusting the positive up or positive down.

This indicator also features IP54 Protection, SPC data output, and runs on 3V CR2032 battery power.

SPECIFICATIONS:

• Range: 0-0.5"/0.0005mm
• Resolution: 0.0005"/0.01mm
• Accuracy: 0.0005"/0.01mm
• Repeatability: 0.0005"/0.01mm

FEATURES:

• SPC/USB Data Port
• ABSOLUTE encoder technology
• IP54 Protection
• Read and convert Inch/mm display
• Origin set
• Preset value
• Tolerance function
• Zero/ABS - Switch between incremental and absolute measuring
• Super large LCD display
• Shank diameter: 3/8"
• Carbide tip
• 4-48 threaded tip
