Lumberjack Tools T24603 - 1", 1-1/2" and 2" Pro Series Master Kit Tenon Cutter

The Lumberjack Tools 1", 1-1/2" & 2" Pro Series Master Kit is a complete all purpose - build anything package that gives you small, medium, and large tenon joint cutting capabilities. With this heavy-duty kit, you can build beds, railings, coffee and end tables, chairs, benches and anything you can dream. Used by homeowners, hobbyists and professional users, you can cut structural, semi and non structural joints for your indoor and outdoor projects.

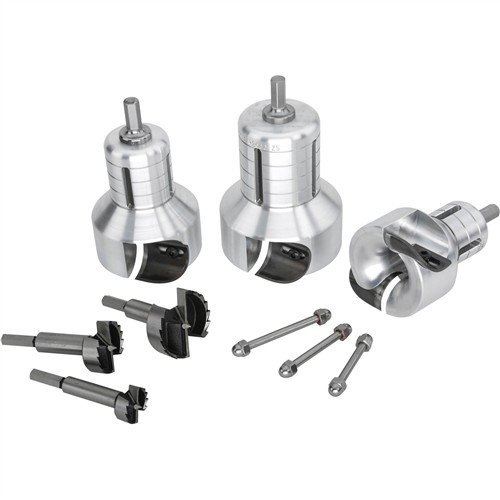

KIT INCLUDES:

• 1" Pro Series Tenon Cutter
• 1-1/2" Pro Series Tenon Cutter
• 2" Pro Series Tenon Cutter
• Quick Stop System
• 1" Forster Drill Bit
• 1 1/2" Forster Drill Bit
• 2" Forster Drill Bit
• 10 Piece EZ Plan Booklet

TENON CUTTER FEATURES:

• Dual Blade Cutting Technology
• Precision, CNC Machined
• Billet, T651 - 6061 Aircraft Grade Aluminum
• Hardened, Precision Ground High Carbon Tool Steel Blades
• Blades can be Resharpened or Replaced
• Threaded - Replaceable Shank
• In-Sight Measurement System
  • measure & see tenon during cutting operation
• Quick Stop Tenon System
  • allows user to place a "dead stop" internal to the tool for quick, accurate repetitive cutting
• Lifetime Guarantee from the manufacturer

TENON CUTTER SPECIFICATIONS:

TTR1000 - 1" Tenon Cutter

• Tenon Diameter = 1"
• Maximum Tenon Length = Up to 2-1/2"
• Maximum Log Diameter = Up to 2-1/2"
• Drill Type: Single Speed 1/2" drill - less than 550 RPMs
• Radius Shoulder Profile
• Weight = 2.25 lb.
• Diameter = 3.250"
• Length = 5"

TTR1500 - 1-1/2" Tenon Cutter

• Tenon Diameter = 1-1/2"
• Maximum Tenon Length = Up to 3"
• Maximum Log Diameter = Up to 3"
• Drill Type: Single Speed 1/2" drill - less than 550 RPMs
• Radius Shoulder Profile
• Weight = 2.75 lbs
• Diameter = 3.750"
• Length = 6.125"

TTR2000 - 2" Tenon Cutter

• Tenon Diameter = 2"
• Maximum Tenon Length = Up to 3-1/2"
• Maximum Log Diameter = Up to 3-1/2"
• Drill Type: Single Speed 1/2" drill - less than 550 RPMs
• Radius Shoulder Profile
• Weight = 3.25 lb.
• Diameter = 4.250"
• Length = 7.125"

FORSTNER DRILL BITS:

• Type = Brad Point - Saw Tooth
• Hole Diameter = 1"
• Hole Diameter = 1-1/2"
• Hole Diameter = 2"
• Shank Size = 3/8"
