Item: T24588 | Model: TTR0500

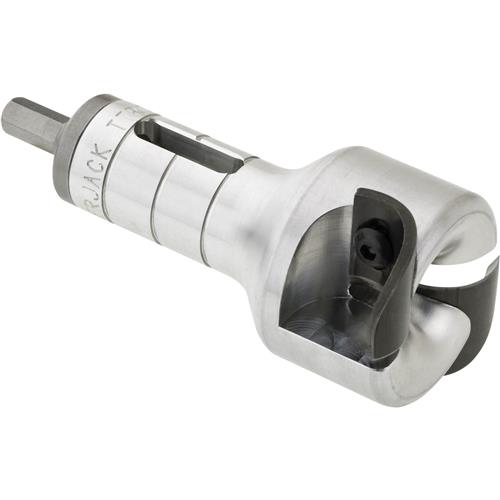

Image for Lumberjack Tools T24588 - 1/2" Radius Shoulder Tenon Cutter
Image 1 of 10 selected

1 Product Video

Lumberjack Tools T24588 - 1/2" Radius Shoulder Tenon Cutter

This 1/2" tenon joint is perfect for the hardwood chair builders. Cutting those chair spindles, stretchers and stringers can be easily done with your cordless drill and this tool. This heavy-duty, compact, small joint cutter is great for all the delicate and architectural projects you have. Made in the USA.

FEATURES:
  • Dual Blade Cutting Technology
  • Precision, CNC Machined
  • Billet, T651 - 6061 Aircraft Grade Aluminum
  • Hardened, Precision Ground High Carbon Tool Steel Blades
  • Blades can be Resharpened or Replaced
  • Threaded - Replaceable Shank
  • In-Sight Measurement System - measure & see tenon during cutting operation
  • Quick Stop Tenon System
  • allows user to place a "dead stop" internal to the tool for quick, accurate repetitive cutting
  • Lifetime Guarantee from the manufacturer


SPECIFICATIONS:
  • Tenon Diameter = 1/2"
  • Maximum Tenon Length = Up to 2-1/2"
  • Maximum Log Diameter = Up to 1-1/2"
  • Drill Type: or Corded Variable-Speed 3/8" or 1/2" drill - less than 750 RPM's
  • Radius Shoulder Profile
  • Weight = 1 lbs
  • Diameter = 1.875"
  • Length = 4.062"
