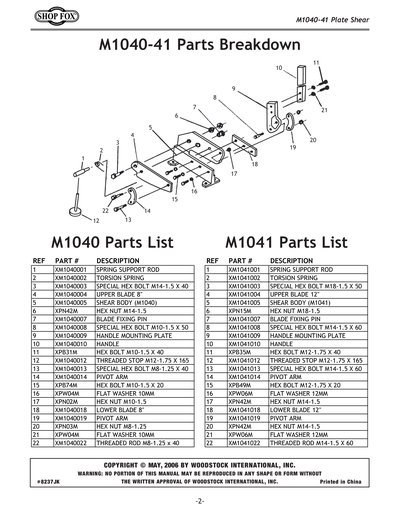

Parts for M1041 12" Plate Shear

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
SPRING SUPPORT ROD
P
TORSION SPRING
P
UPPER BLADE HEX BOLT M18-1.5 X 50
P
UPPER BLADE 12"
P
SHEAR BODY
PXM1041006
Now: PN15M
HEX NUT M18-1.5
Price
N/A
P
BLADE FIXING PIN
P
HANDLE MOUNTING PLATE HEX BOLT M14-1.5 X
P
HANDLE MOUNTING PLATE
P
HANDLE
PXM1041011
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
PXM1041012
THREADED STOP M12-1.75 X 165
Price
N/A
PXM1041013
HANDLE MOUNTING PLATE HEX BOLT M14-1.5 X
Price
N/A
P
PIVOT ARM
PXM1041015
Now: PB49M
HEX BOLT M12-1.75 X 20
Price
N/A
PXM1041016
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PXM1041017
Now: PN42M
HEX NUT M14-1.5
Price
N/A
P
LOWER BLADE 12"
P
PIVOT ARM
PXM1041020
Now: PN42M
HEX NUT M14-1.5
Price
N/A
PXM1041021
Now: PW06M
FLAT WASHER 12MM
Price
N/A
P
THREADED ROD M14-1.5 X 60
P
CARTON FOR M1041
P
COMPLETE BOX 2 OF 2 FOR M1041
