Parts for M1111 - 6" x 21" 1 HP Deluxe Variable-Speed Mill/Drill

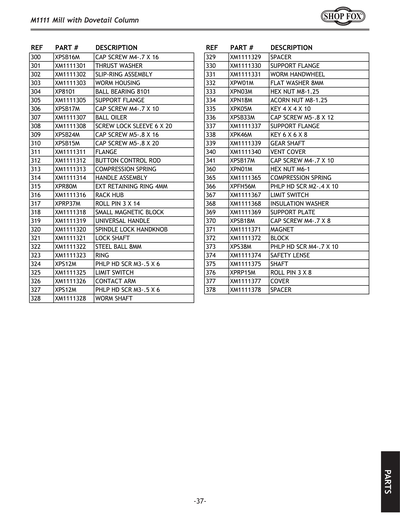

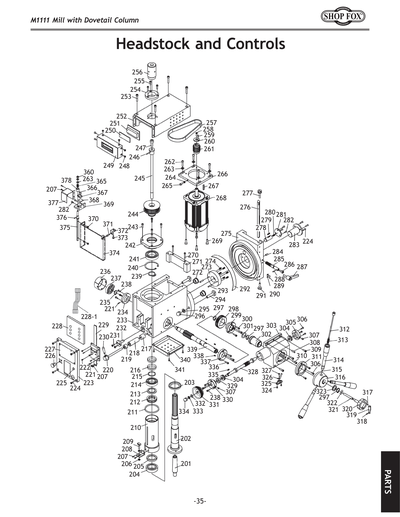

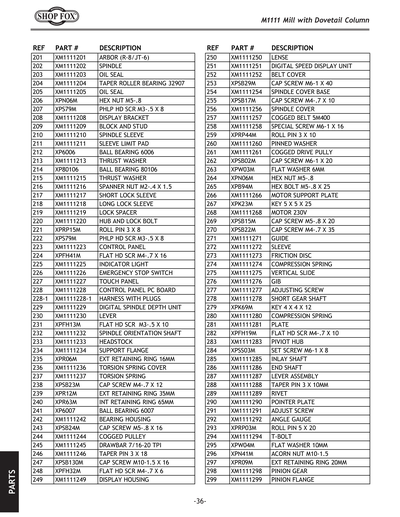

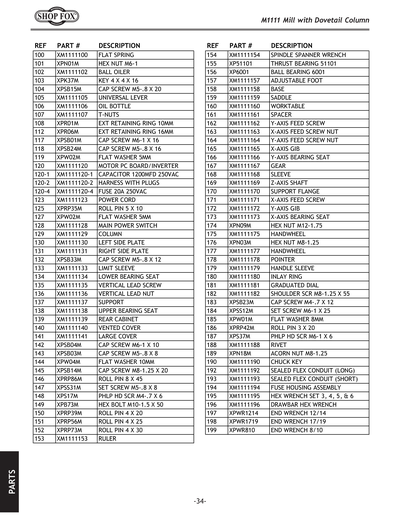

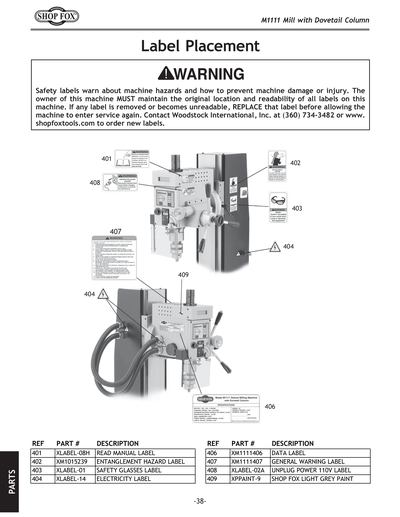

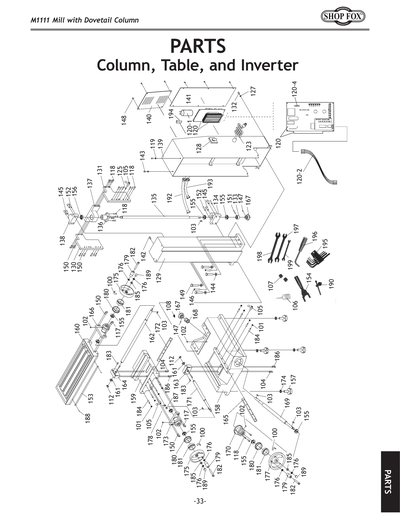

Part Diagram for M1111
Part Diagram for M1111
Part Diagram for M1111
Part Diagram for M1111
Part Diagram for M1111
Part Diagram for M1111
Part Diagram for M1111
Part Diagram for M1111
Part Diagram for M1111
Part Diagram for M1111
Part Diagram for M1111
Part Diagram for M1111

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
P
FLAT SPRING
Price
$1.49
PXM1111101
HEX NUT M6-1
Price
N/A
P
BALL OILER
Price
$1.49
PXM1111103
KEY 4 X 4 X 16
Price
N/A
PXM1111104
CAP SCREW M5-.8 X 20
Price
N/A
PXM1111105
UNIVERSAL LEVER
Item is no longer available
Price
N/A
PXM1111106
OIL BOTTLE
Price
N/A
PXM1111107
T-NUT
Item is no longer available
Price
N/A
PXM1111108
EXT RETAINING RING 10MM
Price
N/A
PXM1111112
EXT RETAINING RING 16MM
Price
N/A
PXM1111117
CAP SCREW M6-1 X 16
Price
N/A
PXM1111118
CAP SCREW M5-.8 X 16
Price
N/A
PXM1111119
FLAT WASHER 5MM
Price
N/A
PXM1111120
E-STOP & CIRCUIT BOARD ASSY V2.07.18
Price
N/A
PXM1111120-1
E-STOP & CIRCUIT BOARD ASSY V2.07.18
Price
N/A
PXM1111120-2
E-STOP & CIRCUIT BOARD ASSY V2.07.18
Price
N/A
PXM1111120-4
E-STOP & CIRCUIT BOARD ASSY V2.07.18
Price
N/A
PXM1111120V2
MOTOR PC BOARD/INVERTER V2.07.18
Item is no longer available
Price
N/A
PXM1111120V2-1
MOTOR PC BOARD/INVERTER V2.07.18
Price
N/A
PXM1111120V2-2
MOTOR PC BOARD/INVERTER V2.07.18
Price
N/A
PXM1111120V2-4
MOTOR PC BOARD/INVERTER V2.07.18
Price
N/A
PXM1111123
POWER CORD
Item is no longer available
Price
N/A
PXM1111125
ROLL PIN 5 X 10
Price
N/A
PXM1111127
FLAT WASHER 5MM
Price
N/A
P
MAIN POWER SWITCH
Price
$8.95
P
COLUMN
Price
$162.15
P
LEFT SIDE PLATE
Price
$16.40
P
RIGHT SIDE PLATE
Price
$17.00
PXM1111132
CAP SCREW M5-.8 X 12
Price
N/A
PXM1111133
LIMIT SLEEVE
Item is no longer available
Price
N/A
PXM1111134
LOWER BEARING SEAT
Item is no longer available
Price
N/A
P
VERTICAL LEAD SCREW
Price
$15.85
P
VERTICAL LEAD NUT
Price
$27.05
P
SUPPORT
Price
$12.10
PXM1111138
UPPER BEARING SEAT
Item is no longer available
Price
N/A
PXM1111139
REAR CABINET
Item is no longer available
Price
N/A
P
VENTED COVER
Price
$3.45
PXM1111141
LARGE COVER
Item is no longer available
Price
N/A
PXM1111142
CAP SCREW M6-1 X 10
Price
N/A
PXM1111143
CAP SCREW 5/16-18 X 1
Price
N/A
PXM1111144
FLAT WASHER 10MM
Price
N/A
PXM1111145
CAP SCREW M8-1.25 X 20
Price
N/A
PXM1111146
ROLL PIN 8 X 45
Price
N/A
PXM1111147
SET SCREW M5-.8 X 8
Price
N/A
PXM1111148
PHLP HD SCR M4-.7 X 6
Price
N/A
PXM1111149
HEX BOLT M10-1.5 X 50
Price
N/A
PXM1111150
ROLL PIN 4 X 20
Price
N/A
PXM1111151
ROLL PIN 4 X 25
Price
N/A
PXM1111152
ROLL PIN 4 X 30
Price
N/A
PXM1111153
RULER
Item is no longer available
Price
N/A
P
SPINDLE SPANNER WRENCH
Price
$7.95
PXM1111155
THRUST BEARING 51101
Price
N/A
PXM1111156
BALL BEARING 6001ZZ
Price
N/A
P
ADJUSTABLE FOOT
Price
$2.90
PXM1111158
BASE
Item is no longer available
Price
N/A
P
SADDLE
Price
$65.00
P
WORKTABLE
Price
$182.60
P
SPACER
Price
$1.90
P
Y-AXIS FEED SCREW
Price
$17.25
P
X-AXIS FEED SCREW NUT
Price
$19.00
P
Y-AXIS FEED SCREW NUT
Price
$23.75
PXM1111165
X-AXIS GIB
Item is no longer available
Price
N/A
P
Y-AXIS BEARING SEAT
Price
$8.95
P
GEAR
Price
$11.50
P
SLEEVE
Price
$1.49
P
Z-AXIS SHAFT
Price
$9.80
PXM1111170
SUPPORT FLANGE
Item is no longer available
Price
N/A
P
X-AXIS FEED SCREW
Price
$7.20
PXM1111172
Y-AXIS GIB
Item is no longer available
Price
N/A
PXM1111173
X-AXIS BEARING SEAT
Item is no longer available
Price
N/A
PXM1111174
HEX NUT M12-1.75
Price
N/A
PXM1111175
HANDWHEEL
Item is no longer available
Price
N/A
PXM1111176
HEX NUT M8-1.25
Price
N/A
P
HANDWHEEL
Price
$15.85
PXM1111178
POINTER
Item is no longer available
Price
N/A
P
HANDLE SLEEVE
Price
$1.90
P
INLAY RING
Price
$5.20
PXM1111181
GRADUATED DIAL
Item is no longer available
Price
N/A
P
SHOULDER SCR M8-1.25 X 55
Price
$1.90
PXM1111183
CAP SCREW M4-.7 X 12
Price
N/A
PXM1111184
SET SCREW M6-1 X 25
Price
N/A
PXM1111185
FLAT WASHER 8MM
Price
N/A
PXM1111186
ROLL PIN 3 X 20
Price
N/A
PXM1111187
PHLP HD SCR M6-1 X 6
Price
N/A
PXM1111188
RIVET
Item is no longer available
Price
N/A
PXM1111189
ACORN NUT M8-1.25
Price
N/A
P
CHUCK KEY
Price
$6.90
PXM1111192
SEALED FLEX CONDUIT (LONG)
Item is no longer available
Price
N/A
PXM1111193
SEALED FLEX CONDUIT (SHORT)
Item is no longer available
Price
N/A
PXM1111194
FUSE HOUSING ASSEMBLY
Item is no longer available
Price
N/A
PXM1111195
HEX WRENCH SET
Item is no longer available
Price
N/A
PXM1111196
DRAWBAR HEX WRENCH
Price
N/A
PXM1111197
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
PXM1111198
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
PXM1111199
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
PXM1111201
ARBOR JT6
Price
N/A
PXM1111201-1
CHUCK 1-16MM JT6
Price
N/A
P
SPINDLE
Price
$65.60
P
OIL SEAL
Price
$7.60
P
TAPER ROLLER BEARING 32907
Price
$21.30
P
OIL SEAL
Price
$6.50
PXM1111206
HEX NUT M5-.8
Price
N/A
PXM1111207
PHLP HD SCR M3-.5 X 8
Price
N/A
PXM1111208
DISPLAY BRACKET
Item is no longer available
Price
N/A
PXM1111209
BLOCK HEAD STUD
Item is no longer available
Price
N/A
P
SPINDLE SLEEVE
Price
$60.10
P
SLEEVE LIMIT PAD
Price
$15.85
PXM1111212
THRUST BEARING 8106
Price
N/A
P
THRUST WASHER
Price
$2.90
PXM1111214
BALL BEARING 6006ZZ
Price
N/A
P
THRUST WASHER
Price
$3.65
P
SPANNER NUT M2-.4 X 1.5
Price
$1.90
PXM1111217
SHORT LOCK SLEEVE
Item is no longer available
Price
N/A
PXM1111218
LONG LOCK SLEEVE
Item is no longer available
Price
N/A
PXM1111219
LOCK SPACER
Item is no longer available
Price
N/A
PXM1111220
HUB AND LOCK BOLT
Item is no longer available
Price
N/A
PXM1111221
ROLL PIN 3 X 8
Price
N/A
PXM1111222
PHLP HD SCR M3-.5 X 8
Price
N/A
PXM1111223
E-STOP & CIRCUIT BOARD ASSY V2.07.18
Price
N/A
PXM1111223V2
CONTROL PANEL V2.07.18
Item is no longer available
Price
N/A
PXM1111224
FLAT HD SCR M4-.7 X 16
Price
N/A
PXM1111225
INDICATOR LIGHT
Item is no longer available
Price
N/A
P
***USE PXM1111226V2A***
Price
$20.60
PXM1111226V2
E-STOP BUTTON KEDU HY57B V2.07.18
Price
N/A
P
E-STOP & CIRCUIT BOARD ASSY V2.07.18
Price
$394.45
P
TOUCH PANEL
Price
$6.90
PXM1111228
CONTROL PANEL PC BOARD V2.04.07
Price
N/A
PXM1111228-1
HARNESS WITH PLUGS
Item is no longer available
Price
N/A
PXM1111229
DIGITAL SPINDLE DEPTH UNIT
Price
N/A
PXM1111230
LEVER
Item is no longer available
Price
N/A
PXM1111231
FLAT HD SCR M6-1 X 50
Price
N/A
PXM1111232
SPINDLE ORIENTATION SHAFT
Item is no longer available
Price
N/A
PXM1111233
HEADSTOCK
Item is no longer available
Price
N/A
PXM1111234
SUPPORT FLANGE
Item is no longer available
Price
N/A
PXM1111235
EXT RETAINING RING 16MM
Price
N/A
P
TORSION SPRING COVER
Price
$6.35
P
TORSION SPRING
Price
$1.90
PXM1111238
CAP SCREW M4-.7 X 12
Price
N/A
PXM1111239
EXT RETAINING RING 35MM
Price
N/A
PXM1111240
INT RETAINING RING 65MM
Price
N/A
PXM1111241
BALL BEARING 6007ZZ
Price
N/A
PXM1111242
BEARING HOUSING
Price
N/A
PXM1111243
CAP SCREW M5-.8 X 16
Price
N/A
PXM1111244
COGGED PULLEY
Item is no longer available
Price
N/A
PXM1111245
DRAWBAR 7/16-20 TPI
Price
N/A
P
TAPER PIN 3 X 18
Price
$1.90
PXM1111247
CAP SCREW M10-1.5 X 16
Price
N/A
PXM1111248
FLAT HD SCR M4-.7 X 6
Price
N/A
PXM1111249
DISPLAY HOUSING
Price
N/A
PXM1111250
LENSE
Price
N/A
PXM1111251
DIGITAL SPEED DISPLAY UNIT V2.04.07
Price
N/A
P
BELT COVER
Price
$37.95
PXM1111253
CAP SCREW M6-1 X 40
Price
N/A
P
SPINDLE COVER BASE
Price
$4.60
PXM1111255
CAP SCREW M4-.7 X 10
Price
N/A
PXM1111256
SPINDLE COVER
Item is no longer available
Price
N/A
P
COGGED BELT 5M400
Price
$16.20
PXM1111258
Cogged Drive Pulley Screw M6-1 X 16
Item is no longer available
Price
N/A
PXM1111259
ROLL PIN 3 X 10
Price
N/A
PXM1111260
PINNED WASHER
Item is no longer available
Price
N/A
PXM1111261
COGGED DRIVE PULLY
Item is no longer available
Price
N/A
PXM1111262
CAP SCREW M6-1 X 20
Price
N/A
PXM1111263
FLAT WASHER 6MM
Price
N/A
PXM1111264
HEX NUT M5-.8
Price
N/A
PXM1111265
HEX BOLT M5-.8 X 25
Price
N/A
PXM1111266
MOTOR SUPPORT PLATE
Item is no longer available
Price
N/A
PXM1111267
KEY 5 X 5 X 25
Price
N/A
PXM1111268
MOTOR 230V V2.04.07
Price
N/A
PXM1111269
CAP SCREW M5-.8 X 20
Price
N/A
PXM1111270
CAP SCREW M4-.7 X 35
Price
N/A
PXM1111271
GUIDE
Item is no longer available
Price
N/A
PXM1111272
SLEEVE
Item is no longer available
Price
N/A
PXM1111273
FRICTION DISC
Item is no longer available
Price
N/A
PXM1111274
COMPRESSION SPRING
Item is no longer available
Price
N/A
PXM1111275
VERTICAL SLIDE
Item is no longer available
Price
N/A
PXM1111276
GIB
Item is no longer available
Price
N/A
P
ADJUSTING SCREW
Price
$4.90
PXM1111278
SHORT GEAR SHAFT
Item is no longer available
Price
N/A
PXM1111279
KEY 4 X 4 X 12
Price
N/A
PXM1111280
COMPRESSION SPRING
Item is no longer available
Price
N/A
PXM1111281
PLATE
Item is no longer available
Price
N/A
PXM1111282
FLAT HD SCR M4-.7 X 10
Price
N/A
PXM1111283
PIVIOT HUB
Item is no longer available
Price
N/A
PXM1111284
SET SCREW M6-1 X 8
Price
N/A
P
INLAY SHAFT
Price
$4.35
PXM1111286
END SHAFT
Price
N/A
PXM1111287
LEVER ASSY
Price
N/A
P
TAPER PIN 3 X 10
Price
$1.90
PXM1111289
RIVET
Item is no longer available
Price
N/A
PXM1111290
POINTER PLATE
Item is no longer available
Price
N/A
P
ADJUST SCREW
Price
$1.75
PXM1111292
ANGLE GAUGE
Item is no longer available
Price
N/A
PXM1111293
ROLL PIN 5 X 20
Price
N/A
P
T-BOLT
Price
$2.90
PXM1111295
FLAT WASHER 10MM
Price
N/A
PXM1111296
HEX NUT M25-2 LH
Price
N/A
PXM1111297
EXT RETAINING RING 20MM
Price
N/A
PXM1111298
PINION GEAR
Item is no longer available
Price
N/A
PXM1111299
PINION FLANGE
Item is no longer available
Price
N/A
PXM1111300
CAP SCREW M4-.7 X 16
Price
N/A
PXM1111301
THRUST WASHER
Item is no longer available
Price
N/A
PXM1111302
SLIP-RING ASSEMBLY
Item is no longer available
Price
N/A
PXM1111303
WORM HOUSING
Item is no longer available
Price
N/A
PXM1111304
THRUST BEARING 8101
Price
N/A
PXM1111305
SUPPORT FLANGE
Item is no longer available
Price
N/A
PXM1111306
CAP SCREW M4-.7 X 10
Price
N/A
PXM1111307
BALL OILER
Item is no longer available
Price
N/A
PXM1111308
SCREW LOCK SLEEVE 6 X 20
Item is no longer available
Price
N/A
PXM1111309
CAP SCREW M5-.8 X 16
Price
N/A
PXM1111310
CAP SCREW M5-.8 X 20
Price
N/A
PXM1111311
FLANGE
Item is no longer available
Price
N/A
P
BUTTON CONTROL ROD
Price
$2.60
P
COMPRESSION SPRING
Price
$1.90
P
HANDLE ASSEMBLY
Price
$7.20
PXM1111315
INT RETAINING RING 50MM
Price
N/A
PXM1111316
RACK HUB
Item is no longer available
Price
N/A
PXM1111317
ROLL PIN 3 X 14
Price
N/A
PXM1111318
SMALL MAGNETIC BLOCK
Item is no longer available
Price
N/A
PXM1111319
UNIVERSAL HANDLE
Item is no longer available
Price
N/A
PXM1111320
SPINDLE LOCK HANDKNOB
Item is no longer available
Price
N/A
PXM1111321
LOCK SHAFT
Item is no longer available
Price
N/A
PXM1111322
STEEL BALL 8MM
Item is no longer available
Price
N/A
PXM1111323
RING
Item is no longer available
Price
N/A
PXM1111324
PHLP HD SCR M3-.5 X 6
Price
N/A
PXM1111325
LIMIT SWITCH
Item is no longer available
Price
N/A
PXM1111326
CONTACT ARM
Item is no longer available
Price
N/A
PXM1111327
PHLP HD SCR M3-.5 X 6
Price
N/A
P
WORM SHAFT
Price
$10.95
PXM1111329
SPACER
Item is no longer available
Price
N/A
PXM1111330
SUPPORT FLANGE
Item is no longer available
Price
N/A
PXM1111331
WORM HANDWHEEL
Item is no longer available
Price
N/A
PXM1111332
FLAT WASHER 8MM
Price
N/A
PXM1111333
HEX NUT M8-1.25
Price
N/A
PXM1111334
ACORN NUT M8-1.25
Price
N/A
PXM1111335
KEY 4 X 4 X 10
Price
N/A
PXM1111336
CAP SCREW M5-.8 X 12
Price
N/A
PXM1111337
SUPPORT FLANGE
Item is no longer available
Price
N/A
PXM1111338
KEY 6 X 6 X 8
Price
N/A
PXM1111339
GEAR SHAFT
Item is no longer available
Price
N/A
PXM1111340
VENT COVER
Item is no longer available
Price
N/A
PXM1111341
CAP SCREW M4-.7 X 10
Price
N/A
PXM1111360
HEX NUT M6-1
Price
N/A
P
COMPRESSION SPRING
Price
$1.49
PXM1111366
FLAT HD SCR M2-.4 X 10
Price
N/A
PXM1111367
LIMIT SWITCH
Item is no longer available
Price
N/A
PXM1111368
INSULATION WASHER
Item is no longer available
Price
N/A
PXM1111369
SUPPORT PLATE
Item is no longer available
Price
N/A
PXM1111370
CAP SCREW M4-.7 X 8
Price
N/A
P
MAGNET
Price
$1.49
P
BLOCK
Price
$6.05
PXM1111373
PHLP HD SCR M4-.7 X 10
Price
N/A
P
SAFETY LENSE
Price
$14.40
P
SHAFT
Price
$5.20
PXM1111376
ROLL PIN 3 X 8
Price
N/A
P
COVER
Price
$3.45
P
SPACER
Price
$2.60
PXM1111401
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
PXM1111402
ENTANGLEMENT HAZARD LABEL
Price
N/A
PXM1111403
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
PXM1111404
ELECTRICITY 1.4W X 1.2H
Price
N/A
P
DATA LABEL
Price
$1.00
PXM1111407
GENERAL WARNING LABEL
Item is no longer available
Price
N/A
PXM1111408
DISCONNECT 110V 3.8W X 2H
Price
N/A
PXM1111409
LIGHT GREY REF G9733
Price
N/A
P
MANUAL M1111 MFG 07/07 V1.05.07
Price
$14.65
