Parts for M1116 - 6" x 20" Variable-Speed Mill/Drill with DRO

Part Diagram for M1116
Part Diagram for M1116
Part Diagram for M1116
Part Diagram for M1116
Part Diagram for M1116
Part Diagram for M1116
Part Diagram for M1116
Part Diagram for M1116
Part Diagram for M1116
Part Diagram for M1116
Part Diagram for M1116
Part Diagram for M1116
Part Diagram for M1116
Part Diagram for M1116

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

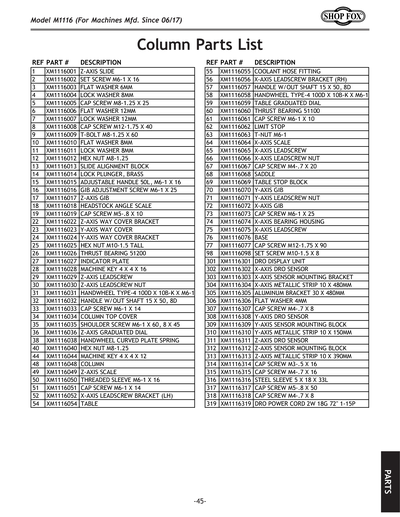

Ref #
Part #
Description
***USE PXM1116410***
Item is no longer available
Price
N/A
PXM1116001
Z-AXIS SLIDE
Item is no longer available
Price
N/A
PXM1116002
SET SCREW M6-1 X 16
Price
N/A
PXM1116003
FLAT WASHER 6MM
Price
N/A
PXM1116004
LOCK WASHER 8MM
Price
N/A
PXM1116005
CAP SCREW M8-1.25 X 25
Price
N/A
PXM1116006
FLAT WASHER 12MM
Price
N/A
PXM1116007
LOCK WASHER 12MM
Price
N/A
PXM1116008
CAP SCREW M12-1.75 X 40
Price
N/A
PXM1116009
T-BOLT M8-1.25 X 60
Item is no longer available
Price
N/A
PXM1116010
FLAT WASHER 8MM
Price
N/A
PXM1116011
LOCK WASHER 8MM
Price
N/A
PXM1116012
HEX NUT M8-1.25
Price
N/A
PXM1116013
SLIDE ALIGNMENT BLOCK
Item is no longer available
Price
N/A
PXM1116014
LOCK PLUNGER, BRASS
Item is no longer available
Price
N/A
P
ADJUSTABLE HANDLE 50L, M6-1 X 16
Price
$8.35
PXM1116016
GIB ADJUSTMENT SCREW M6-1 X 25
Item is no longer available
Price
N/A
PXM1116017
Z-AXIS GIB
Item is no longer available
Price
N/A
PXM1116018
HEADSTOCK ANGLE SCALE
Item is no longer available
Price
N/A
PXM1116019
CAP SCREW M5-.8 X 10
Price
N/A
PXM1116022
Z-AXIS WAY COVER BRACKET
Item is no longer available
Price
N/A
PXM1116023
Y-AXIS WAY COVER
Item is no longer available
Price
N/A
PXM1116024
Y-AXIS WAY COVER BRACKET
Item is no longer available
Price
N/A
P
HEX NUT M10-1.5 TALL
Price
$1.90
PXM1116026
THRUST BEARING 51200
Price
N/A
PXM1116027
INDICATOR PLATE
Item is no longer available
Price
N/A
PXM1116028
KEY 4 X 4 X 16
Price
N/A
P
Z-AXIS LEADSCREW
Price
$26.35
PXM1116030
Z-AXIS LEADSCREW NUT
Item is no longer available
Price
N/A
P
HANDWHEEL TYPE-4 100D X 10B-K X M6-1
Price
$32.95
P
HANDLE W/OUT SHAFT 15 X 50, 8D
Price
$10.35
PXM1116033
CAP SCREW M6-1 X 14
Price
N/A
PXM1116034
COLUMN TOP COVER
Item is no longer available
Price
N/A
P
SHOULDER SCREW M6-1 X 60, 8 X 45
Price
$11.20
P
Z-AXIS GRADUATED DIAL
Price
$9.90
P
HANDWHEEL CURVED PLATE SPRING
Price
$1.49
PXM1116040
HEX NUT M8-1.25
Price
N/A
PXM1116044
KEY 4 X 4 X 12
Price
N/A
PXM1116048
COLUMN
Item is no longer available
Price
N/A
PXM1116049
Z-AXIS SCALE
Item is no longer available
Price
N/A
PXM1116050
THREADED SLEEVE M6-1 X 16
Item is no longer available
Price
N/A
PXM1116051
CAP SCREW M6-1 X 14
Price
N/A
PXM1116052
X-AXIS LEADSCREW BRACKET (LH)
Item is no longer available
Price
N/A
PXM1116054
TABLE
Item is no longer available
Price
N/A
PXM1116055
COOLANT HOSE FITTING
Item is no longer available
Price
N/A
PXM1116056
X-AXIS LEADSCREW BRACKET (RH)
Item is no longer available
Price
N/A
PXM1116057
HANDLE W/OUT SHAFT 15 X 50, 8D
Price
N/A
PXM1116058
HANDWHEEL TYPE-4 100D X 10B-K X M6-1
Price
N/A
PXM1116059
TABLE GRADUATED DIAL
Item is no longer available
Price
N/A
PXM1116060
THRUST BEARING 51100
Price
N/A
PXM1116061
CAP SCREW M6-1 X 10
Price
N/A
PXM1116062
LIMIT STOP
Item is no longer available
Price
N/A
PXM1116063
T-NUT M6-1
Item is no longer available
Price
N/A
PXM1116064
X-AXIS SCALE
Item is no longer available
Price
N/A
PXM1116065
X-AXIS LEADSCREW
Item is no longer available
Price
N/A
PXM1116066
X-AXIS LEADSCREW NUT
Item is no longer available
Price
N/A
PXM1116067
CAP SCREW M4-.7 X 20
Price
N/A
PXM1116068
SADDLE
Item is no longer available
Price
N/A
PXM1116069
TABLE STOP BLOCK
Item is no longer available
Price
N/A
PXM1116070
Y-AXIS GIB
Item is no longer available
Price
N/A
PXM1116071
Y-AXIS LEADSCREW NUT
Item is no longer available
Price
N/A
PXM1116072
X-AXIS GIB
Item is no longer available
Price
N/A
PXM1116073
CAP SCREW M6-1 X 25
Price
N/A
PXM1116074
X-AXIS BEARING HOUSING
Item is no longer available
Price
N/A
PXM1116075
X-AXIS LEADSCREW
Item is no longer available
Price
N/A
PXM1116076
BASE
Item is no longer available
Price
N/A
PXM1116077
CAP SCREW M12-1.75 X 90
Price
N/A

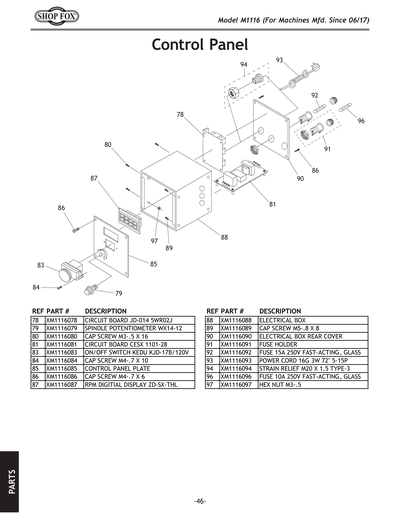

P
CIRCUIT BOARD JD-014 5WR02J
Price
$168.75
P
SPINDLE POTENTIOMETER WX14-12
Price
$4.95
PXM1116080
CAP SCREW M3-.5 X 16
Price
N/A
PXM1116081
CIRCUIT BOARD CESX 1101-28
Item is no longer available
Price
N/A
P
ON/OFF SWITCH KEDU KJD-17B/120V
Price
$35.10
PXM1116084
CAP SCREW M4-.7 X 10
Price
N/A
PXM1116085
CONTROL PANEL PLATE
Item is no longer available
Price
N/A
PXM1116086
CAP SCREW M4-.7 X 6
Price
N/A
PXM1116087
RPM DIGITIAL DISPLAY ZD-SX-THL
Item is no longer available
Price
N/A
PXM1116088
ELECTRICAL BOX
Item is no longer available
Price
N/A
PXM1116089
CAP SCREW M5-.8 X 8
Price
N/A
PXM1116090
ELECTRICAL BOX REAR COVER
Item is no longer available
Price
N/A
PXM1116091
FUSE HOLDER
Item is no longer available
Price
N/A
P
FUSE 15A 250V FAST-ACTING, GLASS
Price
$2.60
PXM1116093
POWER CORD 16G 3W 72" 5-15P
Item is no longer available
Price
N/A
PXM1116094
STRAIN RELIEF M20 X 1.5 TYPE-3
Item is no longer available
Price
N/A
P
FUSE 10A 250V FAST-ACTING, GLASS
Price
$2.60
PXM1116097
HEX NUT M3-.5
Price
N/A
PXM1116098
SET SCREW M10-1.5 X 8
Price
N/A

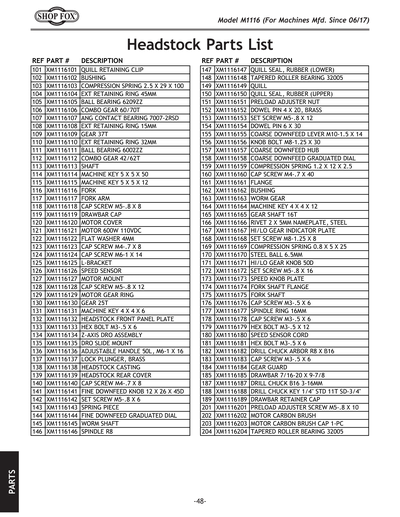

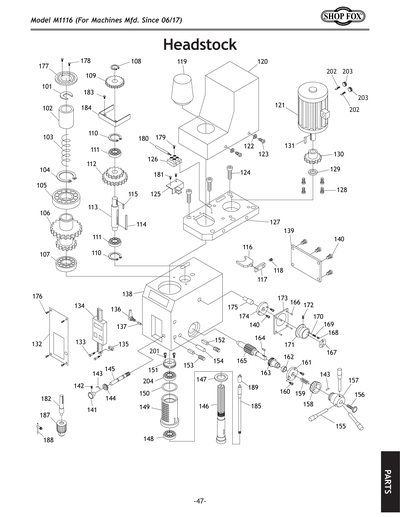

PXM1116101
QUILL RETAINING CLIP
Item is no longer available
Price
N/A
PXM1116102
BUSHING
Item is no longer available
Price
N/A
PXM1116103
COMPRESSION SPRING 2.5 X 29 X 100
Item is no longer available
Price
N/A
PXM1116104
EXT RETAINING RING 45MM
Price
N/A
PXM1116105
BALL BEARING 6209ZZ
Price
N/A
PXM1116106
COMBO GEAR 60/70T
Item is no longer available
Price
N/A
PXM1116107
ANG CONTACT BEARING 7007-2RSD
Item is no longer available
Price
N/A
PXM1116108
EXT RETAINING RING 15MM
Price
N/A
P
GEAR 37T
Price
$29.00
PXM1116110
EXT RETAINING RING 32MM
Price
N/A
PXM1116111
BALL BEARING 6002ZZ
Price
N/A
PXM1116112
COMBO GEAR 42/62T
Item is no longer available
Price
N/A
PXM1116113
SHAFT
Item is no longer available
Price
N/A
PXM1116114
KEY 5 X 5 X 50
Price
N/A
PXM1116115
KEY 5 X 5 X 12
Price
N/A
PXM1116116
FORK
Item is no longer available
Price
N/A
PXM1116117
FORK ARM
Item is no longer available
Price
N/A
PXM1116118
CAP SCREW M5-.8 X 8
Price
N/A
PXM1116119
DRAWBAR CAP
Item is no longer available
Price
N/A
PXM1116120
MOTOR COVER
Item is no longer available
Price
N/A
P
MOTOR 600W 110VDC
Price
$238.95
PXM1116122
FLAT WASHER 4MM
Price
N/A
PXM1116123
CAP SCREW M4-.7 X 8
Price
N/A
PXM1116124
CAP SCREW M6-1 X 14
Price
N/A
PXM1116125
L-BRACKET
Item is no longer available
Price
N/A
PXM1116126
SPEED SENSOR
Item is no longer available
Price
N/A
PXM1116127
MOTOR MOUNT
Item is no longer available
Price
N/A
PXM1116128
CAP SCREW M5-.8 X 12
Price
N/A
PXM1116129
MOTOR GEAR RING
Item is no longer available
Price
N/A
P
GEAR 25T
Price
$22.70
PXM1116131
KEY 4 X 4 X 6
Price
N/A
PXM1116132
HEADSTOCK FRONT PANEL PLATE
Item is no longer available
Price
N/A
PXM1116133
HEX BOLT M3-.5 X 6
Price
N/A
P
Z-AXIS DRO ASSEMBLY
Price
$144.90
PXM1116135
DRO SLIDE MOUNT
Item is no longer available
Price
N/A
PXM1116136
ADJUSTABLE HANDLE 50L, M6-1 X 16
Price
N/A
PXM1116137
LOCK PLUNGER, BRASS
Item is no longer available
Price
N/A
PXM1116138
HEADSTOCK CASTING
Item is no longer available
Price
N/A
PXM1116138-1
Z-AXIS COVER
Item is no longer available
Price
N/A
PXM1116138-2
Z-AXIS COVER SCREW
Item is no longer available
Price
N/A
PXM1116139
HEADSTOCK REAR COVER
Item is no longer available
Price
N/A
PXM1116140
CAP SCREW M4-.7 X 8
Price
N/A
PXM1116141
FINE DOWNFEED KNOB 12 X 26 X 45D
Item is no longer available
Price
N/A
PXM1116142
SET SCREW M5-.8 X 6
Price
N/A
PXM1116143
SPRING PIECE
Item is no longer available
Price
N/A
PXM1116144
FINE DOWNFEED GRADUATED DIAL
Item is no longer available
Price
N/A
PXM1116145
WORM SHAFT
Item is no longer available
Price
N/A
P
SPINDLE R8
Price
$127.60
PXM1116147
QUILL SEAL, RUBBER (LOWER)
Item is no longer available
Price
N/A
PXM1116148
TAPERED ROLLER BEARING 32005
Price
N/A
PXM1116149
QUILL
Item is no longer available
Price
N/A
PXM1116150
QUILL SEAL, RUBBER (UPPER)
Item is no longer available
Price
N/A
PXM1116151
PRELOAD ADJUSTER NUT
Item is no longer available
Price
N/A
PXM1116152
DOWEL PIN 4 X 20, BRASS
Item is no longer available
Price
N/A
PXM1116153
SET SCREW M5-.8 X 12
Price
N/A
PXM1116154
DOWEL PIN 6 X 30
Item is no longer available
Price
N/A
P
COARSE DOWNFEED LEVER M10-1.5 X 14
Price
$12.25
PXM1116156
KNOB BOLT M8-1.25 X 30
Item is no longer available
Price
N/A
PXM1116157
COARSE DOWNFEED HUB
Item is no longer available
Price
N/A
PXM1116158
COARSE DOWNFEED GRADUATED DIAL
Item is no longer available
Price
N/A
PXM1116159
COMPRESSION SPRING 1.2 X 12 X 2.5
Item is no longer available
Price
N/A
PXM1116160
CAP SCREW M4-.7 X 40
Price
N/A
PXM1116161
FLANGE
Item is no longer available
Price
N/A
PXM1116162
BUSHING
Item is no longer available
Price
N/A
PXM1116163
WORM GEAR
Item is no longer available
Price
N/A
PXM1116164
KEY 4 X 4 X 12
Price
N/A
PXM1116165
GEAR SHAFT 16T
Item is no longer available
Price
N/A
PXM1116166
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
PXM1116167
HI/LO GEAR INDICATOR PLATE
Item is no longer available
Price
N/A
PXM1116168
SET SCREW M8-1.25 X 8
Price
N/A
PXM1116169
COMPRESSION SPRING 0.8 X 5 X 25
Item is no longer available
Price
N/A
PXM1116170
STEEL BALL 6.5MM
Price
N/A
PXM1116171
HI/LO GEAR KNOB 50D
Item is no longer available
Price
N/A
PXM1116172
SET SCREW M5-.8 X 16
Price
N/A
PXM1116173
SPEED KNOB PLATE
Item is no longer available
Price
N/A
PXM1116174
FORK SHAFT FLANGE
Item is no longer available
Price
N/A
PXM1116175
FORK SHAFT
Item is no longer available
Price
N/A
PXM1116176
CAP SCREW M3-.5 X 6
Price
N/A
PXM1116177
SPINDLE RING 16MM
Item is no longer available
Price
N/A
PXM1116178
CAP SCREW M3-.5 X 6
Price
N/A
PXM1116179
HEX BOLT M3-.5 X 12
Price
N/A
PXM1116180
SPEED SENSOR CORD
Item is no longer available
Price
N/A
PXM1116181
HEX BOLT M3-.5 X 6
Price
N/A
P
DRILL CHUCK ARBOR R8 X B16
Price
$32.95
PXM1116183
CAP SCREW M3-.5 X 6
Price
N/A
PXM1116184
GEAR GUARD
Item is no longer available
Price
N/A
PXM1116185
DRAWBAR 7/16-20 X 9-7/8
Item is no longer available
Price
N/A
P
DRILL CHUCK B16 3-16MM
Price
$35.70
P
DRILL CHUCK KEY 1/4" STD 11T SD-3/4"
Price
$5.85
PXM1116189
DRAWBAR RETAINER CAP
Item is no longer available
Price
N/A
PXM1116190

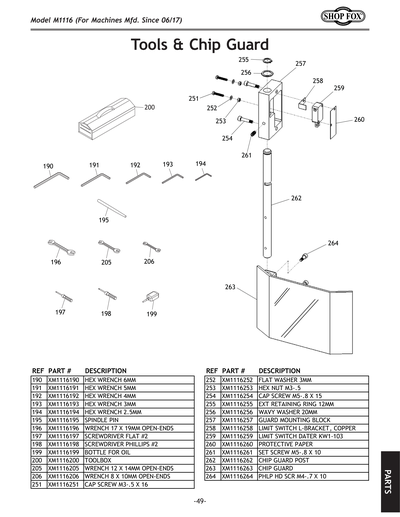

HEX WRENCH 6MM
Price
N/A
PXM1116191
HEX WRENCH 5MM
Price
N/A
PXM1116192
HEX WRENCH 4MM
Price
N/A
PXM1116193
HEX WRENCH 3MM
Price
N/A
PXM1116194
HEX WRENCH 2.5MM
Price
N/A
P
SPINDLE PIN
Price
$10.35
PXM1116196
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
PXM1116197
SCREWDRIVER FLAT #2
Price
N/A
PXM1116198
SCREWDRIVER PHILLIPS #2
Price
N/A
P
BOTTLE FOR OIL
Price
$8.35
P
TOOLBOX
Price
$28.55
PXM1116201
PRELOAD ADJUSTER SCREW M5-.8 X 10
Item is no longer available
Price
N/A
P
MOTOR CARBON BRUSH (2-PC)
Price
$9.10
PXM1116203
MOTOR CARBON BRUSH CAP 1-PC
Item is no longer available
Price
N/A
PXM1116204
TAPERED ROLLER BEARING 32005
Price
N/A
PXM1116205
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
PXM1116206
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
PXM1116207
HEX NUT M8-1.25
Price
N/A
PXM1116208
FLAT WASHER 8MM
Price
N/A
P
T-BOLT M8-1.25 X 55
Price
$6.90
PXM1116251
CAP SCREW M3-.5 X 16
Price
N/A
PXM1116252
FLAT WASHER 3MM
Price
N/A
PXM1116253
HEX NUT M3-.5
Price
N/A
PXM1116254
CAP SCREW M5-.8 X 15
Price
N/A
PXM1116255
EXT RETAINING RING 12MM
Price
N/A
PXM1116256
WAVY WASHER 20MM
Item is no longer available
Price
N/A
P
GUARD MOUNTING BLOCK
Price
$24.75
PXM1116258
LIMIT SWITCH L-BRACKET, COPPER
Item is no longer available
Price
N/A
PXM1116259
LIMIT SWITCH DATER KW1-103
Item is no longer available
Price
N/A
PXM1116260
PROTECTIVE PAPER
Item is no longer available
Price
N/A
PXM1116261
SET SCREW M5-.8 X 10
Price
N/A
P
CHIP GUARD POST
Price
$16.55
PXM1116263
CHIP GUARD
Item is no longer available
Price
N/A
PXM1116264
PHLP HD SCR M4-.7 X 10
Price
N/A
P

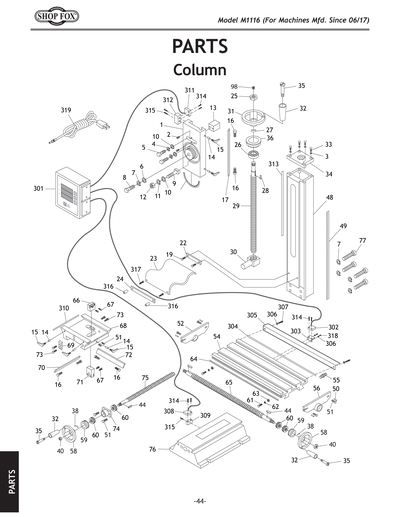

DRO DISPLAY UNIT
Price
$349.65
PXM1116302
X-AXIS DRO SENSOR
Item is no longer available
Price
N/A
PXM1116303
X-AXIS SENSOR MOUNTING BRACKET
Item is no longer available
Price
N/A
P
X-AXIS METALLIC STRIP 10 X 480MM
Price
$44.45
PXM1116305
ALUMINUM BRACKET 30 X 480MM
Item is no longer available
Price
N/A
PXM1116306
FLAT WASHER 4MM
Price
N/A
PXM1116307
CAP SCREW M4-.7 X 8
Price
N/A
PXM1116308
Y-AXIS DRO SENSOR
Item is no longer available
Price
N/A
PXM1116309
Y-AXIS SENSOR MOUNTING BLOCK
Item is no longer available
Price
N/A
PXM1116310
Y-AXIS METALLIC STRIP 10 X 150MM
Item is no longer available
Price
N/A
PXM1116311
Z-AXIS DRO SENSOR
Item is no longer available
Price
N/A
PXM1116312
Z-AXIS SENSOR MOUNTING BLOCK
Item is no longer available
Price
N/A
PXM1116313
Z-AXIS METALLIC STRIP 10 X 390MM
Item is no longer available
Price
N/A
PXM1116314
CAP SCREW M3-.5 X 16
Price
N/A
PXM1116315
CAP SCREW M4-.7 X 16
Price
N/A
PXM1116316
STEEL SLEEVE 5 X 18 X 33L
Item is no longer available
Price
N/A
PXM1116317
CAP SCREW M5-.8 X 50
Price
N/A
PXM1116318
CAP SCREW M4-.7 X 8
Price
N/A
PXM1116319
DRO POWER CORD 18G 2W 72" 1-15P
Item is no longer available
Price
N/A
PXM1116401

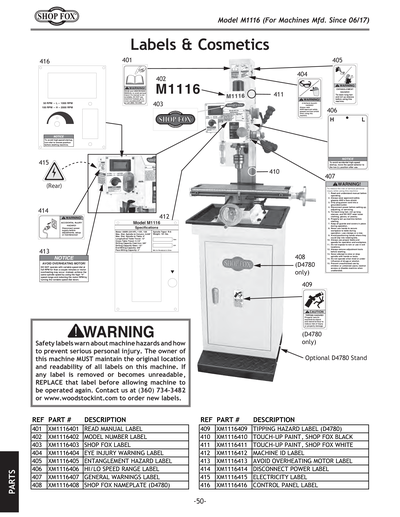

READ MANUAL 2.8W X 1.5H
Price
N/A
PXM1116402
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
PXM1116403
SHOP FOX LABEL
Item is no longer available
Price
N/A
PXM1116404
FACE SHIELD & SAFETY GLASSES 2W X 3.3H
Price
N/A
PXM1116405
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
PXM1116406
HI/LO SPEED RANGE LABEL
Item is no longer available
Price
N/A
PXM1116407
GENERAL WARNINGS LABEL
Item is no longer available
Price
N/A
PXM1116408
SHOP FOX NAMEPLATE-MEDIUM
Price
N/A
PXM1116409
TIPPING HAZARD LABEL
Item is no longer available
Price
N/A
PXM1116410
GLOSSY BLACK
Price
N/A
PXM1116411
SHOP FOX WHITE M1006
Price
N/A
PXM1116412
MACHINE ID LABEL
Item is no longer available
Price
N/A
PXM1116413
AVOID OVERHEATING MOTOR LABEL
Item is no longer available
Price
N/A
PXM1116414
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
PXM1116415
ELECTRICITY 1.4W X 1.2H
Price
N/A
PXM1116416
CONTROL PANEL LABEL
Item is no longer available
Price
N/A
PXM1116MAN
MANUAL M1116 MFD-06.17 V1.01.18
Item is no longer available
Price
N/A
