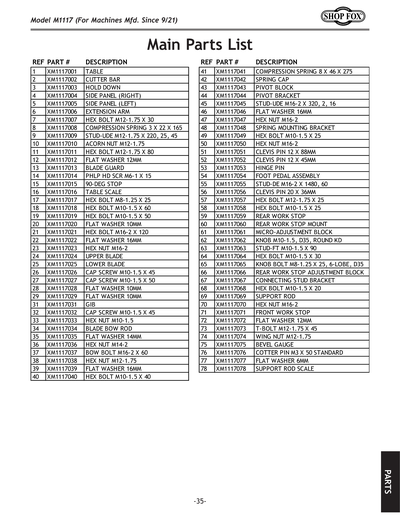

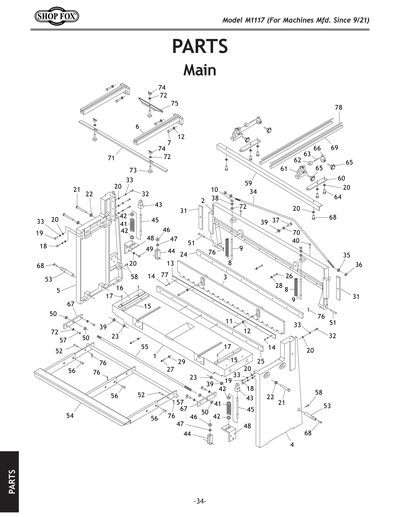

Parts for M1117 52" Sheet Metal Shear

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
TABLE
P
CUTTER BAR
P
HOLD DOWN
P
SIDE PANEL (RIGHT)
P
SIDE PANEL (LEFT)
P
EXTENSION ARM
PXM1117007
Now: PB27M
HEX BOLT M12-1.75 X 30
Price
N/A
PXM1117008
COMPRESSION SPRING 3 X 22 X 165
Price
N/A
PXM1117009
STUD-UDE M12-1.75 X 220, 25, 45
Price
N/A
PXM1117010
Now: PN26M
ACORN NUT M12-1.75
Price
N/A
PXM1117011
HEX BOLT M12-1.75 X 80
Price
N/A
PXM1117012
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PXM1117013
BLADE GUARD
Price
N/A
PXM1117014
PHLP HD SCR M6-1 X 15
Price
N/A
PXM1117015
90-DEG STOP
Price
N/A
PXM1117016
TABLE SCALE
Price
N/A
PXM1117017
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
PXM1117018
Now: PB34M
HEX BOLT M10-1.5 X 60
Price
N/A
PXM1117019
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
PXM1117020
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXM1117021
HEX BOLT M16-2 X 120
Price
N/A
PXM1117022
Now: PW08M
FLAT WASHER 16MM
Price
N/A
PXM1117023
Now: PN13M
HEX NUT M16-2
Price
N/A
PXM1117024
UPPER BLADE
Price
N/A
PXM1117025
LOWER BLADE
Price
N/A
PXM1117026
CAP SCREW M10-1.5 X 45
Price
N/A
PXM1117027
CAP SCREW M10-1.5 X 50
Price
N/A
PXM1117028
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXM1117029
Now: PW04M
FLAT WASHER 10MM
Price
N/A
P
GIB
PXM1117032
CAP SCREW M10-1.5 X 45
Price
N/A
PXM1117033
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PXM1117034
BLADE BOW ROD
Price
N/A
PXM1117035
Now: PW10M
FLAT WASHER 14MM
Price
N/A
PXM1117036
Now: PN32M
HEX NUT M14-2
Price
N/A
PXM1117037
BOW BOLT M16-2 X 60
Price
N/A
PXM1117038
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PXM1117039
Now: PW08M
FLAT WASHER 16MM
Price
N/A
PXM1117040
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
PXM1117041
COMPRESSION SPRING 8 X 46 X 275
Price
N/A
P
SPRING CAP
P
PIVOT BLOCK
P
PIVOT BRACKET
PXM1117045
STUD-UDE M16-2 X 320, 2, 16
Price
N/A
PXM1117046
Now: PW08M
FLAT WASHER 16MM
Price
N/A
PXM1117047
Now: PN13M
HEX NUT M16-2
Price
N/A
P
SPRING MOUNTING BRACKET
PXM1117049
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
PXM1117050
Now: PN13M
HEX NUT M16-2
Price
N/A
PXM1117051
CLEVIS PIN 12 X 88MM
Price
N/A
PXM1117052
CLEVIS PIN 12 X 45MM
Price
N/A
PXM1117053
HINGE PIN
Price
N/A
PXM1117054
FOOT PEDAL ASSEMBLY
Price
N/A
PXM1117055
STUD-DE M16-2 X 1480, 60
Price
N/A
PXM1117056
CLEVIS PIN 20 X 36MM
Price
N/A
PXM1117057
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
PXM1117058
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
PXM1117059
REAR WORK STOP
Price
N/A
PXM1117060
REAR WORK STOP MOUNT
Price
N/A
P
MICRO-ADJUSTMENT BLOCK
PXM1117062
KNOB M10-1.5, D35, ROUND KD
Price
N/A
PXM1117063
STUD-FT M10-1.5 X 90
Price
N/A
PXM1117064
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
PXM1117065
KNOB BOLT M8-1.25 X 25, 6-LOBE, D35
Price
N/A
P
REAR WORK STOP ADJUSTMENT BLOCK
P
CONNECTING STUD BRACKET
PXM1117068
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
PXM1117069
SUPPORT ROD
Price
N/A
PXM1117070
Now: PN13M
HEX NUT M16-2
Price
N/A
PXM1117071
FRONT WORK STOP
Price
N/A
PXM1117072
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PXM1117073
T-BOLT M12-1.75 X 45
Price
N/A
PXM1117074
WING NUT M12-1.75
Price
N/A
P
BEVEL GAUGE
PXM1117076
COTTER PIN M3 X 50 STANDARD
Price
N/A
PXM1117077
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXM1117078
SUPPORT ROD SCALE
Price
N/A
P

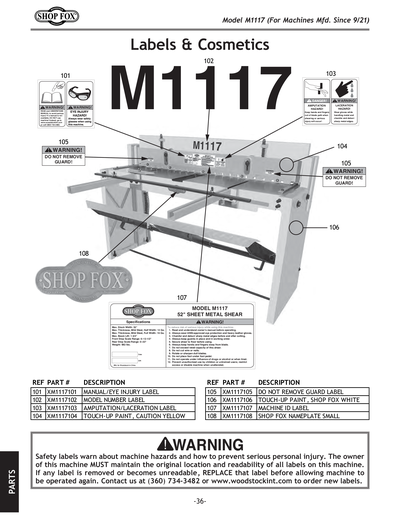

MANUAL/EYE INJURY LABEL
PXM1117104
YELLOW REF G5772
Price
N/A
PXM1117105
DO NOT REMOVE GUARD 2.1W X 1H
Price
N/A
PXM1117106
SHOP FOX OFF WHITE REF G9970 G9971
Price
N/A
P
MACHINE ID LABEL
PXM1117108
Now: D3375
Shop Fox Nameplate - Small
Price
N/A
P
MANUAL M1117 MFD-09.21+ V1.09.21
