Parts for M1118 - 48" Pan and Box Brake

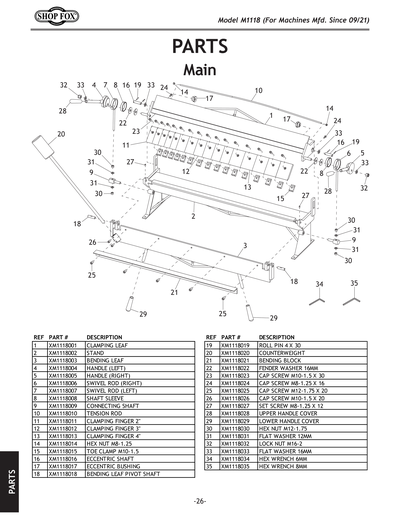

Part Diagram for M1118
Part Diagram for M1118
Part Diagram for M1118
Part Diagram for M1118

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
P
Price
$746.45
P
Price
$779.90
P
Price
$557.10
P
Price
$39.20
P
Price
$39.20
P
Price
$33.45
P
Price
$33.45
PXM1118008
SHAFT SLEEVE
Price
N/A
PXM1118009
CONNECTING SHAFT
Price
N/A
PXM1118010
TENSION ROD
Price
N/A
PXM1118011
CLAMPING FINGER 2"
Price
N/A
PXM1118012
CLAMPING FINGER 3"
Price
N/A
PXM1118013
CLAMPING FINGER 4"
Price
N/A
PXM1118014
HEX NUT M8-1.25
Price
N/A
PXM1118015
TOE CLAMP M10-1.5
Price
N/A
PXM1118016
ECCENTRIC SHAFT
Price
N/A
PXM1118017
ECCENTRIC BUSHING
Price
N/A
PXM1118018
BENDING LEAF PIVOT SHAFT
Price
N/A
PXM1118019
ROLL PIN 4 X 30
Price
N/A
PXM1118020
COUNTERWEIGHT
Price
N/A
PXM1118021
BENDING BLOCK
Price
N/A
PXM1118022
FENDER WASHER 16MM
Price
N/A
PXM1118023
CAP SCREW M10-1.5 X 30
Price
N/A
PXM1118024
CAP SCREW M8-1.25 X 16
Price
N/A
PXM1118025
CAP SCREW M12-1.75 X 20
Price
N/A
PXM1118026
CAP SCREW M10-1.5 X 20
Price
N/A
PXM1118027
SET SCREW M4-.7 X 8
Price
N/A
PXM1118028
UPPER HANDLE COVER
Price
N/A
PXM1118029
LOWER HANDLE COVER
Price
N/A
PXM1118030
HEX NUT M12-1.75
Price
N/A
PXM1118031
FLAT WASHER 12MM
Price
N/A
PXM1118032
LOCK NUT M16-2
Price
N/A
PXM1118033
FLAT WASHER 16MM
Price
N/A
PXM1118034
HEX WRENCH 6MM
Price
N/A
PXM1118035
HEX WRENCH 8MM
Price
N/A

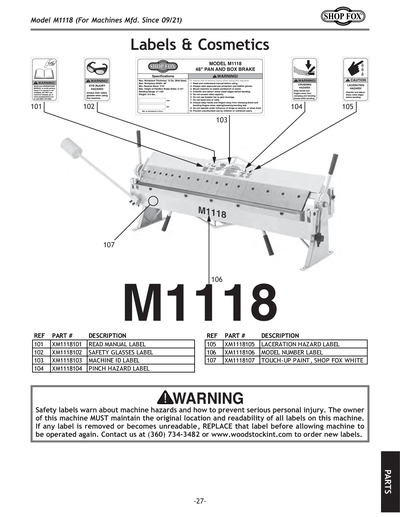

PXM1118101
READ MANUAL 1.5W X 2.5H
Price
N/A
PXM1118102
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
P
Price
$18.45
PXM1118104
PINCH HAZARD LABEL
Price
N/A
PXM1118105
LACERATION HAZARD LABEL
Price
N/A
P
Price
$18.45
PXM1118107
SHOP FOX WHITE M1006
Price
N/A
P
MANUAL M1118 MFD-09.21+ V1.10.21
Price
$1.75
