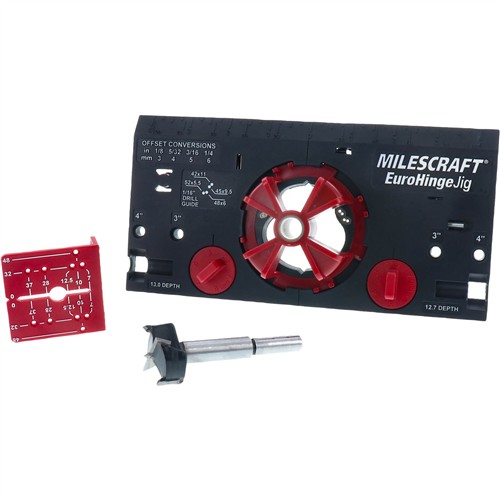

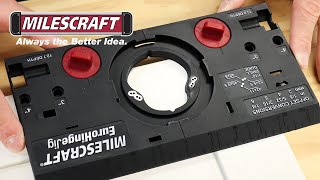

T33341 Milescraft Euro Hinge Jig
The Milescraft EuroHingeJig™ is perfect for reliable frame and frameless installation of 35mm concealed cabinet door hinges.
Two edge alignment knobs position the cup hole from the edge of the door, while the edge pin sets the distance from the top and bottom.
Easily set your cup hole depth with the included 35mm drill bit using the built-in depth setting fixtures.
The drill guide with metal bushing locks into the jig and creates a perfectly straight hinge cup hole.
Guide bushings built into body of jig let you pre-drill pilot holes in 4 common locations, making sure hinges are straight and the door closes true.
The hinge marking guide detaches from bottom of jig and allows you to transfer and mark center lines and hinge location to cabinet wall or frame.
It even has a feature to help position and mount your door to the cabinet.
The 1/16" diameter drill bit for pilot holes is included.
Contact Milescraft regarding warranties on their products and technical support.
