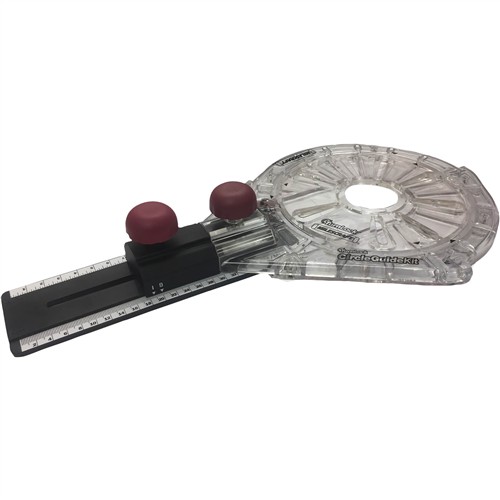

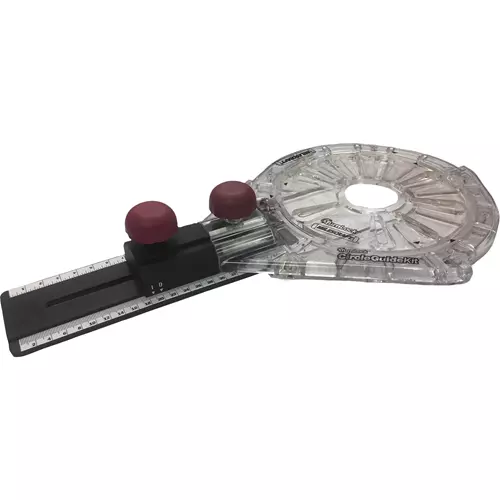

T33272 Milescraft Small Circle Compass

Expand the capabilities of your router with the SmallCircleCompass™ from Milescraft.

Easily cut small circles from 1-1/2" in diameter to 12" in diameter.

The easy readout window allows you to read the built-in imperial and metric scales for setting the diameter of both your inside and outside cuts.

This product is compatible with most routers with the included TurnLock™ base plate.

It allows for fast tool-free guide bushing and router attachment exchanges.

Contact Milescraft regarding warranties on their products and technical support.

SPECIFICATIONS:

• Bushing: 5/8" Long nose metal bushing
• Drill Bit: 3/32" Brad point drill bit
• Router Bit: 1/4" Straight router bit
• Material: Glass-filled nylon, durable polycarbonate, and metal

FEATURES:

• Built-in imperial and metric scales for setting the diameter of both your inside and outside cuts
• Cuts circles from 1-1/2" to 12" in diameter.
• Equipped with the patented TurnLock™ technology
• Allows for fast tool-free guide bushing and router attachment exchanges
• Thumb-activated lock/release mechanism enhances speed and safety when changing tools

INCLUDES:

• Small circle jig, circle guide head, TurnLock™ base plate, 1/4" straight router bit, drill bit, centering pin, bushing, and mounting hardware.
