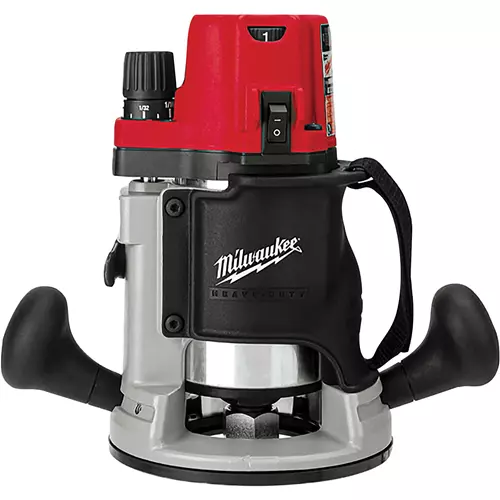

T34125 Milwaukee 2-1/4 HP EVS BodyGrip Router
A proven performing router to save you time and money.
With a low center of gravity design, Milwaukee's 5616-20 2-1/4 max HP electronic variable speed BodyGrip® Router offers a comfortable, well-balanced ride throughout the cut.
It features an industry-first BodyGrip® design–a comfortable rubber grip wrapped around the router's base with an adjustable, custom-fit hand strap, and two over-molded side handles–comfort is in the palm of your hands.
Whether left or right-handed, the router's design minimizes muscle fatigue while maximizing cut control and comfort during operation.
It is powered by a best-in-class, 13 amp, 2-1/4 max HP Milwaukee motor with electronic variable speed (10,000–24,000 RPM), premium motor feedback, and soft-start technology.
That soft-start technology that quickly, steadily ramps the motor up in stages, thus reducing tool jerking and wear on the brushes and bearings.
With 36 distinct speed settings, the user can precisely match the tool speed to the routing task at hand.
The router's premium electronic motor feedback circuitry maintains optimal cutting speed and power throughout a cut, regardless of load conditions.
The corded Milwaukee 5616-20 router features the industry’s first linear depth adjustment system with above-the-table access. It is the ideal solution for both free-hand and table-mounted routing. This system provides fast, accurate coarse adjustments to within 1/8" and micro-fine adjustments to within 1/64".
This revolutionary system can be accessed from above a router table with the included T-handle wrench or any 3/8" hex socket wrench with extension and simplifies the once tedious adjustment process required with other models.
For added protection when table-mounted, the router also features an exclusive motor contamination shield that keeps damaging debris out without sacrificing airflow and a durable, rubber shield for dust-free access to the height adjustment system.
The router's circuit board is completely submerged in a protective, flexible compound that protects it from drop-shocks, vibration, and damaging contamination.
Rounding out the defense is a heavy-duty, 22-amp switch, 100% sealed ball bearing motor construction, and a tough machined aluminum motor housing and base.
Every Milwaukee product comes with a limited warranty through the manufacturer.
SPECIFICATIONS:
- Motor: 2.2 HP, 120V, 12A
- No load RPM: 10,000–24,000
- Depth adjustment: 1-21/32"
- Collet diameter: 1/4"–1/2"
INCLUDES:
- 2-1/4 Max HP EVS BodyGrip® Router (5616-20)
- (2) 1-1/8" Collet wrenches
- 1/2" Collet
- 1/4" Collet
- T-handle wrench
