Item# H7020 Model# 5616-21

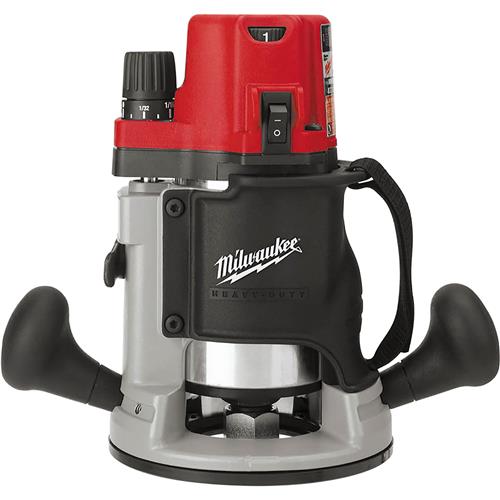

Milwaukee H7020 - 2-1/4 HP VS Bodygrip Router

$259.95
+$0.00  Shipping
+$0.00  Oversize
Milwaukee's 2-1/4 max HP electronic variable speed BodyGrip® Router offers the ultimate in router performance. Featuring an industry-first BodyGrip® design, a comfortable rubber grip wrapped around the router's base with an adjustable, custom fit handstrap, and two over-molded side handles, comfort is in the palm of your hands. With 36 distinct speed settings, the user can precisely match the tool speed to the routing task at hand. Finally, the router features motor soft-start technology that quickly, steadily ramps the motor up in stages, thus reducing tool jerking and wear on the brushes and bearings. Precise routing ensures one-pass quality profiles. to this end, Milwaukee's router features industry-first linear depth adjustment system with above-the-table access. The ideal solution for both free-hand and table-mounted routing, this industry-exclusive system provides fast, accurate coarse adjustments to within 1/8" and micro-fine adjustments to within 1/64". This revolutionary system can be accessed from above a router table with the included T-handle wrench or any 3/8" hex socket wrench with extension and simplifies the once tedious adjustment process required with other models. In addition, the new 2-1/4 max HP EVS BodyGrip® routers are built to last in the Milwaukee tradition. The router's circuit board is completely submerged in a protective, flexible compound that protects it from drop-shocks, vibration and damaging contamination. For added protection when table-mounted, the router also features an exclusive motor contamination shield that keeps damaging debris out without sacrificing airflow and a durable, rubber shield for dust-free access to the height adjustment system. Rounding out the defense is a heavy-duty, 22 Amp switch, 100% sealed ball bearing motor construction, and a tough machined aluminum motor housing and base.

Includes:
  • 2-1/4 Max HP EVS BodyGrip® Router
  • (2) 1-1/8" Collet Wrenches
  • 1/2" Collet
  • 1/4" Collet
  • T-Handle Wrench

    Features:
  • Powerful 13 Amp, 2-1/4 max HP Milwaukee Motor
  • Exclusive BodyGrip® design
  • Electronic variable speed (10,000-24,000 RPM)
  • Premium electronic feedback circuitry
  • Exclusive linear depth adjustment system with above-the-table access within 1/64"

    Specifications:
  • Amps:13
  • Cord Type: 8' Fixed
  • Height: 8-1/2"
  • Tool Warranty: 5 Years
  • Voltage: 120V AC
  • Weight: 8.8 lbs
  • Power Source: Corded
  • No Load RPM: 10,000-24,000
  • Max HP: 2.2
  • Depth Adjustment: 1-21/32"
  • Collet Diameter: 1/4"-1/2"
