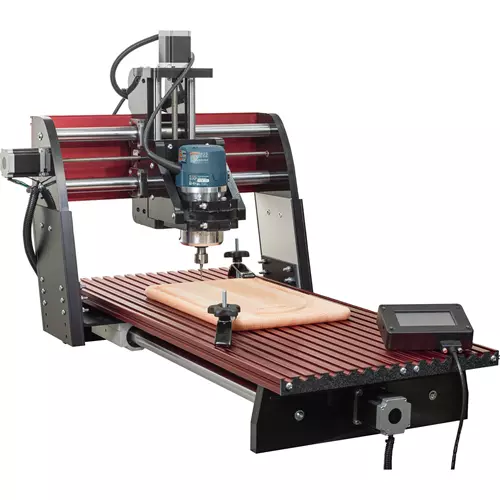

T30508 Next Wave CNC Shark HD400
The T30508 CNC Shark HD400 with Color Pendant Controller features a heavy-duty gantry reinforced with plate aluminum and a rigid interlocking aluminum table.
The Shark HD400 has anti-backlash, high precision lead screws on all 3 axes and is built to handle your large 2-1/4HP routers or the new T30506 water-cooled spindle.
To accommodate greater torque levels, the HD400 features adjustable bearings to give more stability during heavy cutting. Perfect for carving and machining a large variety of projects made from wood, soft metals or plastics.
Simply supply a PC computer with USB 2.0 port and any of the routers listed below, connect the USB cable to the controller box and load the software. Includes VCarve Desktop V10 Design software (a $350 value), Vector Art 3D Sampler Pack and CNC Shark control software.
The HD400 includes the Original Virtual Zero software (T30503 Touch Plate required). The exclusive software maps the surface of your table or workpiece and uses the map as a dynamic reference point. It also allows you to carve and machine stock that is bowed or intentionally convex to begin with.
A new electronics package expands the capabilities of the CNC Shark and allows laser, 4th-axis and water-cooled spindle attachments.
This Next Wave CNC has a two-year warranty through the manufacturer.
Contact Next Wave CNC regarding warranties on their products and lifetime technical support.
SPECIFICATIONS:
- Table dimensions: 16" x 36"
- XYZ travel: 13" x 25" x 7"
- Overall dimensions: 24-1/4"W x 36"L x 24-1/2"H
FEATURES:
- New anti-backlash, wear-compensated leadscrews on all axes
- New, stronger interlocking table designed for accuracy and less table flex
- Enhanced hardware controllers with expansion ports and pendant ability
- Improved design on Z-axis to allow heavier applications (like spindles)
- Adjustable bearings give more stability during heavy cutting X and Y axes have supported linear guides
- Aluminum and high-density polyethylene construction is designed for heavy use
- Automatic on/off software control of router controller box with aluminum case and push button e-stop pendant control capability included
- Router mount included (router sold separately)
- Requires a PC with a minimum 2 GHz multi-core CPU, 4GB of RAM, 300MB disk space, Windows 7+ or higher and a USB 2.0 port (not included)
- Includes VCarve Desktop V9 w/Cut 3-D capabilities
- Includes the Virtual Zero technology (requires optional T30503 touch plate accessory)
- Fully compatible with (sold separately): Bosch 1617 and 1618 Porter Cable 890 Series Porter Cable 690 Series DeWalt 610, 616, 618
- Made in USA
