Item: T24126 | Model: M7500
Maxline is an industrial compressed air piping system that is:
Maxline's multilayer construction can be easily bent by hand and maintain its desired shape, giving a professional appearance with no tubing sag. 100 ft rolls allow for faster installation times, with fewer joints. Its smooth interior walls will never build up scale or rust making an efficient air system. Recommended for larger buildings and tubing lengths up to 150' from the air compressor.
Maxline piping can be mounted on wall surfaces, in wall for new construction and be directly buried under ground or concrete. This system is easily configured and can be modified.
Maxline fittings are nickel plated brass designed for years of long term performance. Its double o-ring compression design is engineered to be a leakproof system, that can be easily disassembled and reused.
Specifications:
Maxline Master Kit Contains:
- Fast and easy to install
- Cost effective
- Leakproof
- Corrosion resistant
Maxline's multilayer construction can be easily bent by hand and maintain its desired shape, giving a professional appearance with no tubing sag. 100 ft rolls allow for faster installation times, with fewer joints. Its smooth interior walls will never build up scale or rust making an efficient air system. Recommended for larger buildings and tubing lengths up to 150' from the air compressor.
Maxline piping can be mounted on wall surfaces, in wall for new construction and be directly buried under ground or concrete. This system is easily configured and can be modified.
Maxline fittings are nickel plated brass designed for years of long term performance. Its double o-ring compression design is engineered to be a leakproof system, that can be easily disassembled and reused.
Specifications:
- Operating pressure: 175 PSI at 70°, 140 PSI at 140°
- Meets OSHA guidelines
- Temperature range: -40°F to 140°F
- Compatible with common compressor oils

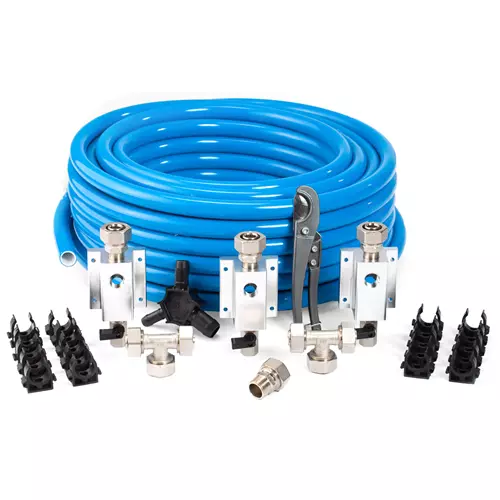

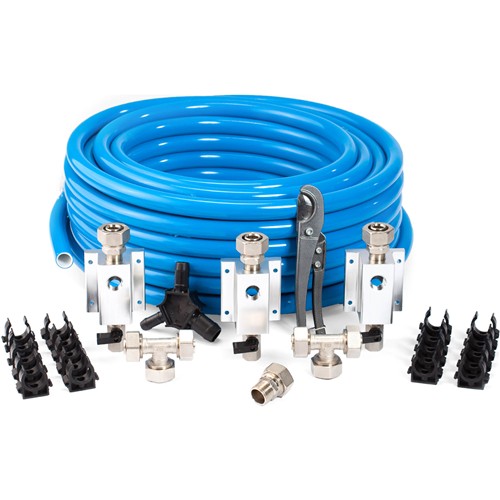

Maxline Master Kit Contains:
- 3/4" Tubing 100ft
- 3 Outlets
- 2 Tees
- 3/4" Male NPT Straight
- 20 Mount Clips
- Tools
