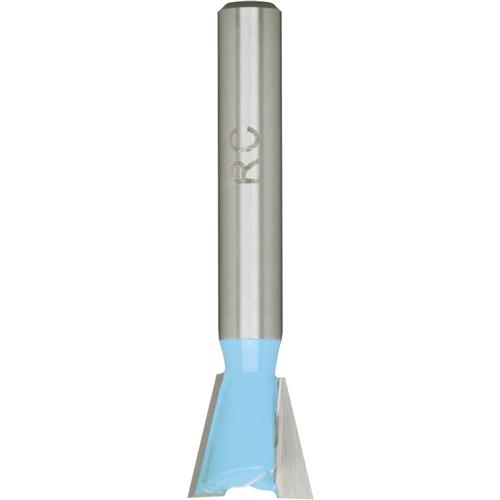

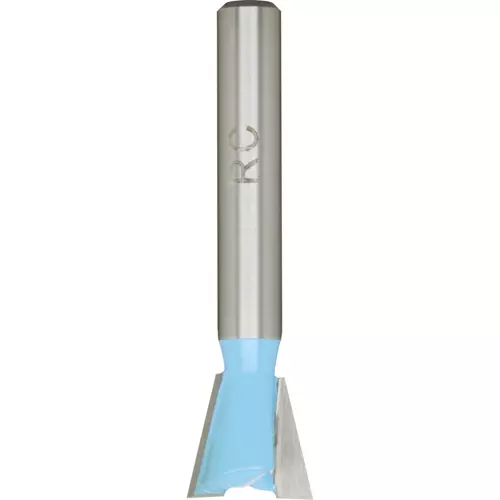

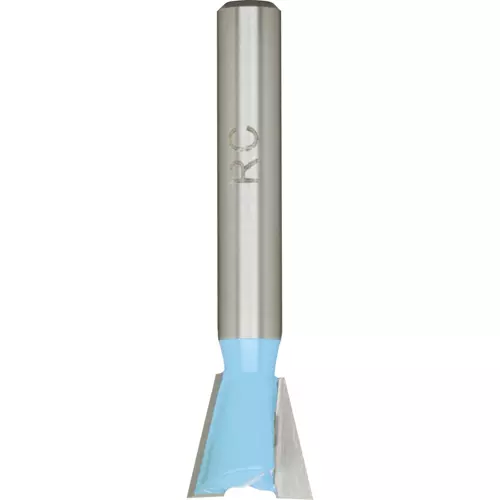

DC1066 17/32" 14° Dovetail 1/4" Shank

A 14° dovetail bit is a type of router bit to cut dovetail joints with an 14-degree angle between the tails and pins of the joint.

The 14° bit produces steeper and narrower tails and pins compared to an 8° dovetail bit.

Dovetail joints are commonly used in woodworking to provide strong and durable connections when joining two pieces of wood together at right angles.

Dovetail joints are the perfect choice for drawers and furniture casework when a traditional appearance is preferred.

A forward shear angle provides an extra clean cut.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Cutter diameter: 17/32"
• Cutting length: 1/2"
• Overall length: 1-5/8"
• Angle: 14°
• Shank diameter: 1/4"
