Item: DC2169 | Model: DC2169
Roman Carbide DC2169 - Stile & Rail Roman Ogee Set for Passage Door 3/4" Bore

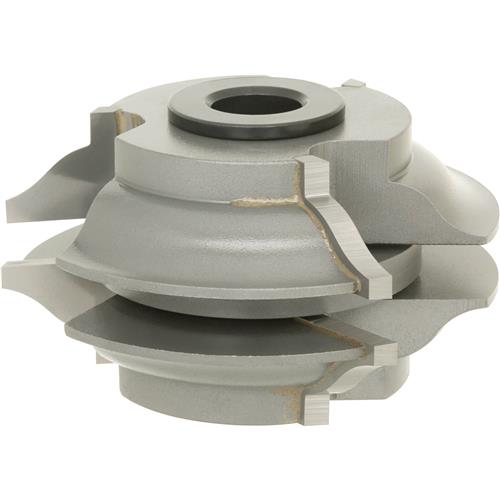

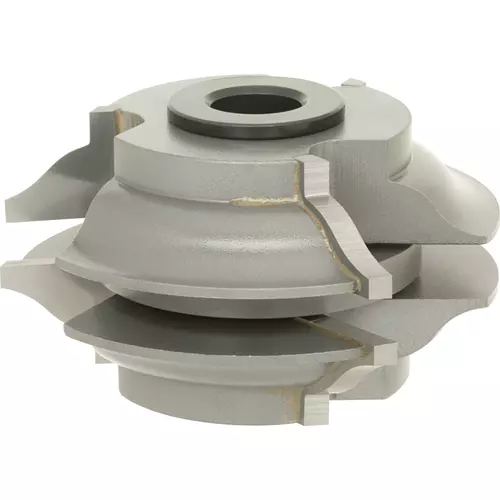

DC2169 3/4" Bore Roman Ogee Stile & Rail Passage Set
Achieve an intricate design using a durable and precise Roman ogee bit.
The DC2169 is an industrial-quality shaper cutter used to make decorative edges on passage doors.
A Roman ogee profile typically features a concave curve followed by a convex curve, resulting in an elegant and decorative edge.
The cutter can be used on woods, wood composites, plywood, and some plastics at 7,000 R.P.M.
Made in an ISO 9001 factory
SPECIFICATIONS:
- Cutter diameter: 2-7/8"
- Cutting length: 1-3/8"
- Cutting width: 1/2"
- Cutter speed: 7,000 RPM
- Bore: 3/4"
Actions for Products including purchasing, availability and wishlist
Product detail tabs
Overview
DC2169 3/4" Bore Roman Ogee Stile & Rail Passage Set
Achieve an intricate design using a durable and precise Roman ogee bit.
The DC2169 is an industrial-quality shaper cutter used to make decorative edges on passage doors.
A Roman ogee profile typically features a concave curve followed by a convex curve, resulting in an elegant and decorative edge.
The cutter can be used on woods, wood composites, plywood, and some plastics at 7,000 R.P.M.
Made in an ISO 9001 factory
SPECIFICATIONS:
- Cutter diameter: 2-7/8"
- Cutting length: 1-3/8"
- Cutting width: 1/2"
- Cutter speed: 7,000 RPM
- Bore: 3/4"
