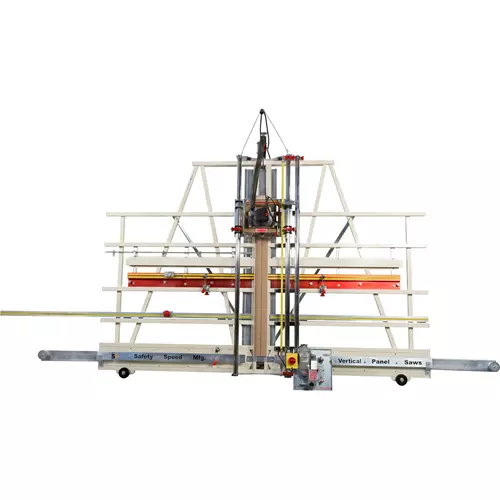

T33605 Safety Speed SR5UA ACM Panel Saw & Router Combination with Worm Drive and Accessories
This machine is a fully loaded solution for high production cutting and routing!
The routing capabilities of the T33605 Safety Speed SR5UA Vertical Panel Saw/Router Combination include making plow and cross dados as well as rabbet’s.
Routing features include a floating router head allowing the router to plunge into, and raise out of the panel at any time.
Additionally routing accessories include four clamps, and blind dado stops.
The unique design of this unit allows for accurate cutting and v-grooving of aluminum composite material (ACM) panels.
The SR5UA also features a unique floating router with a nylon guide guaranteeing a consistent depth of cut.
The saw can also be switched over to a router in less than one minute.
It also features a dust system in place to collect debris while cutting and routing.
Contact Safety Speed regarding technical support and their manufacturer warranty.
CSA certified
Please note: This item has a lead time of two weeks from time of order.
Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate service is not available.
Orders shipping outside of the lower 48 states will require a special quote.
Specifications:
- Weight: 636 lbs
- Dimensions: 120" x 17" x 92"
- Maximum cutting height: 62"
- Maximum rip cut: Unlimited
- Maximum cut thickness: 1-3/4"
- Saw blade diameter: 8"
Features:
- 3 hp, worm drive saw motor
- 3+ hp, heavy duty router motor
- 10' welded steel frame
- Chrome-plated 1-3/4" guide tubes
- 8 nylatron roller bearing system
- Adjustable vertical and horizontal rulers
- Quick change from vertical to horizontal cutting
- Thin material pressure guard
- Solid aluminum material rollers
- Counterweight system
- Adjustable floating router head
- Mid-Way Fence flip stop
- Backerboard
- 4 material clamps
- 2 blind dado stops
- Wheels
- Fixed Stand
- Extensions
- Left and right quick stop gauges
- Mid-Way Fence flip stop
- Dust hood and hose kit
- Hold down bar
- Specialty saw blade and router bit for v-grooving
