T33601 Safety Speed 6800 Vertical Panel Saw
Higher production cutting with a heavy duty worm driven motor.
The T33601 Safety Speed 6800 Vertical Panel Saw provides a 74" crosscut with an unlimited rip cut.
The 6800 panel saw features additional steel welded at a diagonal plane adding significant weight to the frame, a weighted pulley system for pulling the saw motor up and down the guide tubes vs a spring loaded counter balance, and additional bearings within the motor providing a tighter cutting tolerance.

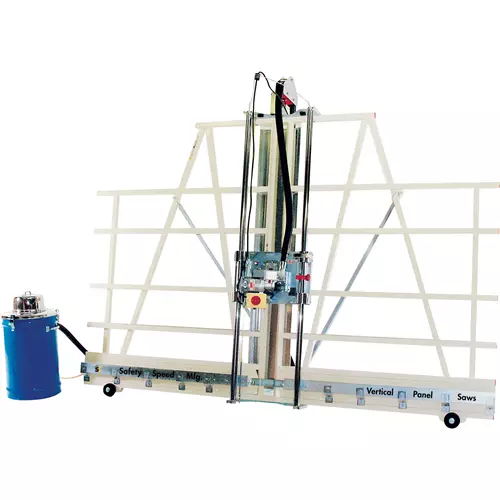

Photos are shown with a stand, wheels, and a dust kit, which are optional accessories.
Contact Safety Speed regarding technical support and their manufacturer warranty.
CSA certified
Please note: This item has a lead time of two weeks from time of order.
Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate service is not available.
Orders shipping outside of the lower 48 states will require a special quote.
Specifications:
- Weight: 660 lbs.
- Dimensions: 124" x 17" x 98"
- Maximum crosscut: 74"
- Maximum rip cut: Unlimited
- Cut Depth: 1-3/4"
- Frame length: 120"
- Saw blade diameter: 8"
- Motor amps and volts: 13 amps, 120V
Features:
- 3 hp worm driven heavy-duty saw motor
- 10' welded steel frame
- Chrome-plated 1 3/4" guide tubes
- 8 nylatron roller bearing system
- Adjustable vertical and horizontal rulers
- Quick change from vertical to horizontal cutting
- Thin material pressure guard
- Solid aluminum material rollers
- Enclosed counterweight system
- Integrated dust collection bonnet
