Parts for SB1017 5" X 6" HV Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

PSB1017001
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
PSB1017002
Now: PN05
HEX NUT 1/4-20
Price
N/A
PSB1017003
Now: PW06
FLAT WASHER 1/4
Price
N/A
P

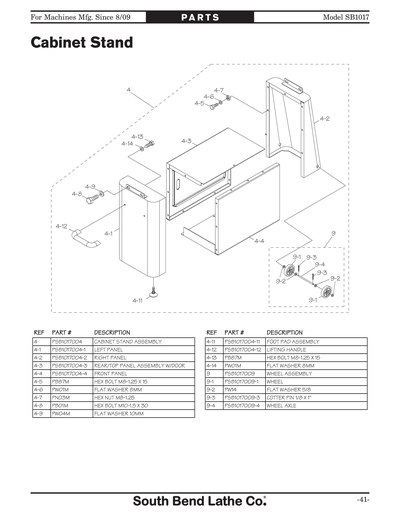

CABINET STAND ASSEMBLY
PSB1017004-13
Now: PB87M
HEX BOLT M8-1.25 X 15
Price
N/A
PSB1017004-14
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1017004-5
Now: PB87M
HEX BOLT M8-1.25 X 15
Price
N/A
PSB1017004-6
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1017004-7
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PSB1017004-8
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
PSB1017004-9
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB1017006
Now: PN02
HEX NUT 5/16-18
Price
N/A
PSB1017009
WHEEL ASSEMBLY
Item is no longer available
Price
N/A
P
WHEEL
PSB1017009-2
Now: PW14
FLAT WASHER 5/8
Price
N/A
PSB1017009-3
COTTER PIN 1/8 X 1"
Item is no longer available
Price
N/A
PSB1017009-4
WHEEL AXLE
Item is no longer available
Price
N/A
PSB1017015
TENSION ROD ASSEMBLY
Item is no longer available
Price
N/A
PSB1017016
MOTOR CORD 18G 3W
Item is no longer available
Price
N/A
P
HEAD PIVOT ROD
PSB1017018
Now: PLW04
LOCK WASHER 3/8
Price
N/A
P
WORK STOP BRACKET
PSB101702-001
*DISCD*GASKET,WINDOW FRAME
Item is no longer available
Price
N/A
PSB1017020
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
P
WORK STOP ROD
PSB1017022
WIRE CLIP
Item is no longer available
Price
N/A
PSB1017027
Now: PS05
PHLP HD SCR 5/16-18 X 1
Price
N/A
P
VISE HANDWHEEL ASSEMBLY
PSB1017028-1
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
PSB101703-001
*DISCD*GLASS,WINDOW 7-1/2X17-1/2
Item is no longer available
Price
N/A
PSB1017030
E-CLIP 10MM
Price
N/A
PSB1017031
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
PSB1017032
*DISCD*VISE LEADSCREW W/NUT
Item is no longer available
Price
N/A
P
VISE LEADSCREW
P
VISE LEADSCREW NUT
PSB1017034
SMALL VISE JAW
Item is no longer available
Price
N/A
PSB1017035
Now: PW02
FLAT WASHER 3/8
Price
N/A
PSB1017036
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
PSB1017037
MACHINE BASE
Item is no longer available
Price
N/A
PSB1017038
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
PSB1017039
VISE SCALE
Item is no longer available
Price
N/A
PSB1017040
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
P
WIRE CLIP
PSB1017043
CORD STRAIN RELIEF
Item is no longer available
Price
N/A
PSB1017044
POWER CORD 18G 3W 5-15 PLUG
Item is no longer available
Price
N/A
PSB1017045
RIGHT TENSION ROD BRACKET
Item is no longer available
Price
N/A
PSB1017045-1
LEFT TENSION ROD BRACKET
Item is no longer available
Price
N/A
PSB1017046
SPRING HOOK SCREW
Item is no longer available
Price
N/A
PSB1017047
TENSION SPRING
Item is no longer available
Price
N/A
P
LARGE VISE JAW
PSB1017050
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
PSB1017051
Now: PW07
FLAT WASHER 5/16
Price
N/A
PSB1017052
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
PSB1017053
Now: PB38
HEX BOLT 7/16-14 X 2
Price
N/A
PSB1017054
PIVOT BRACKET
Item is no longer available
Price
N/A
PSB1017055

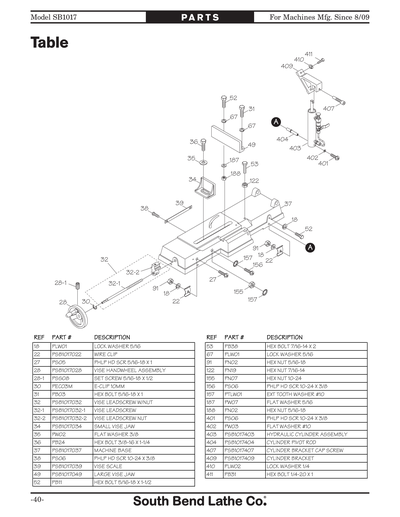

TABLE ASSEMBLY
Item is no longer available
Price
N/A
PSB1017055-1
Now: PFH03
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
PSB1017055-2
TABLE
Item is no longer available
Price
N/A
PSB1017055-3
TABLE BRACKET
Item is no longer available
Price
N/A
PSB1017055-4
Now: PN05
HEX NUT 1/4-20
Price
N/A
P
REAR SAFETY COVER
PSB1017059-1
Now: PW06
FLAT WASHER 1/4
Price
N/A
PSB1017059-2
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
P
FRONT SAFETY COVER
PSB1017059-4
CAP SCREW M5-.8 X 10
Price
N/A
PSB101706-001
*discd*gloves,24"-pair
Item is no longer available
Price
N/A
PSB1017061
Now: PSS38
SET SCREW 5/16-18 X 5/8
Price
N/A
P
REAR BLADE GUIDE ASSEMBLY
PSB1017063-1
REAR BLADE GUIDE BRACKET
Item is no longer available
Price
N/A
PSB1017063-10
Now: PFH19
FLAT HD SCR 1/4-20 X 3/8
Price
N/A
P
REAR BLADE GUIDE ARM
PSB1017063-12
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
PSB1017063-13
Now: PLW01
LOCK WASHER 5/16
Price
N/A
PSB1017063-14
Now: PW07
FLAT WASHER 5/16
Price
N/A
P
LEFT GUIDE SHAFT
P
RIGHT GUIDE SHAFT
P
GUIDE EXT RETAINING RING
PSB1017063-5
BALL BEARING 6000ZZ
Price
N/A
P
BEARING PIN 10 X 36
PSB1017063-7
Now: PN11
HEX NUT 3/8-24
Price
N/A
PSB1017063-8
Now: PLW04
LOCK WASHER 3/8
Price
N/A
P
DEFLECTOR PLATE
P
FRONT BLADE GUIDE ASSEMBLY
PSB1017064-1
FRONT BLADE GUIDE BRACKET
Item is no longer available
Price
N/A
PSB1017064-10
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
PSB1017064-11
Now: PLW01
LOCK WASHER 5/16
Price
N/A
PSB1017064-12
Now: PW07
FLAT WASHER 5/16
Price
N/A
PSB1017064-2
LEFT GUIDE SHAFT
Item is no longer available
Price
N/A
PSB1017064-3
RIGHT GUIDE SHAFT
Item is no longer available
Price
N/A
PSB1017064-4
GUIDE EXT RETAINING RING
Item is no longer available
Price
N/A
PSB1017064-5
BALL BEARING 6000ZZ
Price
N/A
PSB1017064-6
BEARING PIN 10 X 36
Item is no longer available
Price
N/A
PSB1017064-7
Now: PN11
HEX NUT 3/8-24
Price
N/A
PSB1017064-8
Now: PLW04
LOCK WASHER 3/8
Price
N/A
P
FRONT BLADE GUIDE ARM
PSB1017066
BLADE GUIDE KNOB BOLT 3/8-16 X 1-1/4
Item is no longer available
Price
N/A
PSB1017067
Now: PLW01
LOCK WASHER 5/16
Price
N/A
PSB1017069
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
PSB1017071
REAR BLADE WHEEL
Item is no longer available
Price
N/A
PSB1017071-1
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
P
BEARING COVER
PSB1017073
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
PSB1017074
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
PSB1017075
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
PSB1017076
SWITCH SHUT-OFF ASSEMBLY
Item is no longer available
Price
N/A
PSB1017076-1
SWITCH SHUT-OFF PLATE
Item is no longer available
Price
N/A
PSB1017076-2
Now: PW06
FLAT WASHER 1/4
Price
N/A
PSB1017076-3
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
P
FRONT BLADE WHEEL ASSEMBLY
P
FRONT BLADE WHEEL
P
FRONT BLADE WHEEL AXLE ASSEMBLY
P
SPACER
P
BLADE TENSION KNOB BOLT 3/8-16 X 94
PSB101708-001
*DISCD*FAN,EXHAUST ASSY.
Item is no longer available
Price
N/A
P
COMPRESSION SPRING
P

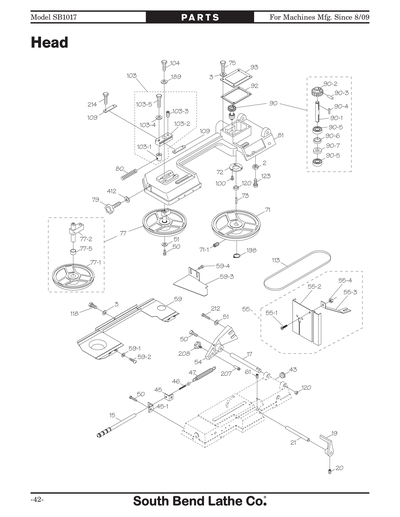

HEAD CASTING
PSB1017083
Now: PB78
HEX BOLT 1/2-13 X 1-1/4
Price
N/A
PSB1017084
*DISCD*MOTOR MOUNT PLATE
Item is no longer available
Price
N/A
P
MOTOR 1/2HP 110/220V 1PH
PSB1017085-4
S CAPACITOR 200M 125V 1-3/8 X 3
Price
N/A
P
MOTOR PULLEY
PSB1017086-1
Now: PSS17
SET SCREW 5/16-18 X 5/16
Price
N/A
P
OIL SEAL TC 15 X 35 X 7
PSB101709-001
*DISCD*ELBOW
Item is no longer available
Price
N/A
P
TRANSMISSION GEAR ASSEMBLY
PSB1017090-1
REAR BLADE WHEEL AXLE
Item is no longer available
Price
N/A
P
TRANSMISSION GEAR
PSB1017090-3
ROLL PIN 4 X 22
Price
N/A
PSB1017090-4
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
PSB1017090-5
BALL BEARING 6202ZZ
Price
N/A
P
BUSHING
P
OIL SEAL
PSB1017091
Now: PN02
HEX NUT 5/16-18
Price
N/A
P
GEARBOX GASKET
P
GEARBOX COVER
P
WORM GEAR SHAFT ASSEMBLY
P
WORM GEAR SHAFT
PSB1017094-2
BALL BEARING 6202ZZ
Price
N/A
P
SPACER
PSB1017098
CAP SCREW 5/16-18 X 1-3/4
Price
N/A
PSB1017099
Now: PW07
FLAT WASHER 5/16
Price
N/A
PSB101710-001
*DISCD*CLAMP
Item is no longer available
Price
N/A
PSB1017100
Now: PFH37
FLAT HD SCR 8-32 X 3/8
Price
N/A
P
WORM GEAR PULLEY
PSB1017101-1
Now: PSS18
SET SCREW 5/16-18 X 3/4
Price
N/A
P
BLADE TENSION SLIDE ASSEMBLY
P
SHAFT BLOCK
P
BLADE TENSION SLIDE PLATE
PSB1017103-3
Now: PSS38
SET SCREW 5/16-18 X 5/8
Price
N/A
PSB1017103-4
Now: PW07
FLAT WASHER 5/16
Price
N/A
PSB1017103-5
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
PSB1017104
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
P
BLADE TENSION SLIDE GUIDE
P
BELT COVER
P
BELT COVER PANEL
PSB1017112
V-BELT AX22
Price
N/A
PSB1017113
BLADE 14TPI 1/2 X 64-1/2"
Item is no longer available
Price
N/A
PSB1017116
Now: PW06
FLAT WASHER 1/4
Price
N/A
PSB1017118
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
PSB1017119
PLASTIC WASHER 10 X 20 X 2MM
Item is no longer available
Price
N/A
PSB101712-001
*DISCD*BAG,DUST
Item is no longer available
Price
N/A
P
BUSHING 19 X 17 X 7
PSB1017122
Now: PN19
HEX NUT 7/16-14
Price
N/A
PSB1017123
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
P
REAR BLADE GUIDE SAFETY COVER
P
FRONT BLADE GUIDE SAFETY COVER
PSB1017134
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
PSB101715-001
*DISCD*GASKET,DOOR
Item is no longer available
Price
N/A
PSB1017155
Now: PN07
HEX NUT 10-24
Price
N/A
PSB1017156
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
PSB1017157
EXT TOOTH WASHER #10
Price
N/A
PSB1017158
PLASTIC CUP
Item is no longer available
Price
N/A
PSB1017159
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
PSB1017187
Now: PW07
FLAT WASHER 5/16
Price
N/A
PSB1017188
Now: PN02
HEX NUT 5/16-18
Price
N/A
PSB1017189
Now: PW07
FLAT WASHER 5/16
Price
N/A
PSB1017198
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
PSB1017203

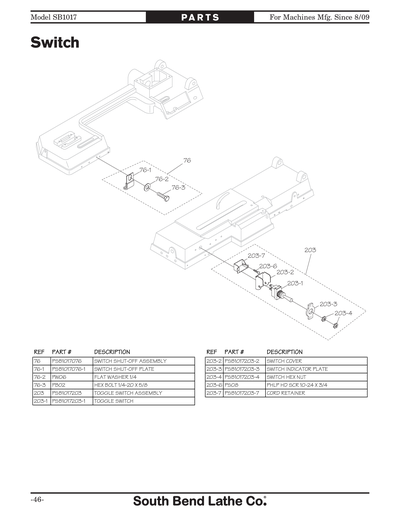

TOGGLE SWITCH ASSEMBLY
Item is no longer available
Price
N/A
PSB1017203-1
TOGGLE SWITCH
Item is no longer available
Price
N/A
PSB1017203-2
SWITCH COVER
Item is no longer available
Price
N/A
PSB1017203-3
SWITCH INDICATOR PLATE
Item is no longer available
Price
N/A
PSB1017203-4
SWITCH HEX NUT
Item is no longer available
Price
N/A
PSB1017203-6
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
PSB1017203-7
CORD RETAINER
Item is no longer available
Price
N/A
P
LOCK PIN
P
LOCK PIN ASSEMBLY
PSB101721-001
*discd*motor,fan
Item is no longer available
Price
N/A
PSB1017212
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
PSB1017214
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
P

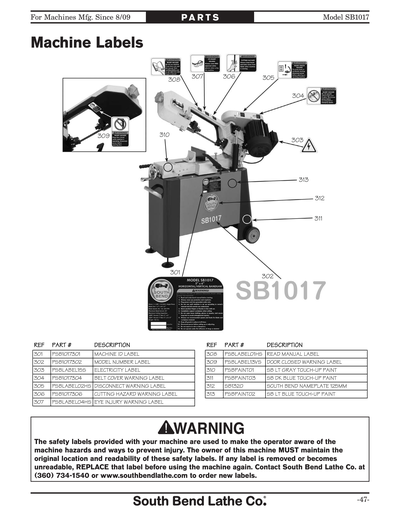

MACHINE ID LABEL
PSB1017302
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
PSB1017303
ELECTRICITY LABEL 0.5
Price
N/A
P
BELT COVER WARNING LABEL
PSB1017305
DISCONNECT POWER LABEL 2.5 X 1.5
Price
N/A
P
CUTTING HAZARD WARNING LABEL
PSB1017307
SAFETY GLASSES LABEL 2.5 X 1.5
Price
N/A
PSB1017308
READ MANUAL LABEL 2.5 X 1.5
Price
N/A
PSB1017309
KEEP DOOR CLOSED LABEL 1.5 X 2.5
Price
N/A
PSB101731-001
*discd*gun Handle, W/valve & Trigger
Item is no longer available
Price
N/A
PSB1017310
SB GRAY TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1017311
SB DK BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1017312
Nameplate 125mm
Price
N/A
PSB1017313
SB LT BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
PSB101732-001
*DISCD*TRIGGER,GUN
Item is no longer available
Price
N/A
PSB101734-001
*DISCD*NOZZLE,GUN 13/64"
Item is no longer available
Price
N/A
PSB101735-001
*discd*nozzle,gun 1/4
Item is no longer available
Price
N/A
PSB101736-001
*DISCD*NOZZLE,GUN 5/16
Item is no longer available
Price
N/A
PSB101737-001
*DISCD*SUCTION HD W/NOZ & AIR JET
Item is no longer available
Price
N/A
PSB101738-001
*DISCD*GUN AIR JET 5/64
Item is no longer available
Price
N/A
PSB101739-001
*DISCD*GUN,BLAST, AIR JET 1/8" I.D.
Item is no longer available
Price
N/A
PSB101740-001
*DISCD*GUN,AIR JET 5/32
Item is no longer available
Price
N/A
PSB1017401
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
PSB1017402
Now: PW03
FLAT WASHER #10
Price
N/A
P
HYDRAULIC CYLINDER ASSEMBLY
PSB1017404
CYLINDER PIVOT ROD
Item is no longer available
Price
N/A
P
CYLINDER BRACKET CAP SCREW
P
CYLINDER BRACKET
PSB101741-001
*DISCD*WASHER F-10
Item is no longer available
Price
N/A
PSB1017410
Now: PLW02
LOCK WASHER 1/4
Price
N/A
PSB1017411
Now: PB31
HEX BOLT 1/4-20 X 1
Price
N/A
PSB1017412
Now: PW02
FLAT WASHER 3/8
Price
N/A
PSB101756-001
*DISCD*SPEED INDICATOR
Item is no longer available
Price
N/A
PSB101757-001
*DISCD*FURNACE PIPE ELBOW
Item is no longer available
Price
N/A
PSB101758-001
*DISCD*FURNACE PIPE
Item is no longer available
Price
N/A
PSB101759-001
*DISCD*ELBOW,FLEXIBLE 6" GALVANIZED 26 G
Item is no longer available
Price
N/A
PSB101761-001
*DISCD*PARTS,COUNTER
Item is no longer available
Price
N/A
PSB101780-001
*DISCD*BLOCK-ADHESIVE
Item is no longer available
Price
N/A
PSB101781-001
*DISCD*GUN SHUT-OFF
Item is no longer available
Price
N/A
PSB101797-001
*DISCD*CAP,MANIFOLD 3"
Item is no longer available
Price
N/A
PSB101799-001
*DISCD*GATE,BLAST 6"
Item is no longer available
Price
N/A
PSB101799-003
*DISCD*FURNACE PIPE DOOR
Item is no longer available
Price
N/A
P
MANUAL FOR SB1017 03/10
