Parts for SB1029 - Surface Grinder 6" x 18"

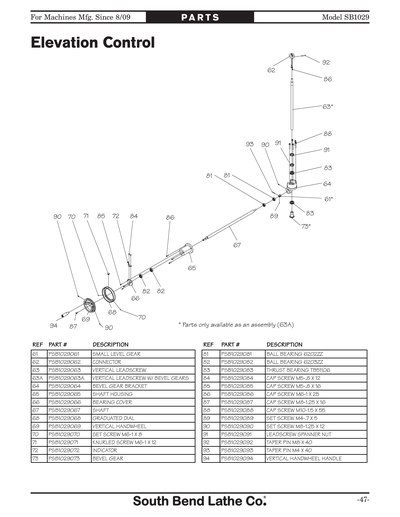

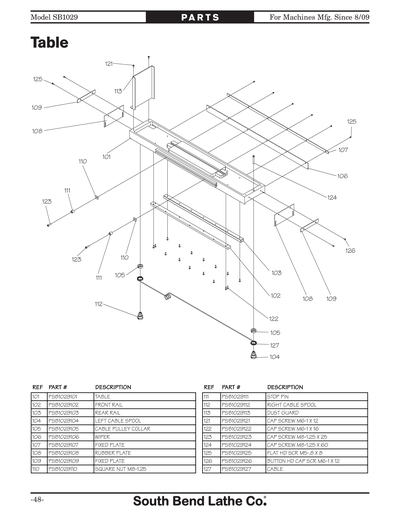

Part Diagram for SB1029

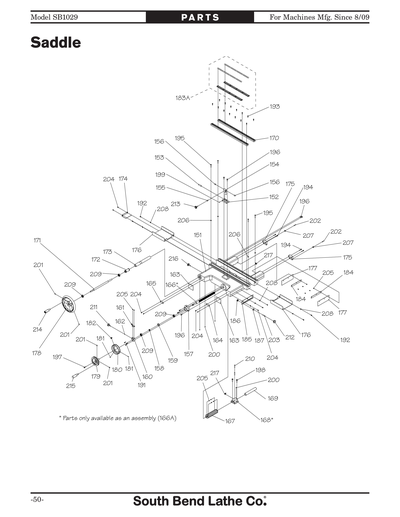

Part Diagram for SB1029

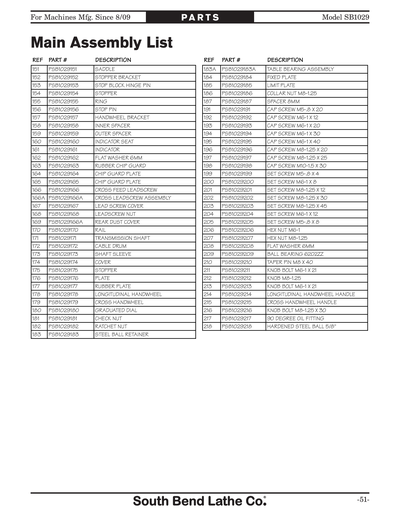

Part Diagram for SB1029

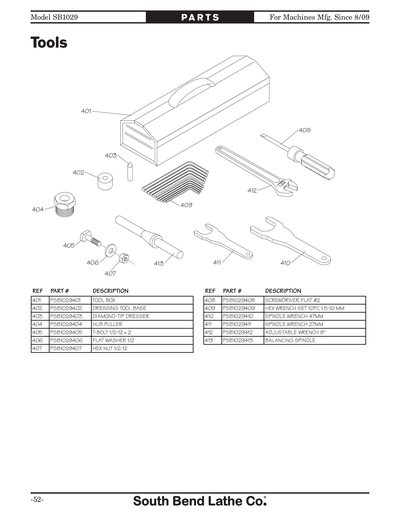

Part Diagram for SB1029
Part Diagram for SB1029

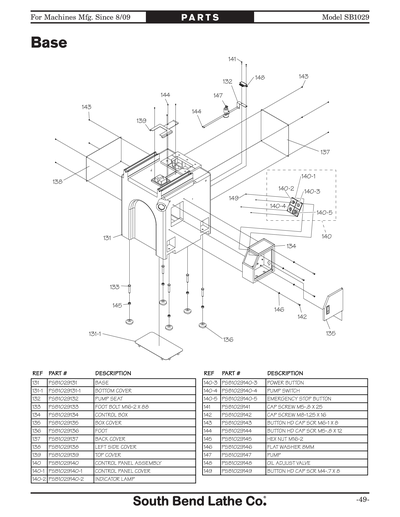

Part Diagram for SB1029

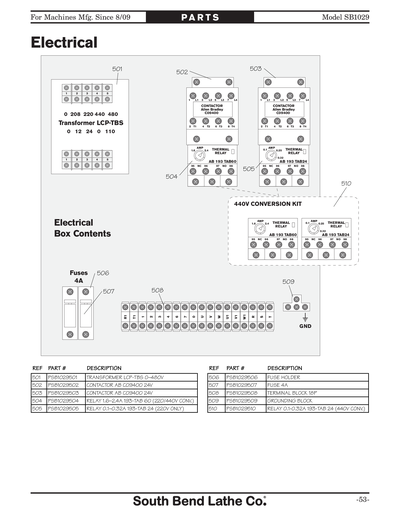

Part Diagram for SB1029

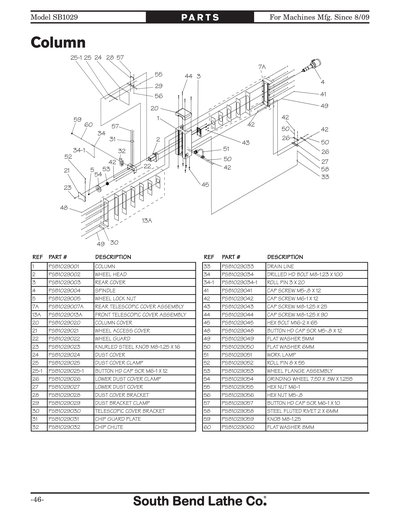

Part Diagram for SB1029
Part Diagram for SB1029
Part Diagram for SB1029
Part Diagram for SB1029
Part Diagram for SB1029
Part Diagram for SB1029
Part Diagram for SB1029
Part Diagram for SB1029
Part Diagram for SB1029
Part Diagram for SB1029
Part Diagram for SB1029
Part Diagram for SB1029
Part Diagram for SB1029

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
PSB1029001
COLUMN
Item is no longer available
Price
N/A
P
Price
$1,525.10
PSB1029003
REAR COVER
Item is no longer available
Price
N/A
P
Price
$7,637.80
PSB10290051
VERTICAL LEADSCREW W/BEVEL GEARS
Price
N/A
PSB10290053
VERTICAL LEADSCREW W/BEVEL GEARS
Price
N/A
P
VERTICAL LEADSCREW W/LEVEL GEARS
Price
$732.75
PSB10290063
VERTICAL LEADSCREW W/BEVEL GEARS
Price
N/A
PSB1029007
REAR TELESCOPIC COVER ASSEMBLY
Price
N/A
P
REAR TELESCOPIC COVER ASSEMBLY
Price
$678.95
PSB1029008
REAR TELESCOPIC COVER ASSEMBLY
Price
N/A
PSB1029009
REAR TELESCOPIC COVER ASSEMBLY
Price
N/A
PSB1029010
REAR TELESCOPIC COVER ASSEMBLY
Price
N/A
PSB1029011
REAR TELESCOPIC COVER ASSEMBLY
Price
N/A
PSB1029012
REAR TELESCOPIC COVER ASSEMBLY
Price
N/A
PSB1029013
FRONT TELESCOPIC COVER ASSEMBLY
Price
N/A
P
FRONT TELESCOPIC COVER ASSEMBLY
Price
$515.05
PSB1029014
FRONT TELESCOPIC COVER ASSEMBLY
Price
N/A
PSB1029015
FRONT TELESCOPIC COVER ASSEMBLY
Price
N/A
PSB10290156
CROSS LEADSCREW ASSEMBLY
Price
N/A
P
CROSS LEADSCREW ASSEMBLY
Price
$795.55
PSB1029016
FRONT TELESCOPIC COVER ASSEMBLY
Price
N/A
PSB1029017
FRONT TELESCOPIC COVER ASSEMBLY
Price
N/A
PSB1029018
FRONT TELESCOPIC COVER ASSEMBLY
Price
N/A
PSB1029019
FRONT TELESCOPIC COVER ASSEMBLY
Price
N/A
PSB1029020
COLUMN COVER
Item is no longer available
Price
N/A
P
WHEEL ACCESS COVER W/GUARD
Price
$426.60
PSB1029023
KNURLED STEEL KNOB M8-1.25 X 16
Item is no longer available
Price
N/A
PSB1029024
DUST COVER
Item is no longer available
Price
N/A
PSB1029025
DUST COVER CLAMP
Item is no longer available
Price
N/A
PSB1029025-1
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
PSB1029026
REAR TELESCOPIC COVER ASSEMBLY
Price
N/A
PSB1029027
LOWER DUST COVER
Item is no longer available
Price
N/A
PSB1029030
FRONT TELESCOPIC COVER ASSEMBLY
Price
N/A
PSB1029031
CHIP GUARD PLATE
Item is no longer available
Price
N/A
P
Price
$301.65
PSB1029033
DRAIN LINE
Item is no longer available
Price
N/A
PSB1029034
DRILLED HD BOLT M8-1.23 X 100
Item is no longer available
Price
N/A
PSB1029034-1
ROLL PIN 3 X 20
Price
N/A
PSB1029041
CAP SCREW M5-.8 X 12
Price
N/A
PSB1029042
CAP SCREW M6-1 X 12
Price
N/A
PSB1029043
CAP SCREW M8-1.25 X 25
Price
N/A
PSB1029044
CAP SCREW M8-1.25 X 90
Price
N/A
PSB1029045
HEX BOLT M16-2 X 65
Item is no longer available
Price
N/A
PSB1029048
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
PSB1029049
FLAT WASHER 5MM
Price
N/A
PSB1029050
FLAT WASHER 6MM
Price
N/A
PSB1029051
WORK LAMP
Item is no longer available
Price
N/A
PSB1029052
ROLL PIN 8 X 55
Price
N/A
P
Price
$142.50
P
GRINDING WHEEL 7.5D X .5W X 1.25B
Price
$142.50
PSB1029055
HEX NUT M6-1
Price
N/A
PSB1029056
HEX NUT M5-.8
Price
N/A
PSB1029057
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
PSB1029058
RIVET 2 X 6MM NAMEPLATE, STEEL
Price
N/A
PSB1029059
KNOB M8-1.25
Item is no longer available
Price
N/A
PSB1029060
FLAT WASHER 8MM
Price
N/A
PSB1029061
VERTICAL LEADSCREW W/BEVEL GEARS
Price
N/A
PSB1029062
CONNECTOR
Item is no longer available
Price
N/A
PSB1029063
VERTICAL LEADSCREW W/BEVEL GEARS
Price
N/A
P
VERTICAL LEADSCREW W/BEVEL GEARS
Price
$1,056.00
PSB1029064
BEVEL GEAR BRACKET
Item is no longer available
Price
N/A
PSB1029065
SHAFT HOUSING
Item is no longer available
Price
N/A
PSB1029066
BEARING COVER
Item is no longer available
Price
N/A
PSB1029067
SHAFT
Item is no longer available
Price
N/A
PSB1029068
VERTICAL HANDWHEEL W/ DIAL
Price
N/A
P
VERTICAL HANDWHEEL W/ DIAL
Price
$526.25
PSB1029070
SET SCREW M6-1 X 8
Price
N/A
PSB1029071
VERTICAL HANDWHEEL W/ DIAL
Price
N/A
P
Price
$51.70
PSB1029073
VERTICAL LEADSCREW W/BEVEL GEARS
Price
N/A
PSB1029081
BALL BEARING 6202ZZ
Price
N/A
PSB1029082
BALL BEARING 6203VV NSK
Price
N/A
PSB1029083
THRUST BEARING 51106
Price
N/A
PSB1029084
CAP SCREW M5-.8 X 12
Price
N/A
PSB1029085
CAP SCREW M5-.8 X 16
Price
N/A
PSB1029086
CAP SCREW M6-1 X 25
Price
N/A
PSB1029087
CAP SCREW M8-1.25 X 16
Price
N/A
PSB1029088
CAP SCREW M10-1.5 X 55
Price
N/A
PSB1029089
SET SCREW M4-.7 X 5
Price
N/A
PSB1029090
SET SCREW M8-1.25 X 12
Price
N/A
PSB1029091
LEADSCREW SPANNER NUT
Item is no longer available
Price
N/A
PSB1029092
TAPER PIN M8 X 40
Item is no longer available
Price
N/A
PSB1029093
TAPER PIN M4 X 40
Item is no longer available
Price
N/A
PSB1029094
VERTICAL HANDWHEEL HANDLE
Item is no longer available
Price
N/A
P
Price
$3,419.40
PSB1029102
RAILS FRONT AND REAR
Price
N/A
P
Price
$1,080.75
PSB1029103
RAILS FRONT AND REAR
Price
N/A
P
Price
$107.80
PSB1029105
CABLE PULLEY COLLAR
Item is no longer available
Price
N/A
PSB1029106
WIPER
Item is no longer available
Price
N/A
PSB1029107
FIXED PLATE
Item is no longer available
Price
N/A
PSB1029108
RUBBER PLATE
Item is no longer available
Price
N/A
PSB1029109
FIXED PLATE
Item is no longer available
Price
N/A
PSB1029110
SQUARE NUT M8-1.25
Price
N/A
PSB1029111
STOP PIN
Item is no longer available
Price
N/A
P
Price
$107.80
PSB1029113
DUST GUARD
Item is no longer available
Price
N/A
PSB1029117
CABLE
Price
N/A
PSB1029121
CAP SCREW M6-1 X 12
Price
N/A
PSB1029122
CAP SCREW M6-1 X 16
Price
N/A
PSB1029123
CAP SCREW M8-1.25 X 25
Price
N/A
PSB1029124
CAP SCREW M8-1.25 X 60
Price
N/A
PSB1029125
FLAT HD SCR M5-.8 X 8
Price
N/A
PSB1029126
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
P
Price
$176.95
PSB1029131
BASE
Item is no longer available
Price
N/A
PSB1029131-1
BOTTOM COVER
Item is no longer available
Price
N/A
P
Price
$93.00
PSB1029133
FOOT BOLT M16-2 X 88
Item is no longer available
Price
N/A
PSB1029134
CONTROL BOX
Item is no longer available
Price
N/A
P
Price
$53.15
PSB1029137
BACK COVER
Item is no longer available
Price
N/A
PSB1029138
LEFT SIDE COVER
Item is no longer available
Price
N/A
PSB1029139
TOP COVER
Item is no longer available
Price
N/A
PSB1029140
CONTROL PANEL ASSEMBLY
Item is no longer available
Price
N/A
PSB1029140-1
CONTROL PANEL COVER
Item is no longer available
Price
N/A
PSB1029140-2
POWER INDICATOR LIGHT AB 800FD P7N3 22MM
Price
N/A
PSB1029140-3
POWER BUTTON
Item is no longer available
Price
N/A
P
Price
$207.15
P
Price
$320.65
PSB1029141
CAP SCREW M5-.8 X 25
Price
N/A
PSB1029142
CAP SCREW M8-1.25 X 16
Price
N/A
PSB1029143
BUTTON HD CAP SCR M6-1 X 8
Price
N/A
PSB1029144
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
PSB1029145
HEX NUT M16-2
Price
N/A
PSB1029146
FLAT WASHER 8MM
Price
N/A
P
Price
$483.00
P
Price
$263.90
PSB1029149
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
PSB1029151
SADDLE
Item is no longer available
Price
N/A
PSB1029152
STOPPER BRACKET
Item is no longer available
Price
N/A
PSB1029153
STOP BLOCK HINGE PIN
Item is no longer available
Price
N/A
PSB1029154
STOPPER
Item is no longer available
Price
N/A
PSB1029155
RING
Item is no longer available
Price
N/A
PSB1029156
STOP PIN
Item is no longer available
Price
N/A
P
Price
$211.05
PSB1029158
INNER SPACER
Item is no longer available
Price
N/A
PSB1029159
OUTER SPACER
Item is no longer available
Price
N/A
PSB1029160
INDICATOR SEAT
Item is no longer available
Price
N/A
PSB1029161
INDICATOR
Item is no longer available
Price
N/A
PSB1029162
FLAT WASHER 6MM
Price
N/A
PSB1029163
RUBBER CHIP GUARD
Item is no longer available
Price
N/A
P
Price
$65.25
PSB1029165
CHIP GUARD PLATE
Price
N/A
PSB1029166
CROSS LEADSCREW ASSEMBLY
Price
N/A
P
CROSS LEADSCREW ASSEMBLY
Price
$1,133.85
P
Price
$121.10
PSB1029168
CROSS LEADSCREW ASSEMBLY
Price
N/A
PSB1029169
REAR DUST COVER
Item is no longer available
Price
N/A
P
Price
$825.70
PSB1029171
TRANSMISSION SHAFT
Item is no longer available
Price
N/A
PSB1029172
CABLE DRUM
Item is no longer available
Price
N/A
PSB1029173
SHAFT SLEEVE
Item is no longer available
Price
N/A
PSB1029173A
TABLE BEARING ASSEMBLY
Price
N/A
PSB1029174
COVER
Item is no longer available
Price
N/A
PSB1029175
STOPPER
Item is no longer available
Price
N/A
PSB1029176
PLATE
Item is no longer available
Price
N/A
PSB1029177
RUBBER PLATE
Item is no longer available
Price
N/A
PSB1029178
LONGITUDINAL HANDWHEEL
Item is no longer available
Price
N/A
P
Price
$282.60
PSB1029183
TABLE BEARING ASSEMBLY
Price
N/A
P
Price
$369.50
PSB1029184
FIXED PLATE
Item is no longer available
Price
N/A
PSB1029185
LIMIT PLATE
Item is no longer available
Price
N/A
PSB1029186
COLLAR NUT M8-1.25
Item is no longer available
Price
N/A
PSB1029187
SPACER 8MM
Item is no longer available
Price
N/A
PSB1029191
CAP SCREW M5-.8 X 20
Price
N/A
PSB1029192
CAP SCREW M6-1 X 12
Price
N/A
PSB1029193
CAP SCREW M6-1 X 20
Price
N/A
PSB1029194
CAP SCREW M6-1 X 30
Price
N/A
PSB1029195
CAP SCREW M6-1 X 40
Price
N/A
PSB1029196
CAP SCREW M8-1.25 X 20
Price
N/A
PSB1029197
CAP SCREW M8-1.25 X 25
Price
N/A
PSB1029198
CAP SCREW M10-1.5 X 30
Price
N/A
PSB1029199
SET SCREW M5-.8 X 4
Item is no longer available
Price
N/A
PSB1029200
SET SCREW M6-1 X 8
Price
N/A
PSB1029201
SET SCREW M8-1.25 X 12
Price
N/A
PSB1029202
SET SCREW M8-1.25 X 30
Price
N/A
PSB1029203
SET SCREW M8-1.25 X 45
Price
N/A
PSB1029204
SET SCREW M6-1 X 12
Price
N/A
PSB1029205
SET SCREW M5-.8 X 8
Price
N/A
PSB1029206
HEX NUT M6-1
Price
N/A
PSB1029207
HEX NUT M8-1.25
Price
N/A
PSB1029208
FLAT WASHER 6MM
Price
N/A
PSB1029209
BALL BEARING 6202ZZ
Price
N/A
PSB1029210
TAPER PIN M8 X 40
Item is no longer available
Price
N/A
P
Price
$21.50
PSB1029212
KNOB M8-1.25
Item is no longer available
Price
N/A
PSB1029213
KNOB BOLT M6-1 X 21
Price
N/A
PSB1029214
LONGITUDINAL HANDWHEEL HANDLE
Item is no longer available
Price
N/A
P
Price
$25.40
PSB1029216
KNOB BOLT M8-1.25 X 30
Item is no longer available
Price
N/A
PSB1029217
OIL FITTING 90 DEGREE
Item is no longer available
Price
N/A
PSB1029218
TABLE BEARING ASSEMBLY
Price
N/A
P
Price
$16.40

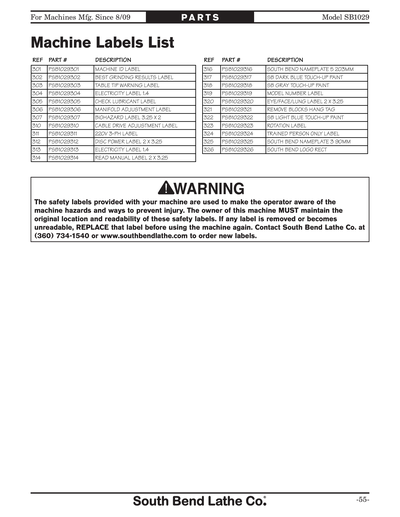

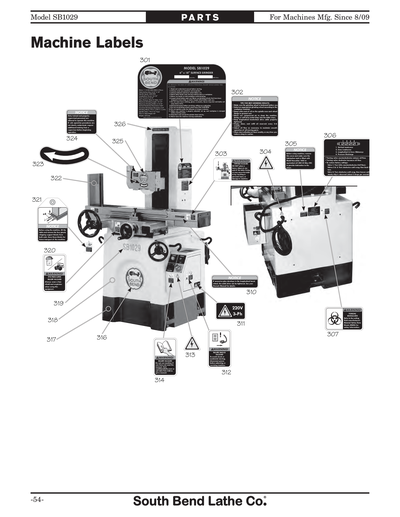

PSB1029302
BEST GRINDING RESULTS LABEL
Item is no longer available
Price
N/A
PSB1029303
*DISCD*TABLE TIP LABEL
Price
N/A
PSB1029304
ELECTRICITY LABEL 1.4
Price
N/A
PSB1029305
CHECK LUBRICANT LABEL
Item is no longer available
Price
N/A
PSB1029306
MANIFOLD ADJUSTMENT LABEL
Item is no longer available
Price
N/A
PSB1029307
BIOHAZARD LABEL 3.25 X 2
Price
N/A
PSB1029308
*DISCD*RECEPTACLE WARNING LABEL
Item is no longer available
Price
N/A
PSB1029309
*DISCD*RECEPTACLE RATING LABEL
Item is no longer available
Price
N/A
PSB1029310
CABLE DRIVE ADJUSTMENT LABEL
Item is no longer available
Price
N/A
PSB1029311
220V 3PH LABEL
Item is no longer available
Price
N/A
PSB1029312
DISCONNECT POWER LABEL 2 X 3.25
Price
N/A
PSB1029313
ELECTRICITY LABEL 1.4
Price
N/A
PSB1029314
READ MANUAL LABEL 2 X 3.25
Price
N/A
PSB1029315
*DISCD*CONTROL PANEL LABEL
Item is no longer available
Price
N/A
PSB1029316
Nameplate 203mm
Price
N/A
PSB1029317
SB DK BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1029318
SB GRAY TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1029319
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
PSB1029320
EYE/FACE/LUNG LABEL 2 X 3.25
Price
N/A
PSB1029321
REMOVE BLOCKS HANG TAG
Item is no longer available
Price
N/A
PSB1029322
SB LT BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1029323
ROTATION LABEL
Item is no longer available
Price
N/A
PSB1029324
TRAINED PERSONNEL NOTICE LABEL
Price
N/A
PSB1029325
Nameplate 90mm
Price
N/A
PSB1029326
SOUTH BEND LOGO RECT
Item is no longer available
Price
N/A
PSB1029401
TOOL BOX
Item is no longer available
Price
N/A
PSB1029402
DRESSING TOOL BASE
Item is no longer available
Price
N/A
PSB1029404
WHEEL FLANGE ASSEMBLY
Price
N/A
PSB1029405
T-BOLT 1/2-12 X 2
Item is no longer available
Price
N/A
PSB1029406
FLAT WASHER 1/2
Price
N/A
PSB1029407
HEX NUT 1/2-12
Price
N/A
PSB1029408
SCREWDRIVER FLAT #2
Price
N/A
PSB1029409
HEX WRENCH 1.5-10MM 10PC SET
Price
N/A
PSB1029410
SPINDLE WRENCH 47MM
Item is no longer available
Price
N/A
P
Price
$117.15
PSB1029413
BALANCING SPINDLE
Item is no longer available
Price
N/A
P
TRANSFORMER 200VA 12/110-12/110V
Price
$298.65
PSB1029502
CONTACTOR AB C09400 24V
Price
N/A
PSB1029503
CONTACTOR AB C09400 24V
Price
N/A
PSB1029504
THERMAL RELAY AB 193 TAB60 1.6-2.4A
Item is no longer available
Price
N/A
PSB1029505
THERMAL RELAY AB 193 TAB24 0.1-0.32A
Item is no longer available
Price
N/A
PSB1029506
FUSE HOLDER
Item is no longer available
Price
N/A
P
Price
$98.45
PSB1029508
TERMINAL BLOCK 18P
Item is no longer available
Price
N/A
PSB1029509
GROUNDING BLOCK
Item is no longer available
Price
N/A
PSB1029510
440V CONVERSION KIT
Item is no longer available
Price
N/A
P
OWNERS MANUAL FOR SB1029 12/09
Price
$45.75
